Quick Details
-
D/C:
-
1
-
Place of Origin:
-
Guangdong, China
-
Application:
-
Musical Instruments
-
Brand:
-
RS16
-
Features:
-
on-off
-
Size / Dimension:
-
16mm
-
Color:
-
black
-
Operating Temperature:
-
280
-
Mounting Type:
-
PCB
-
Switch Function:
-
non shorting
-
Current Rating (Amps):
-
0.3A
-
Voltage Rating - AC:
-
16v
-
Voltage Rating:
-
250V
-
Rotation torque:
-
30±15mN.cm
-
Changeover angle:
-
45°
-
Power rating:
-
AC 125V 0.3A,AC 250V 0.6A
-
Contact resistance:
-
25mΩ max.
-
Storage temperature range:
-
-20℃~+80℃
-
Insulation resistance:
-
100 MΩ min. At D.C 500 volts
-
Life test:
-
10000cycles
-
Timing:
-
Non-shorting/ Shorting
-
Operating temperature range::
-
-10℃~+70℃
Quick Details
-
Brand Name:
-
HongYuan
-
Model Number:
-
RS16
-
Type:
-
Switch Rotary
-
D/C:
-
1
-
Place of Origin:
-
Guangdong, China
-
Application:
-
Musical Instruments
-
Brand:
-
RS16
-
Features:
-
on-off
-
Size / Dimension:
-
16mm
-
Color:
-
black
-
Operating Temperature:
-
280
-
Mounting Type:
-
PCB
-
Switch Function:
-
non shorting
-
Current Rating (Amps):
-
0.3A
-
Voltage Rating - AC:
-
16v
-
Voltage Rating:
-
250V
-
Rotation torque:
-
30±15mN.cm
-
Changeover angle:
-
45°
-
Power rating:
-
AC 125V 0.3A,AC 250V 0.6A
-
Contact resistance:
-
25mΩ max.
-
Storage temperature range:
-
-20℃~+80℃
-
Insulation resistance:
-
100 MΩ min. At D.C 500 volts
-
Life test:
-
10000cycles
-
Timing:
-
Non-shorting/ Shorting
-
Operating temperature range::
-
-10℃~+70℃

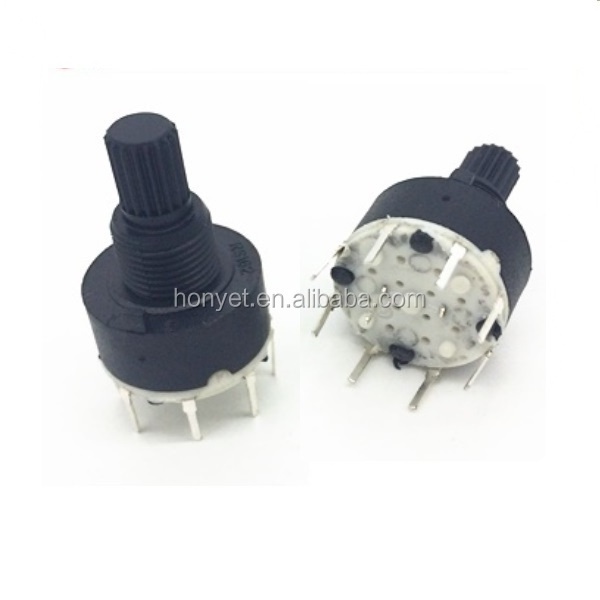

2P4T 4 position rotary switch Product Description
