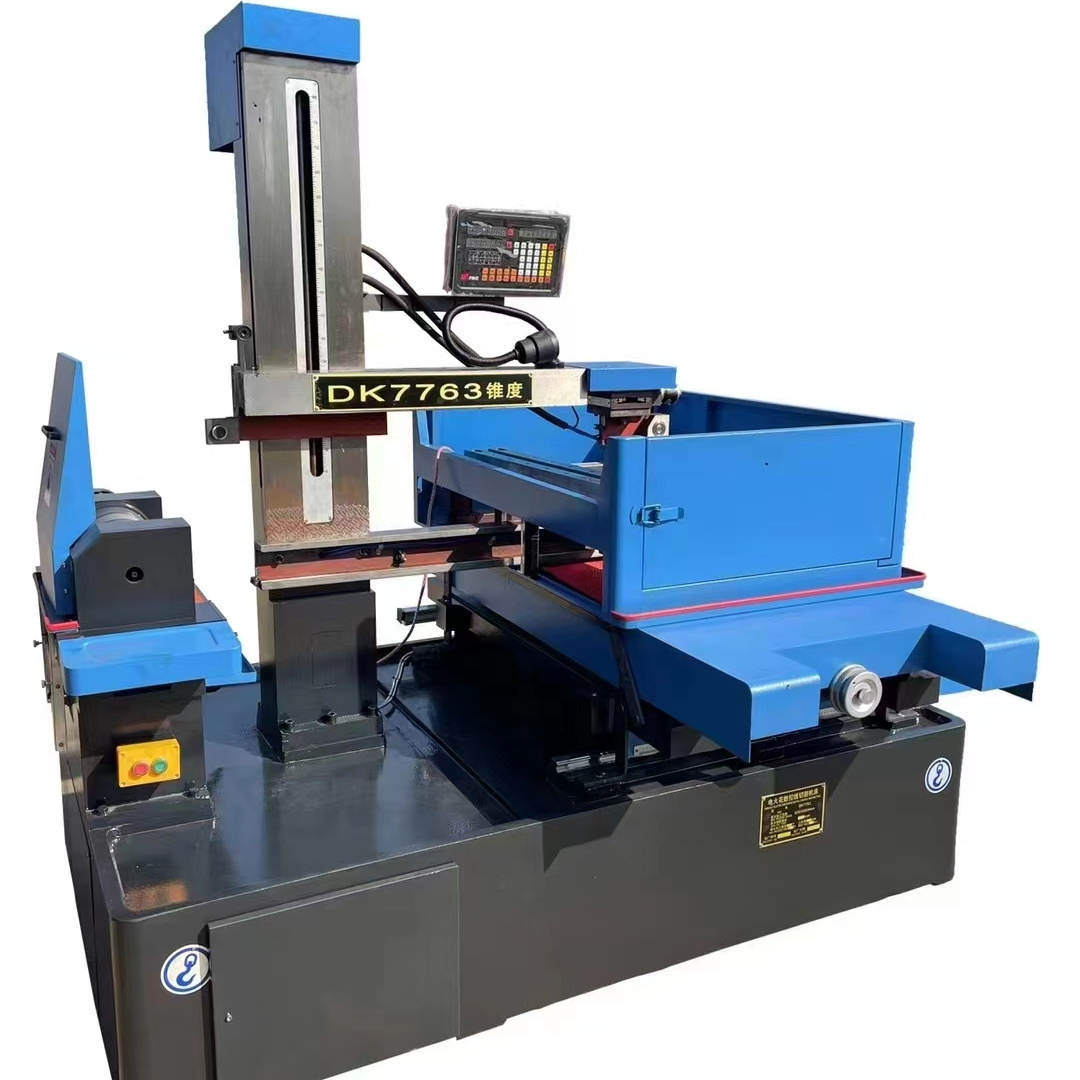

DK7763 desktop wire edm machine high speed computerized automatic wire cutting machine price

DK7763 desktop wire edm machine high speed computerized automatic wire cutting machine price

FOB Reference Price: Get Latest Price

≥1 Sets

US $8600

≥10 Sets

US $8530

≥20 Sets

US $8430

≥50 Sets

US $8130

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Rowdai

Voltage:: 380 V, 50Hz

Dimension(L*W*H):: 2100*1940*1780mm

Weight (KG):: 3000

Power (kW):: 1

worktable size(mm):: 1140*750

stroke of X axis:: ≥630

Surface roughness(μm):: 1.6-3.2

Wire diamater(mm):: 0.15-0.20

stroke of Y axis:: ≥800mm

Spindle up and down moving distance:: 100mm~260/600mm

Precision:: 0.010/0.015mm

Quick Details

Marketing Type:: New Product 2023

Place of Origin:: Henan

Year:: 2023

Brand Name:: Rowdai

Voltage:: 380 V, 50Hz

Dimension(L*W*H):: 2100*1940*1780mm

Weight (KG):: 3000

Power (kW):: 1

worktable size(mm):: 1140*750

stroke of X axis:: ≥630

Surface roughness(μm):: 1.6-3.2

Wire diamater(mm):: 0.15-0.20

stroke of Y axis:: ≥800mm

Spindle up and down moving distance:: 100mm~260/600mm

Precision:: 0.010/0.015mm

DK7735 high speed wire cutting machine

During WEDM, a pulse discharge is performed between the electrode wire and the workpiece. When an electric pulse comes, a spark discharge is generated between the electrode wire and the workpiece. In the center of the discharge channel, the temperature can reach above 10,000°C instantaneously. The high temperature melts the metal of the workpiece, thereby achieving the purpose of cutting metal. Factory supply High speed Computer control Automatic EDM machine DK7720 DK7725 DK7740 DK7745 CNC wire cutting machine

High-grade machine adopts precision linear guide rail, and high column optionally equips electric lifting roller span
adjustment. Swinging big taper series machine tools are equipped with wire electrode wire agencies, and produce semi-hermetic
environmental protection machine tools. Molybdenum wire diameter range is from 0.12-0.18mm, maximum processing speed is more than
120 mm² / min, the best surface roughness ≤Ra2.5um(single cut)Ra1.6mm(multicut).

DK7740

Dk7745

DK7755

Model	Worktable size (mm)	Worktable travel (mm)	Max. cutting thickness (mm)	Processing taper	Max. load weight (kg)	Main machine weight(kg)
DK7720	250x320	200x250	200	6°/80mm	100	800
DK7725	270x420	250x320	400	6°/80mm	200	1200
DK7732	380x600	320x400	400	6°/80mm	300	140
DK7740	410x710	400x500	400	6°/80mm	450	1600
DK7745	500x750	450x550	400	6°/80mm	450	1650
DK7755	596x880	550x650	500	6°/80mm	800	2500
DK7763	790x1260	630x1000	600	6°/80mm	1000	3500
DK7780	900x1500	800x1200	600	6°/80mm	1500	5500
DK77120	1300x1900	1200x1600	600	6°/80mm	4000	10000

1. who are we?
We are based in Henan, China, start from 2022,sell to Southeast Asia(15.00%),Africa(10.00%),North America(10.00%), Eastern Europe(10.00%),Mid East(10.00%),Domestic Market(5.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),South America(5.00%), Oceania (5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
CNC Lathe,CNC Milling Machine,Metal Cutting Machine,Roll Forming Machine,Machine Tool

4. why should you buy from us not from other suppliers?
Over more than 20 years experience for exporting machines After service is very finished fully Best price for customer from all over the world Technical engineers are very professional

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
