Quick Details
-
Specification:
-
20mm - 200mm
-
Length:
-
4m / 6m
-
Thickness:
-
2.8mm - 33.3mm
-
Standard:
-
DIN8077/8078, ISO15874 Standard
-
Product name:
-

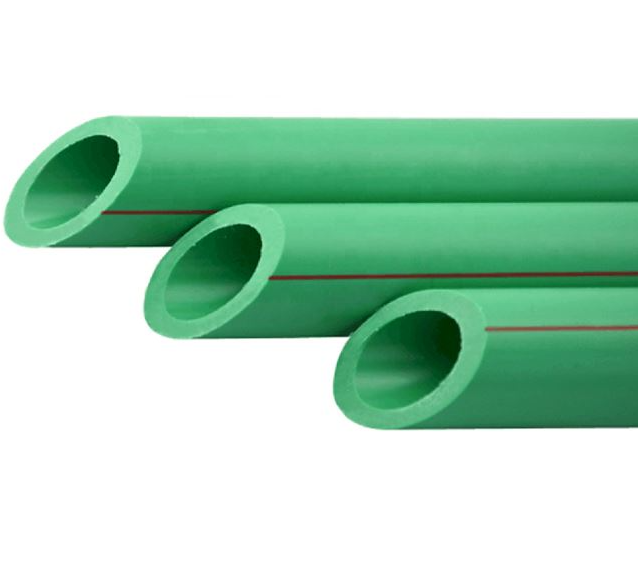

ppr pipes prices Polypropylene ppr pipe popular sizes chart
-
Color:
-
White, Grey, Green, Blue with red line or as required
-
Working pressure1:
-
1.0Mpa 1.6Mpa 2.0Mpa 2.5Mpa
-
Working pressure2:
-
PN10 PN16 PN20 PN25
-
Application:
-
Hot and cold drinking water
-
Feature:
-
Heat stability, corrosion resistant, non-toxic, light weigh
-
Connection:
-
Butt fusion welding or socket fusion joint
-
Package:
-
20' or 40' container
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
OEM
-
Model Number:
-
PPR
-
Specification:
-
20mm - 200mm
-
Length:
-
4m / 6m
-
Thickness:
-
2.8mm - 33.3mm
-
Standard:
-
DIN8077/8078, ISO15874 Standard
-
Product name:
-
ppr pipes prices Polypropylene ppr pipe popular sizes chart
-
Color:
-
White, Grey, Green, Blue with red line or as required
-
Working pressure1:
-
1.0Mpa 1.6Mpa 2.0Mpa 2.5Mpa
-
Working pressure2:
-
PN10 PN16 PN20 PN25
-
Application:
-
Hot and cold drinking water
-
Feature:
-
Heat stability, corrosion resistant, non-toxic, light weigh
-
Connection:
-
Butt fusion welding or socket fusion joint
-
Package:
-
20' or 40' container
PN20 PN25 Poly Propylene PPR fittings pipe prices
Welcome to our Tianjin Dingrunda Group Co., Ltd Alishop!!!
You can enquiry with product diameter, working pressure, quantity ect. Price will be given accordingly.
Working pressure expressive methord: MPa, PN .
Diameter: 20mm – 200mm
Standard: DIN8077/8078, ISO158 74
Materials: Hyosung R200P
Color: White, Grey, Green, Blue, or as client’s requirement.
Fittings offered: Elbow, Tee, Reducer, Coupler, End cap, Stub end, Flanges, Cross and all.
|
working pressure
|
outer diameter*wall thickness(mm)
|
working pressure
|
outer diameter*wall thickness(mm)
|
|
1.25Mpa (PPR sanitary pipe and ppr cold water pipe)
|
20*2.0
|
1.6Mpa (PPR sanitary pipe and ppr cold water pipe)
|
20*2.3
|
|
25*2.3
|
25*2.8
|
||
|
32*2.9
|
32*3.6
|
||
|
40*3.7
|
40*4.5
|
||
|
50*4.6
|
50*5.6
|
||
|
63*5.8
|
63*7.1
|
||
|
75*6.8
|
75*8.4
|
||
|
90*8.2
|
90*10.1
|
||
|
110*10
|
110*12.3
|
||
|
125*11.4
|
125*14
|
||
|
140*12.7
|
140*15.7
|
||
|
160*14.6
|
160*17.9
|
||
|
working pressure
|
outer diameter*wall thickness(mm)
|
working pressure
|
outer diameter*wall thickness(mm)
|
|
2.0Mpa (ppr hot water pipe)
|
20*2.8
|
2.5Mpa (ppr hot water pipe)
|
20*3.4
|
|
25*3.5
|
25*4.2
|
||
|
32*4.4
|
32*5.4
|
||
|
40*5.5
|
40*6.7
|
||
|
50*6.9
|
50*8.3
|
||
|
63*8.6
|
63*10.5
|
||
|
75*10.3
|
75*12.5
|
||
|
90*12.3
|
90*15
|
||
|
110*15.1
|
110*18.3
|
||
|
125*17.1
|
125*20.8
|
||
|
140*19.2
|
140*23.3
|
||
|
160*21.9
|
160*26.6
|
1. Highly hygienic & non-toxic;
2. Light weight & no leakage;
3. Easy installation & handling;
4. No calcification & sedimentation;
5. No bacterial & fungal growth;
6. Heat-preservation and energy-saving;
7. Recyclable—benefit for environment.
As a key type of Construction Material, it is widely used in the following fields:
1. Portable water supply in residential buildings, hospitals, hotels, shipbuilding etc;
2. Pipe networks for rainwater utilization systems, swimming pool facilities, agriculture and horticulture, industry, i.e. transport of aggressive fluids (acids, etc);
3. Heating pipe for residential building.
Q1. Are you trading company or manufacturer ?
A: We are professional manufacturer and welcome to your visit at any time.
Q2. How long is your delivery time?
A: Generally it takes 5-10 days if the goods are in stock,which is depends on your quantity and can be negotiable.
Q3. Do you provide samples ?
A: Yes,of course sample is avaliable and for small quantity we can supply for free.
Q4.What is your terms of payment ?
A: L/C,Western Union,T/T30% in advance ,balance before shippment and so on.
Q5. For pipe fittings, what do you do mainly?
A: For fittings, coupling (socket), elbows, tee, reducer, union, valve, cap some electrofusion fittings and compression fittings.
Q6.Can I have my own Logo on the product?
A: Yes, sure,you just send us your drawing,we'll make logo for you and before production we will confirm with you in advance.
Q7.Can I request to change the method of packaging and transportation?
A: Yes, the packaging and transportation can be made as per your requirements.
