Quick Details
-
Product Name:
-

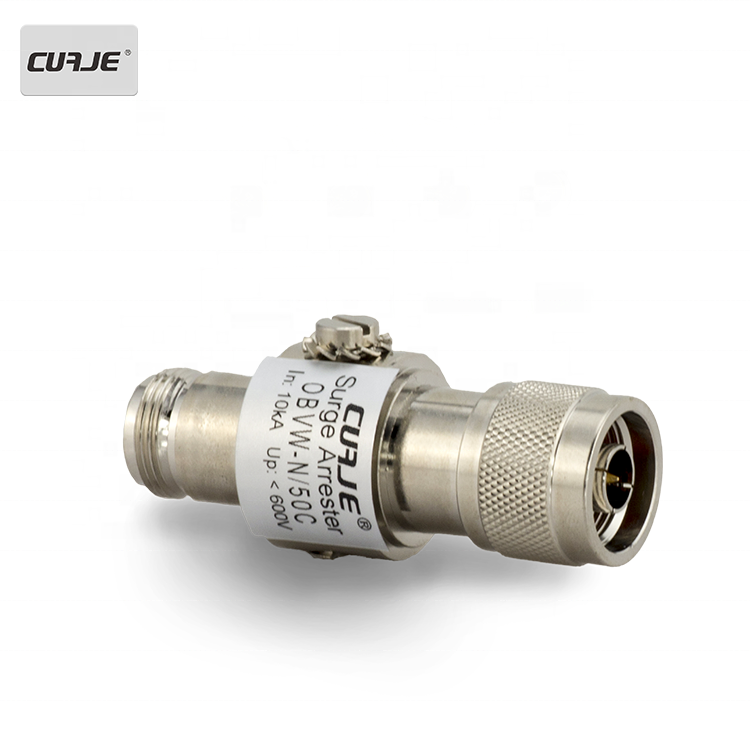

N type Coaxial cable SPD
-
material:
-
stainless steel
-
band width:
-
less than 11GHZ
-
interface:
-
N
-
norminal discharge current in:
-
10KA
-
Color:
-
Gray
-
Weight:
-
112g
-
Warranty:
-
2 Years
-
Package:
-
Carton
-
OEM:
-
YES
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CUAJE
-
Model Number:
-
OBVW-N/50C
-
Product Name:
-
N type Coaxial cable SPD
-
material:
-
stainless steel
-
band width:
-
less than 11GHZ
-
interface:
-
N
-
norminal discharge current in:
-
10KA
-
Color:
-
Gray
-
Weight:
-
112g
-
Warranty:
-
2 Years
-
Package:
-
Carton
-
OEM:
-
YES
antenna arrestor OBVW is the series of devices for discharging transient overvoltages induced in coaxial lines. In accordance with IEC 61643-21. Coaxial format.
Suitable for the protection of radiofrequency transmission and reception equipment. By their nature, they are highly exposed to induced transient overvoltages (surges) associated with meteorological activity.
For BNC, F, N, TNC connectors.
Ideal for the protection of transmission and reception systems such as TV and radio antennas, closed circuit TV (CCTV), alarms, etc.
|
|
OBVW- BNC/75C |
OBVW- BNC/50C |
OBVW- N/75C |
OBVW- N/50C |
OBVW- F/75C |
OBVW- F/50C |
|
Maximum Continuous Operating Voltage Uc (~) |
DC68V / AC130V / AC280V |
|||||
|
Nominal Discharge Current I n (8/20µs)kA |
10 kA |
|||||
|
Maximum discharge current Imax (8/20µs)kA |
20kA |
|||||
|
Maximum peak power (W) |
<300 |
|||||
|
Interface |
BNC |
N |
F |
|||
|
Voltage protection level (Up) |
<600 V |
|||||
|
Bandwidth (MHz) |
0- 3 000 |
|||||
|
Standing wave ratio, VSWR |
≤1.2 |
|||||
|
Insertion Loss |
≤0.1db |
|||||
|
Impedance(Ω) |
75Ω |
50Ω |
75Ω |
50Ω |
75Ω |
50Ω |
