Quick Details
-
Max. Resolution:
-
8 dots/mm(203DPI)
-
Brand Name:
-
Winpal
-
Model Number:
-
WPB200
-
Place of Origin:
-
Guangzhou,China
-
Print command:
-
TSPL,EPL,ZPL,DPL
-
Label length:
-
10 ~ 1778 mm (0.39 " ~ 70 ")
-
Media thickness:
-
0.06~0.25mm
-
Label diameter:
-
127 mm (5")
-
Max.print width:
-
108 mm (4.25")
-
Weight:
-
1.58 KG
-
Dimensions:
-
240(D) x 212(W) x172(H)mm
-
Memory:
-
8MB Flash Memory/ 8MB SDRAM/ Flash memory can be expanded Max.4Gb
-
Paper types:
-
Continuous,gap,black mark, fan-fold and punched hole
-
Application:
-
Supermarket;Medical Care;Warehouse;Post;Catering;Hospital
Quick Details
-
Max Paper Size:
-
20 ~ 118 mm (0.78 " ~ 4.6 ")
-
Black Print Speed:
-
152mm (6")/s
-
Color Print Speed:
-
Null
-
Max. Resolution:
-
8 dots/mm(203DPI)
-
Brand Name:
-
Winpal
-
Model Number:
-
WPB200
-
Place of Origin:
-
Guangzhou,China
-
Print command:
-
TSPL,EPL,ZPL,DPL
-
Label length:
-
10 ~ 1778 mm (0.39 " ~ 70 ")
-
Media thickness:
-
0.06~0.25mm
-
Label diameter:
-
127 mm (5")
-
Max.print width:
-
108 mm (4.25")
-
Weight:
-
1.58 KG
-
Dimensions:
-
240(D) x 212(W) x172(H)mm
-
Memory:
-
8MB Flash Memory/ 8MB SDRAM/ Flash memory can be expanded Max.4Gb
-
Paper types:
-
Continuous,gap,black mark, fan-fold and punched hole
-
Application:
-
Supermarket;Medical Care;Warehouse;Post;Catering;Hospital

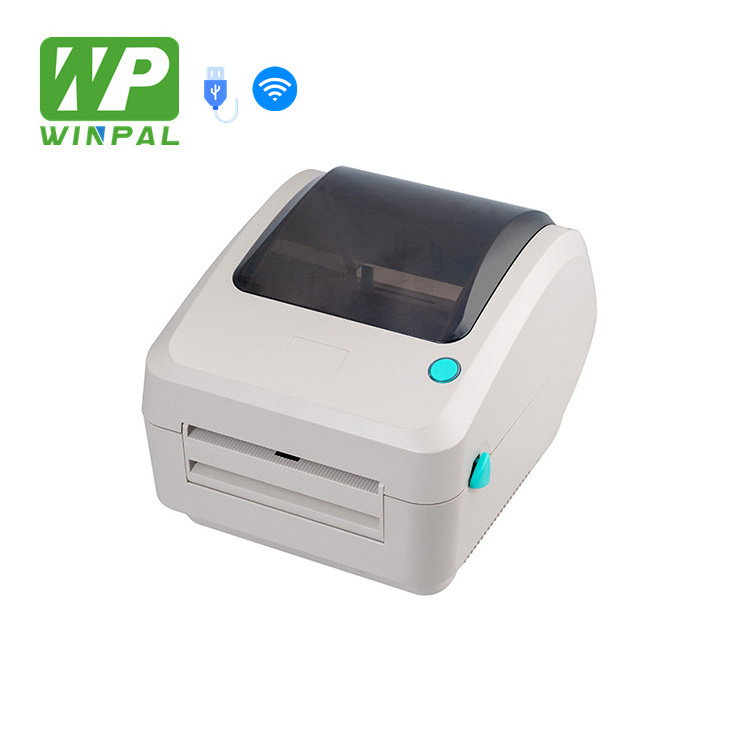

High quality 4 inch shipping label printer 4x6 for shipping labels
Key Feature
•
Media types:Continuous; gap; black mark; fan-fold and punched hole
•
Multiple sensors: black mark;positioning distance;gap sensor
•
With transparent cover,paper status is at a glance
•
Support external paper holder and label box
•
Double motor design, more powerful
| Model | WPB200 |
| Printing | |
| Resolution | 8 dots/mm(203DPI) |
| Printing method | Direct thermal |
| Printing speed | 152 mm (6”)/s |
| Max.print width | 108 mm (4.25”) |
| Media type | Continuous, gap, black mark, fan-fold and punched hole |
| Media width | 20-118mm (0.78”-4.4”) |
| Media thickness | 0.06~0.25mm |
| Label length | 10~1,778mm(0.4''~90'') |
| Label roll capacity | 127 mm (5“) OD (outside wound) |
| Enclosure | Double-walled plastic |
| Physical dimension |
240(D) x 212(W) x172(H)mm
|
| Weight | 1.58 KG |
| Processor | 32-bit RISC CPU |
| Memory |
4MB Flash Memory, 8MB SDRAM, SD card reader for Flash memory expansion, up to 4 GB |
| Interface | USB |
| Internal fonts |
8 alpha-numeric bitmap fonts, Windows fonts are down-loadable from software |
| Barcode Character | |
| Barcode |
1D bar code:Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST 2D bar code:PDF-417, Maxicode, Data Matrix, QR code |
| Font and barcode rotation | 0°,90°,180°,270° |
| Command | TSPL,EPL,ZPL,DPL |
| Environment condition | Operation: 5 ~ 40°C, 25 ~ 85% non-condensing, Storage: -40 ~ 60°C, 10 ~ 90% (non-condensing) |
*Q:WHAT’S YOUR MAIN PRODUCT LINE?
A:Specialized in Receipt printers, Label Printers, Mobile Printers, Bluetooth printers.
*Q:WHAT IS THE WARRANTY FOR YOUR PRINTERS?
A: One year warranty for all our products .
*Q:WHAT about PRINTER DEFECTIVE RATE?
A:Less than 0.3%
*Q:WHAT CAN WE DO IF THE GOODS ARE DAMAGED ?
A:1% of FOC parts are shipped with the goods. If damaged, it can be replaced directly.
*Q:WHAT'S YOUR DELIVERY TERMS ?
A:EX-WORKS, FOB or C&F.
*Q:WHAT’S YOUR LEADING TIME?
A:In case of purchase plan, around 7 days leading time
*Q:WHAT COMMANDS ARE YOUR PRODUCT COMPATIBLE WITH?
A:Thermal printer compatible with ESC\POS. Label printer compatible with TSPL\ EPL\ DPL\ ZPL emulation.
*Q:HOW DO YOU CONTROL PRODUCT QUALITY?
A:We are a company with ISO9001 and o ur products have obtained CCC, CE, FCC, Rohs, BIS certifications.
