03 Folding device
04 color printing unit
05 Embossing unit
06 paper roll stand
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
4000mmX1100mmX1700mm
-
Weight:
-
1200 kg
-
Marketing Type:
-
New Product 2022
-
unit type:
-
JY-F2200
-
production speed:
-
600piece/min
-
nominal voltage:
-
380V
-
rated frequency:
-
50Hz
-
total power:
-
5.5kw
-
boundary dimension:
-
4000mmX1100mmX1700mm
-
weight:
-
1200KG
Quick Details
-
Production Capacity:
-
600piece/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MING YUAN
-
Voltage:
-
380V
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
4000mmX1100mmX1700mm
-
Weight:
-
1200 kg
-
Marketing Type:
-
New Product 2022
-
unit type:
-
JY-F2200
-
production speed:
-
600piece/min
-
nominal voltage:
-
380V
-
rated frequency:
-
50Hz
-
total power:
-
5.5kw
-
boundary dimension:
-
4000mmX1100mmX1700mm
-
weight:
-
1200KG
Products Description
01 Collecting unit
02 Cutting unit

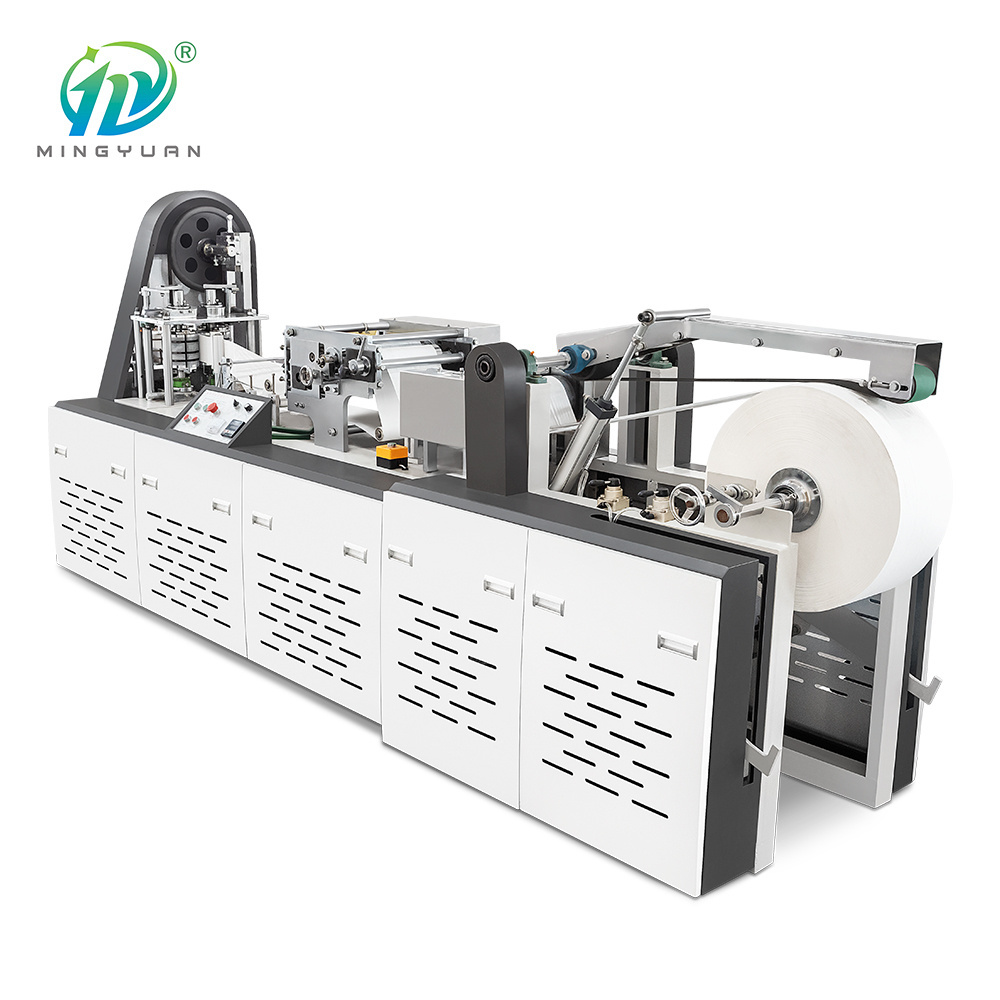

printing, folding and cutting the paper into square or rectangular-shaped napkin. Machine is equipped with color printing unit
which can print various clear and bright patterns and design of logo , high procession ceramic anilox roller, making the water ink
equally spread .it is the ideal equipment for making better quality and high-grade napkins.
|
Machine Model
|
MY-CJ180
|
MY-CJ330
|
|
|
Napkin Specification
|
Finished folding size 180*180mm （or other specification size）
|
Finished folding size 330*330mm
（or other specification size） |
|
|
Speed
|
500-600 pcs/min（with printing speed）
|
700-800 pcs/min (without printing machine )
|
|
|
Weight
|
1100KGS
|
1700KGS
|
|
|
Power Source
|
380V，50 HZ
|
|
|
|
Power Consumption
|
7 KW
|
|
|
|
Raw Material
|
230-410mm
|
|
|
|
Paper Core Diameter
|
76.2mm
|
|
|
|
Raw Paper Maximum Diameter
|
1100mm
|
|
|
|
Band Saw Size：（Thickness x Width x Perimeter）
|
0.6X32X3450mm
|
|
|
|
Folding Type
|
v folding
|
|
|
|
Printing Form
|
flexo printing
|
|
|
|
Printing Ink
|
Water soluble ink
|
|
|
|
Embossed Unit
|
Steel to rubber roller Steel to wool roller
|
|
|
|
Printing Unit
|
one color
|
|
|
|
Band Saw Wheel Diameter
|
360MM
|
|
|
Details Images
Control panel
Simple and easy to operate, equipped with better quality switches and button , All the operation can be finished and controlled in this panel
Electric system
With CHINT and other high-quality brand electrical components, stable and better quality
Raw material stand
Raw paper roll can be put on this stand and paper unwinding by transmission belt
Pattern Embossing unit
Pattern matching paper rolling device, pattern significantly
Color printing device
Adopts flexible printing,the design can be customized design as your requirement, Using professional color priting anilox and
string ink rollers which can the water ink equally spread , the printing logo is clear and bright
string ink rollers which can the water ink equally spread , the printing logo is clear and bright
Folding unit
Folding board with mechanical hand to fold paper shape, and then cutting by bandsaw cutter
Main motor and bandsaw motor
Provide the power for the Transmission belt drive system and bandsaw cutter The equipment is equipped with a wide belt synchronous
conveying device and two control tension devices to ensure the dimensional accuracy of the folded finished product.
conveying device and two control tension devices to ensure the dimensional accuracy of the folded finished product.
Speed regulator
Adjust the unwinding speed of the belt to change the machine speed
After Sales Service
Spare Parts Without Return
Direct Replacement Of
Spare During Warranty Period
Free Shipping Replacement Spare
Be Free Of Spare Parts
Replacement Spare
You just need to pay the freight
Be Free of Spare parts
One To One Video Teaching
We Provide
Operation & Maintenance cd
Certifications
Company Strength
FAQ
Q1. Are you trading company or manufacturer?
A:we are one of the leading manufacturer of the paper cup machine, Plastic lid machine, paper plate machine etc paper product
machinery in China.
Q2. Do you have quality certificate?
A:we have got the ce certificate for our machine.
Q3. What's the delivery time?
A:Around 20~30 days, however, based on order.
Q4. where is your factory location?
A:we are locate in Henghe industrial zone, feiyun street, ruian city, zhejiang province, china. our nearest high way exit is
feiyun, our nearest train station is ruian station, our nearest airport is wenzhou airport.
Q5.How does your factory do regarding quality control?
A:Quality is priority. Our Factory always attach great importance to quality controlling from the very beginning to the very end:
1).Skilful workers care every details in handling the producing and packing processes;
2).Quality Control Department specially responsible for quality checking in each process.
Q6. What terms of payment you usually use?
A:T/T 30% deposit and 70% before machine loading, Western Union, L/C at sight.
