Quick Details
-
Model Number:
-
ESP8266 ModBus TCP WIFI Inching Relay
-
WIFI Relay:
-
ESP8266 relay
Quick Details
-
Contact Load:
-
Low Power
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Taidacent
-
Model Number:
-
ESP8266 ModBus TCP WIFI Inching Relay
-
WIFI Relay:
-
ESP8266 relay

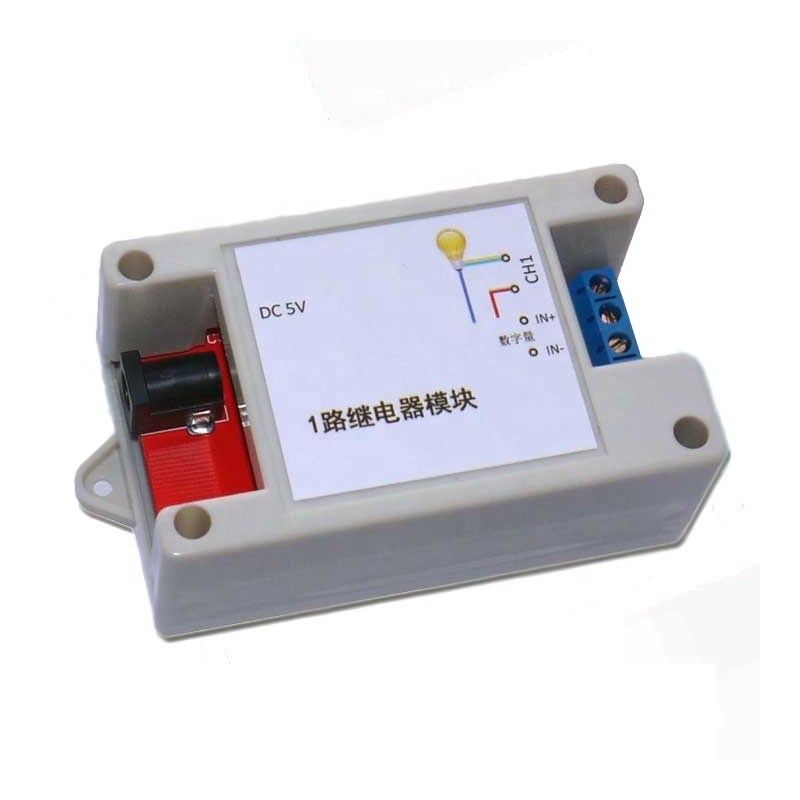

Taidacent DC5-24V 1 Channel ESP8266 WIFI Relay
1 Digital Input
ModBus TCP WIFI Inching Relay Delay Switch with Shell
Product Description
Control the pull-in and release of 1 relay through WIFI (ModBus TCP protocol), support 1-255 seconds delay, jog, and 1 digital input (optocoupler isolation). The module supports ModBus TCP 01, 02, 03, 05, 06, 15 and 16 commands, and can flexibly choose different commands to access the status of relays and inputs. Provide a WIFI configuration tool to modify the module address, WIFI network and other parameters, with the source code of the configuration tool (implemented by DLL call).
Part of the instruction (by default setting id = 1):
Relay pull-in – 00 00 00 00 00 09 01 10 00 00 00 01 02 01 00
Relay release-00 00 00 00 00 09 01 10 00 00 00 01 02 00 00
Relay jog – 00 00 00 00 00 09 01 10 00 00 00 01 02 02 00
|
Module features
|
|
|
|
1
|
Use ESP8266 wireless module (ESP-01), WIFI AP / Station mode, AP mode can set password
|
|
|
2
|
ModBus TCP protocol supports 01, 02, 03, 05, 06, 15 and 16 commands, which can be used flexibly
|
|
|
3
|
Modify the module address, WIFI network and other parameters through WIFI, with configuration tool source code (implemented by DLL call)
|
|
|
4
|
1 digital input, with optocoupler isolation
|
|
|
5
|
With status indicator, relay pull-in indicator
|
|
|
6
|
DC5-24V wide voltage power supply
|
|
