Quick Details
-
Model Number:
-
MPM4511-B4
Quick Details
-
Warranty:
-
12 months
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Microsensor
-
Model Number:
-
MPM4511-B4
Products Description
Basic Information

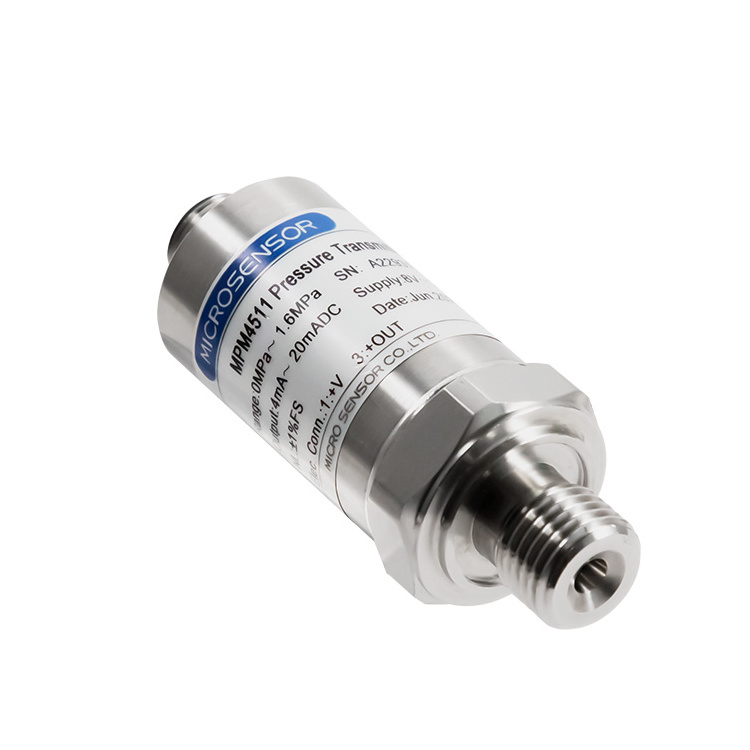

MPM4511 pressure transmitter has the pressure chamber which is made of single complete stainless steel piece, and all-metal sealing structure.The transmitter uses micro-fusion technology and has specially designed structure. It adopts the overall digital calibration and temperature compensation. This transmitter can meet the OEM customers’large volume demand and is highly cost efficient. It can be widely used in air pressure, hydraulic, and even worse media measuring environment, such as sewage, steam, light corrosive gases and liquids and other industrial or civil field pressure monitoring. Special customized products for users are also available
Feature
• Micro-fused technology, High temperature resistance, shock resistance
• Compact structure and cost-efficient
• Wide working temperature range
Application
• Engineering machinery
• Hydraulic and pneumatic system
• Energy and water treatment system
• Refrigeration system
• Industrial process control and automatic detection system
• Pump or compressor
• Central air conditioning control system
Specification
|
item
|
value
|
|
Pressure Range
|
0bar ～ 16bar…1000bar
|
|
Overpressure
|
≤ 2×FS (Max.1500bar)
|
|
Burst Pressure
|
≤ 5×FS (Max.2000bar)
|
|
Pressure Type
|
Gauge
|
|
Accuracy
|
≤±1%FS within compensation temperature
|
|
Compensation Temperature
|
-10℃～ 80℃
|
|
Application Temperature
|
-40℃～ 120℃
|
|
Storage Temperature
|
-40℃～ 120℃
|
|
Vibration
|
5g, 55Hz ～ 2000Hz
|
|
Shock
|
10g, 11ms
|
|
Insulation resistance
|
100MΩ，250V
|
|
Housing Protection
|
IP65
|
|
Weight
|
＜ 160g
|
FAQ
Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer since 1971 on Pressure/ Level/ Temperature/ Flow transmitters with 4~20mA, Hart, Rs485 & Modbus protocols, pressure sensors with SDI, I2C, 4~20mA, 0.5~4.5V and etc, and wireless IOT measurement transmitters. We provide high-quality products with high competitive factory prices.
Q: What's your quality control system?
A: As an ISO9001:2008 certificated manufacturer, we have a strict quality control system, and each product is done with fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed.
Q: Is there MOQ with your product?
A: We have no MOQ limits, 1pc for testing is acceptable.
Q: Do you provide customized products?
A: Yes, we can print your logo on our products; OEM, ODM & customization are welcomed.
Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 12 months after shipment, and our after-sales will respond with your questions in 24hrs, remote
instruction by PC network is always available.
Q: What is the lead time of your product?
A: We are a factory, our lead time is always within 10~15 working days for products without customization, but lead-time will vary based on different products. You can check detailed lead-time with our sales.
Q: What international certificates do you have for your products?
A: We have CE, RoHS, UL, ATEX as well as ship-use DNV, etc.
