Quick Details
-
Application:
-
AC / Motor
-
Film Capacitor:
-
Polypropylene Film Capacitor
-
Operating Temperature:
-
-40/85/21
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Huizhong
-
Model Number:
-
CBB65
-
Application:
-
AC / Motor
-
Film Capacitor:
-
Polypropylene Film Capacitor
-
Operating Temperature:
-
-40/85/21

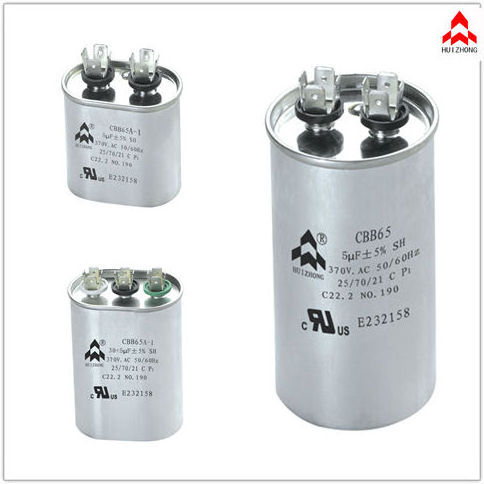

CBB65 RUN CAPACITORS
Main Feature:
Low dissipation factor small inherent temperature rise, excellent
self-healing stability safety and high voltage withstand etc.
Applications:
Run starting in household electric appliances air conditioner,
refrigerator which demand 50/60Hz AC power supply Have
safe protection constrution.
Specifications
|
Climatic category |
Rate voltage |
Testing voltage T-T |
Testing voltage T-C |
Capacitance tolerance |
Dissipation factor |
|
-25/+70/21 -40/+85/21 |
370/440VAC |
1.75Un/5S (2Un/5S) |
2000V.AC/5s |
±5% (±10%) |
≤0.002 (100Hz) |
Capacitance range:2MFD-100MFD,15+5MFD-80+7.5MFD
Dimension(mm):D: Φ40-Φ60,H:60-150
Reference standard:UL810,IEC252,EN60252,GB3667
Certification:UL Construction,UL 10,000AFC,TUV,VDE
Safety grade:P1,P2.
