>ACDC Hybrid Indoor Unit
Available Capacity 9k, 12k, 18k, 24k Btu ;
Digital display
>ACDC Hybrid Outdoor Unit
AC Input 180~240V 50/60HZ; R410A;
Low Noise 53~60dB
- Product Details
- {{item.text}}
Quick Details
-
App-Controlled:
-
Yes
-
Fixed Frequency/Variable Frequency:
-
Variable frequency
-
Place of Origin:
-
Anhui, China
-
Capacity (btu):
-
18000
-
COP:
-
12.41
-
EER:
-
20
-
Power (W):
-
1510
-
Voltage (V):
-
220
-
Product Name:
-
solar powered air conditioner
-
Refrigerant:
-
R410a Environmental Protection Refrigerant
-
Power supply:
-
solar energy and grid power
-
Color:
-
White
-
Applicable areas:
-
Office School
-
Function:
-
Cooling Heating
-
Compressor:
-
Famous Brand Rotary Compressor
-
Certification:
-
SASO
Quick Details
-
Warranty:
-
3 years
-
Type:
-
Split Wall Mounted Air Conditioners
-
Application:
-
Outdoor, Hotel, Commercial, Household
-
App-Controlled:
-
Yes
-
Fixed Frequency/Variable Frequency:
-
Variable frequency
-
Place of Origin:
-
Anhui, China
-
Capacity (btu):
-
18000
-
COP:
-
12.41
-
EER:
-
20
-
Power (W):
-
1510
-
Voltage (V):
-
220
-
Product Name:
-
solar powered air conditioner
-
Refrigerant:
-
R410a Environmental Protection Refrigerant
-
Power supply:
-
solar energy and grid power
-
Color:
-
White
-
Applicable areas:
-
Office School
-
Function:
-
Cooling Heating
-
Compressor:
-
Famous Brand Rotary Compressor
-
Certification:
-
SASO

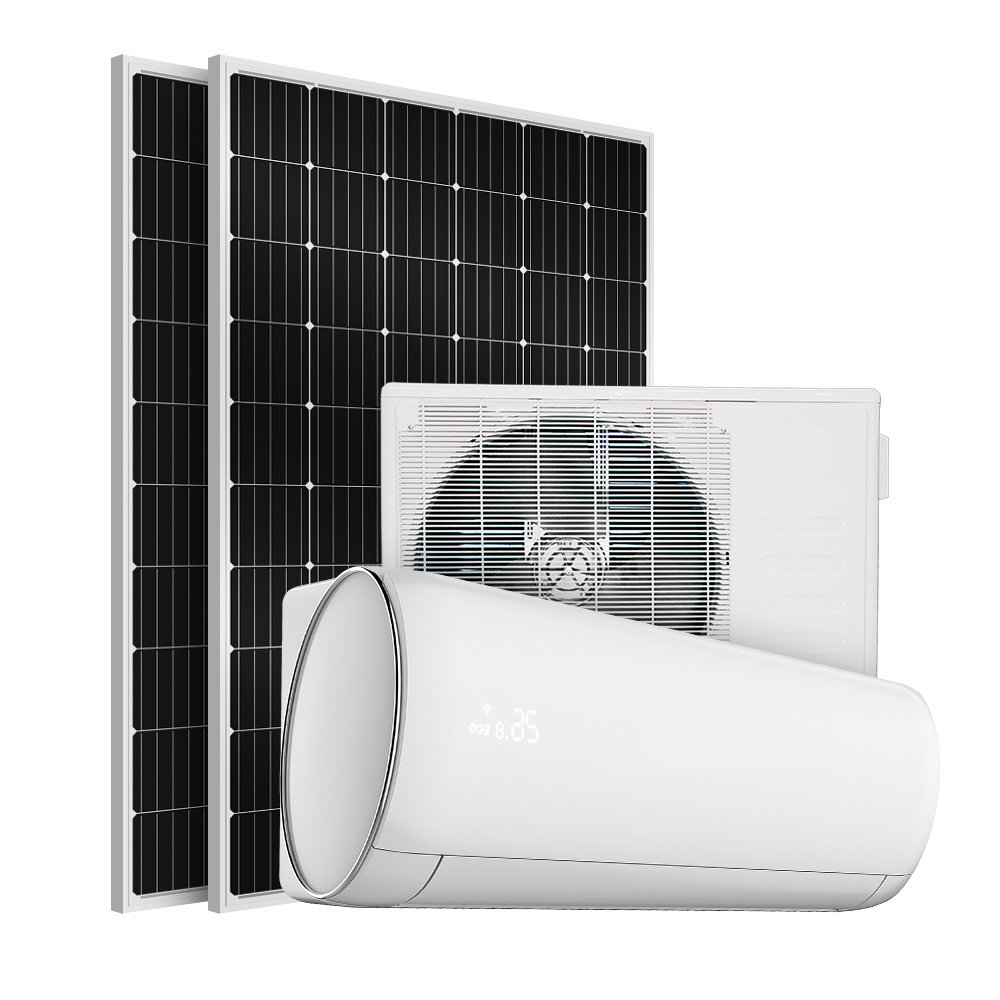

Solar Air Conditioner Description
What Is Solar Air Conditioner：
The Air Conditioner System uses VRF (Variable Refrigerant Flow ) controller and frequency driver in conjunction with multiple sensors and an algorithmic control circuit to raise and lower the unit's capacity in real-time based on conditions as they change.
Hybrid Solar Air Conditioner uses Solar Direct Drive Technology(SDDA), so the A/C Unit can use AC DC power in the same time or independently. The solar energy will be used as the priority power instead of the grid energy to run the air conditioner. In the sunshine day, the Recreate Hybrid Solar Air Conditioner can be operated by 100% solar energy without AC power.
The whole system just contains an A/C Unit and a few PV panels ( NO BATTERY, NO INVERTER, NO CONTROLLER). Compare with the regular air conditioner, the investment increases 50%-80%, but the electricity bill will reduce 60-80% yearly.
GRID POWER
During the night, the A/C unit take the power from the grid power and running with same principle of regular air conditioner, the SEER is over 22.
GRID AND SOLAR
When Sunshine is weak, like the morning or cloudy day. The A/C unit will take the solar as the priority choice, the insufficient power will take from the grid
100% SOLAR
When solar meet the Min Running requirement of compressor, the A/C unit can start and operate by solar energy only, even the grid off. 100% energy saving
A/C Unit Description
|
|
ADC09GW
|
ADC12GW
|
ADC18GW
|
ADC24GW
|
||||
|
Power Supply:
|
|
|
|
|
||||
|
Solar Power
|
DC90-380V
|
|
|
|
||||
|
Max Solar Charging Current
|
15A
|
|
|
|
||||
|
AC Power Connected
|
180-240V(50/60Hz)
|
|
|
|
||||
|
Cooling:
|
|
|
|
|
||||
|
Capacity
|
9000 Btu/h
|
12000 Btu/h
|
18000 Btu/h
|
24000 Btu/h
|
||||
|
Inverter Capacity Range
|
2808-9536 Btu/h
|
3099-12987Btu/h
|
3482-19389Btu/h
|
4294-25280Btu/h
|
||||
|
Power Input
|
0.81 kW
|
0.98 kW
|
1.51 kW
|
1.87 kW
|
||||
|
SEER / EER
|
23 / 12.3
|
22 / 12.6
|
20 / 12.1
|
20 / 12.1
|
||||
|
Heating
:
|
|
|
|
|
||||
|
Capacity
|
9,000 Btu/h
|
12,000 Btu/h
|
17,200 Btu/h
|
23,800 Btu/h
|
||||
|
Inverter Capacity Range
|
2858-9685 Btu/h
|
3753~13306 Btu/h
|
4435~19789 Btu/h
|
5100~24542 Btu/h
|
||||
|
Power Input
|
0.87 kW
|
1.12 kW
|
1.29 kW
|
1.82 kW
|
||||
|
HSPF / COP
|
11 / 12.46
|
11 / 12.38
|
10 / 12.41
|
11 / 12.31
|
||||
|
Operation Temperature:
|
|
|
|
|
||||
|
Indoor Unit
|
60.8 – 89.6 ºF
|
|
|
|
||||
|
Outdoor Unit
|
50– 125.6/5-104 ºF
|
|
|
|
||||
Solar Part Description
Peak Power Watts: 280W (SP280M-60)
Maximum Power Voltage: 31.8V
Maximum Power Current: 8.81A
Open Circuit Voltage: 38.8V
Short Circuit Current: 9.33A
Dimensions:1650×992×35 mm (65.0×39.1×1.38 inches)
Weight:18.6 kg (41.0 lb)
Maximum Power Voltage: 31.8V
Maximum Power Current: 8.81A
Open Circuit Voltage: 38.8V
Short Circuit Current: 9.33A
Dimensions:1650×992×35 mm (65.0×39.1×1.38 inches)
Weight:18.6 kg (41.0 lb)
DC Cable & MC4 Connector.
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Rated Voltage:600VDC/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Lightning Arrester
.
PC40-85V DC
Fuse-Protection.
RT28N-32X 1P
DC Breaker.
DC800V 2P 20A
Certifications
1.CB; 2.CE; 3.GCC; 4.SASO; 5.ISO 9001; 6.
SONCAP
