Quick Details
-
Brand Name:
-
Juniper
-
Model Number:
-
QFX5210-64C-AFO2
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Juniper Networks QFX5210-64C-AFO2 Switch
-
System throughout:
-
Up to 12.8 Tbps (bidirectional)
-
Forwarding capacity:
-
Up to 4.2 Bpps
-
QSFP+/QSFP28 ports:
-
64 QSFP+ or QSFP28
-
25GbE (breakout cable, QSFP28):
-
128
-
10GbE (breakout cable, QSFP+):
-
128+2
-
Rack units:
-
2 U
-
Operating system:
-
Junos OS
-
CPU:
-
Intel Broadwell-DE, 4 Core, 2.2 GHz, 16 GB DDR4, 100 GB SSD
-
Management interfaces:
-
1 RJ-45 management port provided
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
Other
-
Brand Name:
-
Juniper
-
Model Number:
-
QFX5210-64C-AFO2
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Juniper Networks QFX5210-64C-AFO2 Switch
-
System throughout:
-
Up to 12.8 Tbps (bidirectional)
-
Forwarding capacity:
-
Up to 4.2 Bpps
-
QSFP+/QSFP28 ports:
-
64 QSFP+ or QSFP28
-
25GbE (breakout cable, QSFP28):
-
128
-
10GbE (breakout cable, QSFP+):
-
128+2
-
Rack units:
-
2 U
-
Operating system:
-
Junos OS
-
CPU:
-
Intel Broadwell-DE, 4 Core, 2.2 GHz, 16 GB DDR4, 100 GB SSD
-
Management interfaces:
-
1 RJ-45 management port provided

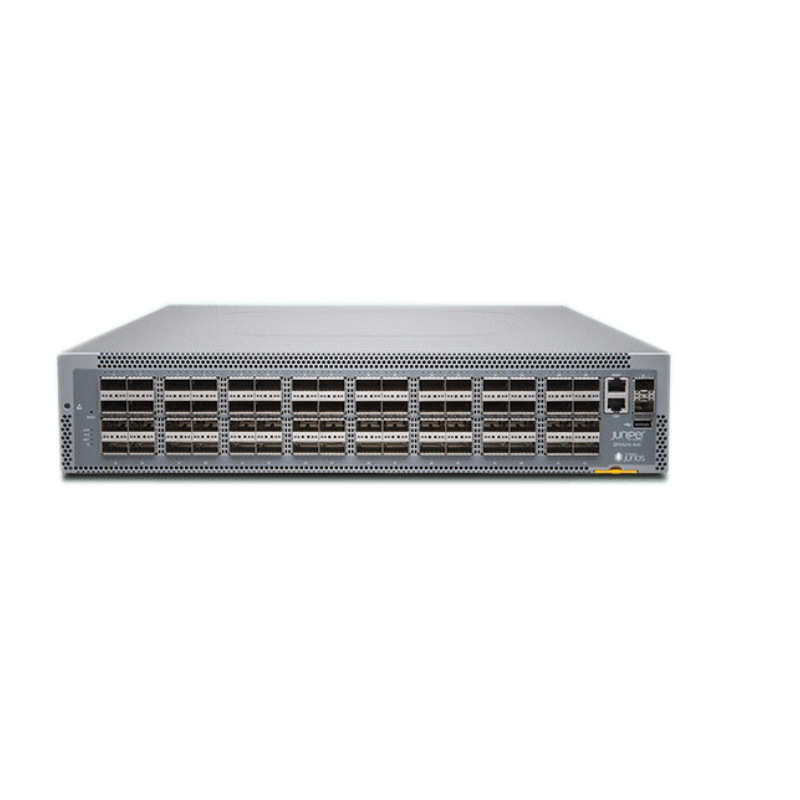

Juniper Networks QFX Series QFX5210-64C Ethernet Switch
The QFX5210 Switch is a flexible, 64-port, fixed-configuration switch designed for spine-and-leaf applications in next-generation IP fabric networks. Featuring line-rate, high-density QSFP+/QSFP28 ports supporting 10GbE, 25GbE, 40GbE, and 100GbE connections, the QFX5210 offers an advanced Layer 2, Layer 3, and MPLS feature set. This allows network operators to build large, high-density IP fabrics that support network virtualization and intelligent traffic forwarding based on proven, Internet-scale technology, while enabling easy upgrades to 25GbE servers.
Additionally, the QFX5210-64C-S platform includes support for SONiC, continuing Juniper’s commitment to disaggregation, allowing customers to innovate quickly and easily while simplifying operations.
| Description | Measurement |
| System throughout | Up to 12.8 Tbps (bidirectional) |
| Forwarding capacity | Up to 4.2 Bpps |
| QSFP+/QSFP28 ports | 64 QSFP+ or QSFP28 |
| 25GbE (breakout cable, QSFP28) | 128 |
| 10GbE (breakout cable, QSFP+) | 128+2 |
| Dimensions (W x H x D) | 17.26 x 3.45 x 24.1 in. (43.84 x 8.77 x 61.2 cm) (depth including fan handle; otherwise 22.83 in. (58 cm) |
| Rack units | 2 U |
| Weight | 14.1 kg |
| Operating system | Junos OS |
| CPU | Intel Broadwell-DE, 4 Core, 2.2 GHz, 16 GB DDR4, 100 GB SSD |
| Management interfaces | 1 RJ-45 management port provided |
| Power |
Redundant (1+1) hot-pluggable 1100 W AC/DC power supplies 110-240 V single phase AC power -36 to -72 V DC power |
| Cooling |
Front-to-back and back-to-front cooling Redundant (N+1) hot-pluggable fan modules with variable speed to minimize power draw |
| Total packet buffer | 42 MB |
| Warranty | Juniper standard one-year warranty |
