Quick Details
-
Brand Name:
-
LW
-
Model Number:
-
LW-TX2201
-
Operating Temperature:
-
-10℃... +60℃
-
Type:
-
Remote Switch
-
Model:
-
LW-TX2201
-
Frequency:
-
50HZ/60HZ
-
Voltage:
-
220V/380V
-
Usage:
-
Home Automation System
-
Mechanical Life:
-
100000 Times
-
Warranty:
-
18 Months
-
Material:
-
Plastic
Quick Details
-
Max. Current:
-
16A
-
Max. Voltage:
-
100-240VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LW
-
Model Number:
-
LW-TX2201
-
Operating Temperature:
-
-10℃... +60℃
-
Type:
-
Remote Switch
-
Model:
-
LW-TX2201
-
Frequency:
-
50HZ/60HZ
-
Voltage:
-
220V/380V
-
Usage:
-
Home Automation System
-
Mechanical Life:
-
100000 Times
-
Warranty:
-
18 Months
-
Material:
-
Plastic
Specification
|
Type
|
|
Remote Switch
|
|
|
|||
|
Model Number
|
|
LW-TX2201
|
|
|
|||
|
Brand Name
|
|
LW
|
|
|
|||
|
Current
|
|
16A
|
|
|
|||
|
Voltage
|
|
220V/380V
|
|
|
|||
|
Operating Temperature
|
|
-10℃... +60℃
|
|
|
|||
|
Warranty
|
|
18 Months
|
|
|
|||
|
Usage
|
|
Home Automation System
|
|
|
|||
Product details:
* This product is controlled by a single live wire switch, and the main isolation switch needs to be disconnected during
maintenance to avoid electric shock

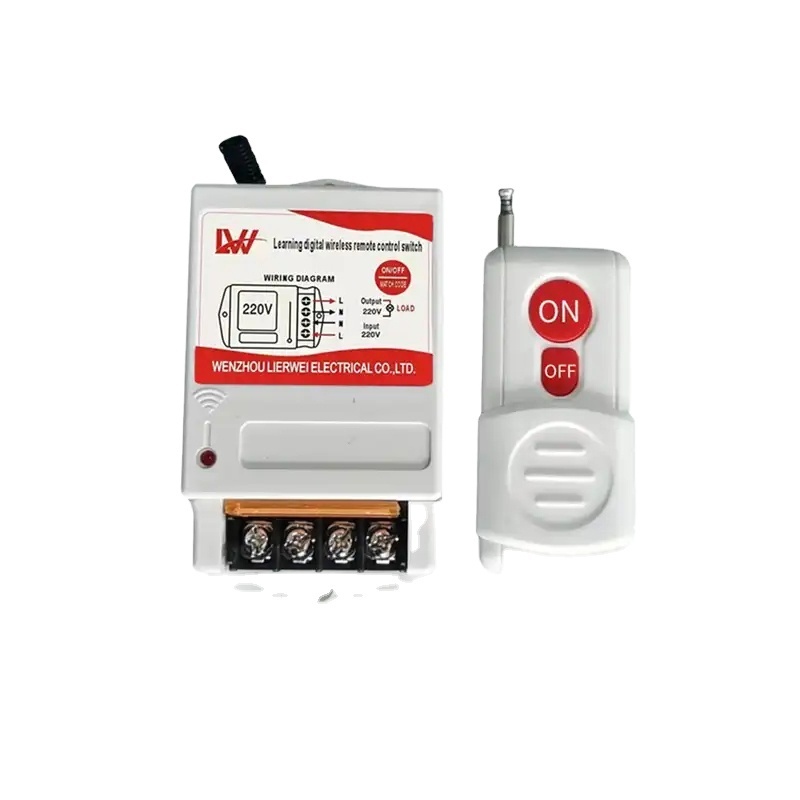

* After installation, the black antenna on the switch needs to be straightened to avoid affecting the remote control distance. When the remote control distance drops, please check the battery power of the remote control, and replace it in time when the battery power is insufficient.
1. Please install it correctly according to the installation wiring diagram (see the side label of the switch). The 220V switch is suitable for direct use of equipment with a power of less than 6 kW. The 380V switch must be used with an AC contactor. High-power switches need to be used with AC contactors.
Remote learning method
2. Code matching: Press and hold the switch button for 5 seconds, the indicator light changes from steady on to fast flashing, then release the key. At this time, press the on or off key of the remote control, the running indicator light is always on, indicating successful code matching.
3. Code clearing: After pressing and holding the switch for 5 seconds, the indicator light changes from steady on to fast flashing. Continue to press for 5 seconds and the indicator light flashes slowly, indicating successful clearing.
4. The installation height of the switch should be more than 1.5 meters above the ground. The black receiving antenna of the host needs to be straightened and erected. It is strictly forbidden to cut the middle or externally extend the antenna. Avoid installing the switch in a low-lying and humid environment.
5. Before using, please check whether the positive and negative poles of the remote control handle battery are placed correctly. The remote control handle should be protected to prevent dust and water from entering the remote control buttons, causing the buttons to be ineffective or damaged.
6. The actual distance of the remote control is generally between 30% and 80% of the nominal distance. The higher the height of the switch from the ground, the less the intermediate spacers, the farther the remote control distance, and the closer it is. It is strictly forbidden to install the switch in a closed metal box. Metal has a shielding effect on wireless signals.
maintenance to avoid electric shock
* After installation, the black antenna on the switch needs to be straightened to avoid affecting the remote control distance. When the remote control distance drops, please check the battery power of the remote control, and replace it in time when the battery power is insufficient.
1. Please install it correctly according to the installation wiring diagram (see the side label of the switch). The 220V switch is suitable for direct use of equipment with a power of less than 6 kW. The 380V switch must be used with an AC contactor. High-power switches need to be used with AC contactors.
Remote learning method
2. Code matching: Press and hold the switch button for 5 seconds, the indicator light changes from steady on to fast flashing, then release the key. At this time, press the on or off key of the remote control, the running indicator light is always on, indicating successful code matching.
3. Code clearing: After pressing and holding the switch for 5 seconds, the indicator light changes from steady on to fast flashing. Continue to press for 5 seconds and the indicator light flashes slowly, indicating successful clearing.
4. The installation height of the switch should be more than 1.5 meters above the ground. The black receiving antenna of the host needs to be straightened and erected. It is strictly forbidden to cut the middle or externally extend the antenna. Avoid installing the switch in a low-lying and humid environment.
5. Before using, please check whether the positive and negative poles of the remote control handle battery are placed correctly. The remote control handle should be protected to prevent dust and water from entering the remote control buttons, causing the buttons to be ineffective or damaged.
6. The actual distance of the remote control is generally between 30% and 80% of the nominal distance. The higher the height of the switch from the ground, the less the intermediate spacers, the farther the remote control distance, and the closer it is. It is strictly forbidden to install the switch in a closed metal box. Metal has a shielding effect on wireless signals.
