Quick Details
-
Brand Name:
-
LCELE
-
Model Number:
-
Single and Three
-
Accuracy Class:
-
Better than Cl.1
-
Output Voltage:
-
230-440V
-
Operating Temperature:
-
-25 ~+55
-
Dimensions:
-
99*36*63mm
-
Type:
-
Energy Digital Kwh Meter
-
Display:
-
LCD Display
-
Product name:
-
Single Phase Electronic KWh Meter
-
Certificate:
-
CE ISO9001
Quick Details
-
Phase:
-
single phase
-
Measuring Energy Range:
-
0-9999kWh
-
Place of Origin:
-
China
-
Brand Name:
-
LCELE
-
Model Number:
-
Single and Three
-
Accuracy Class:
-
Better than Cl.1
-
Output Voltage:
-
230-440V
-
Operating Temperature:
-
-25 ~+55
-
Dimensions:
-
99*36*63mm
-
Type:
-
Energy Digital Kwh Meter
-
Display:
-
LCD Display
-
Product name:
-
Single Phase Electronic KWh Meter
-
Certificate:
-
CE ISO9001
2.2 . technical parameters
|
Rated current |
5( 60 )A , 2 0( 8 0)A |
|
Accuracy class |
1.0 |
|
Life span |
≥ 10 years |
|
Power consumption |
< 4VA , 1.5W |
|
Meter constant |
10 00imp/kWh |
|
Dimension |
20 6 *13 0 * 46 mm |
Notice: Please refer to the nameplate for the real values of rated current, accuracy class and meter constant of a specific meter.
3. Description

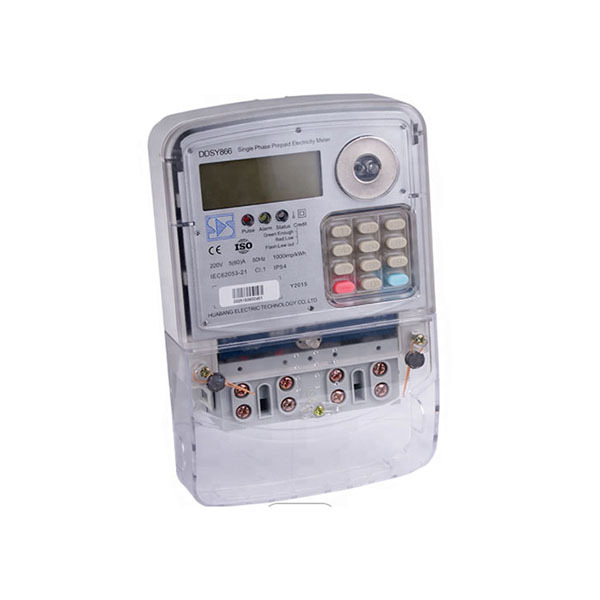

Figure 1
1- LCD display with backlight .
2- LED indicators . From left to right are: Pulse, alarm, status credit .
3- Assistance terminals, and detector of terminal cover opening.
4- Optical communication port which complies with IEC 62056-21 protocol.
5- Keypad contains 12 buttons (0~9, “ ” and “ ”) to enter TOKEN and query meter data .
3 . 2 LCD display screen with back light
3 . 3 P ulse: k Wh consume indicator
3 . 4 Alarm:
3.3.1 The cover was opened.
3.3.2 The load is reverse, unbalance, or overload.
3.3.3 The voltage is overvoltage, or undervoltage.
3 . 5 Status credit : credit indicator
3.4.1 The green LED indicates the remained credit is enough.
3.4.2 The yellow LED indicates the remaining energy is below remained energy threshold 1 .
3.4.3 T he red LED indicates the remain credit is below remained credit threshold 2.
3.4.4 When the red LED is flash, it means the remaining credit is below remained credit threshold 3.
3 . 6 Keypad contains 12 buttons to enter TOKEN and query information
3 . 7 Optical port complies with IEC 62056-21
3 . 8 Open cover detector inside the terminal
3.9 Operation principle
As shown in figure 3, the current and voltage of power covered into small signal separately and input into a special measurement IC, after a series of process such as multiplication calculation etc. and then output energy pulse, whose frequency is in direct proportion to the supply power, to the microprocessor unit (MCU). The MCU calculate and process energy impulse to perform the power metering and load control functions etc. The LCD displays the total credit and remained credit etc. relay tripping off indirect shows the meter operation state.
