Quick Details
-
Model Number:
-
PTM60
-
Product name:
-
PTM60 plasma cutting torch CNC machine torch
-
Current:
-
10-60 Amps
-
Duty Cycle:
-
60 Amps 80%
-
Rear Connector:
-
1/4-G
-
Gas:
-
Air/N2
-
Gas Pressure:
-
65-75 psi (4.4-5.0 bar)
-
Gas Flow:
-
320 scfh (150 lpm)
-
Pilot:
-
Electrode to Tip (18-22A)
-
Ignition:
-
Without HF
-
MOQ:
-
5pcs
Quick Details
-
Type:
-
CUTTING TORCH
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Huarui
-
Model Number:
-
PTM60
-
Product name:
-
PTM60 plasma cutting torch CNC machine torch
-
Current:
-
10-60 Amps
-
Duty Cycle:
-
60 Amps 80%
-
Rear Connector:
-
1/4-G
-
Gas:
-
Air/N2
-
Gas Pressure:
-
65-75 psi (4.4-5.0 bar)
-
Gas Flow:
-
320 scfh (150 lpm)
-
Pilot:
-
Electrode to Tip (18-22A)
-
Ignition:
-
Without HF
-
MOQ:
-
5pcs

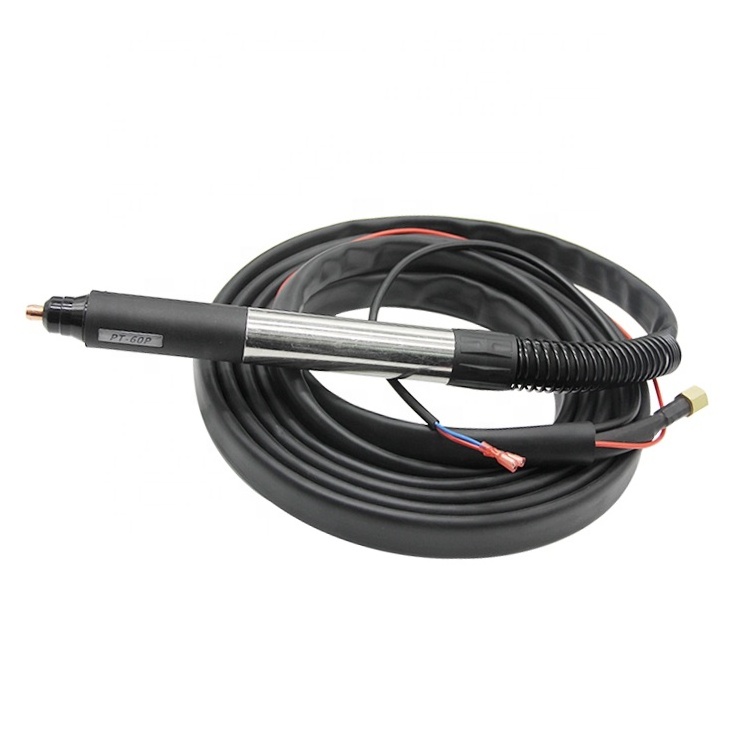

Customized Length PTM60 IPT60M Plasma Cutting Torch CNC Machine Torch
|
Part No.
|
Description
|
|
09613
|
PTM-60 Machine Torch Head
|
|
51620.60
|
O-Ring
|
|
07218
|
Fiberglass Positioning Tube
|
|
52582
|
Electrode, Back Striking
|
|
60028
|
Swirl ring
|
|
51318.06
|
Tip, Contact Cutting, ø 0.65, 10-20A, Back Striking
|
|
51318.08
|
Tip, Contact Cutting, ø 0.8, 20-30A, Back Striking
|
|
51318.09
|
Tip, Contact Cutting, ø 0.9, 30-40A, Back Striking
|
|
51313P.10
|
Flat Tip, Cutting, ø 1.0, 40-50A, Back Striking
|
|
51313P.11
|
Flat Tip, Cutting, ø 1.1, 50-60A, Back Striking
|
|
51248.16
|
Tip, Cutting, ø 1.6, 110-120A, Back Striking
|
|
60389
|
Retaining Cap, 6 holes
|
|
60389S
|
Retaining Cap, 6 holes, Maximum Life
|
Changzhou Hu
aru
i W
elding
& Cut
ting Co., LTD
Since the establishment in 1985, we have become one of the biggest manufacturers of welding and cutting equipment and accessories in China by modern manufacturing equipment and special technology.
We are specialized in manufacturing MIG, TIG, PLASMA, Weldin
g Torch
es and Spare parts. With Euro connector, Lincoln connector , Miller connector and Tweco connector, we can fit different kinds of foreign equipments.
1.MIG Welding Torch
Binzel, Bernard, Tweco, Esab, Lincoln/Tregaskiss, Panasonic/OTC, MAXI, Kemppi, Fronius, Mechafin.
2.TIG Welding Torch
WP-24, WP-9,WP-17, W
P-26, WP-2
0, WP-18, etc.
3.Plasma Cutting Torch
Trafimet, Cebora, Panasonic/Esab
Q1: Can I get a free samples to check the quality?
A:Sure,we can supply samples. For regular goods, the sample cost is different from the amount you want. For our new products, there's a MOQ of the samples.
Q2: Can I put my logo on the boxes/cartons?
A: Yes, this can be made according to your requirements, but you should send us the trademark authorization letter.
Q3: How can you guarantee your products quality ?
A: Huarui's each torch must pass the following tests before packing: Insulation resistance test, High voltage test, Air/Water flow test, Air/Water seal test.
If there are defective items, we usually credit to our customer or replace in the next shipment.
Q4: What's the order procedure?
A: Firstly, we discuss the details together by e-mail or TM. Then we issue you a PI for your confirmation or Trade Assurance Order Payment Link. You will be requested to do the pre-paid full payment before we go into the production. After we get the payment, we start to process the order. It usually takes 5-15days if we don't have the items in stock.
