8B Mattress Tape Edge Sewing Machine Thick Material Industrial Sewing Machine

8B Mattress Tape Edge Sewing Machine Thick Material Industrial Sewing Machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $519

≥4 Pieces

US $481

≥21 Pieces

US $438

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Feed Mechanism:: Walking Foot

Place of Origin:: Guangdong, China

Brand Name:: Jianglong

Power:: 750W

Overall Dimensions:: 66.6*26.6*51

Weight (KG):: 37 KG

product name:: industrial sewing machine

Number of Needle:: Single Needle

Max. Sewing Speed:: 2200(r.p.m)

Max.Stitch Length:: 0-6.5mm

Diameter of Cylinder Bed:: 65mm

Needle size:: DP*17

Hook:: Small Vertical Hook

Working Space:: 250*110 mm

MOQ:: 1set

After-sales Service Provided:: Video technical support

Quick Details

Type:: Industrial Sewing Machine

Max. Sewing Thickness:: 14mm

Stitch Length:: 0-7.5mm

Feed Mechanism:: Walking Foot

Place of Origin:: Guangdong, China

Brand Name:: Jianglong

Power:: 750W

Overall Dimensions:: 66.6*26.6*51

Weight (KG):: 37 KG

product name:: industrial sewing machine

Number of Needle:: Single Needle

Max. Sewing Speed:: 2200(r.p.m)

Max.Stitch Length:: 0-6.5mm

Diameter of Cylinder Bed:: 65mm

Needle size:: DP*17

Hook:: Small Vertical Hook

Working Space:: 250*110 mm

MOQ:: 1set

After-sales Service Provided:: Video technical support

Product Description

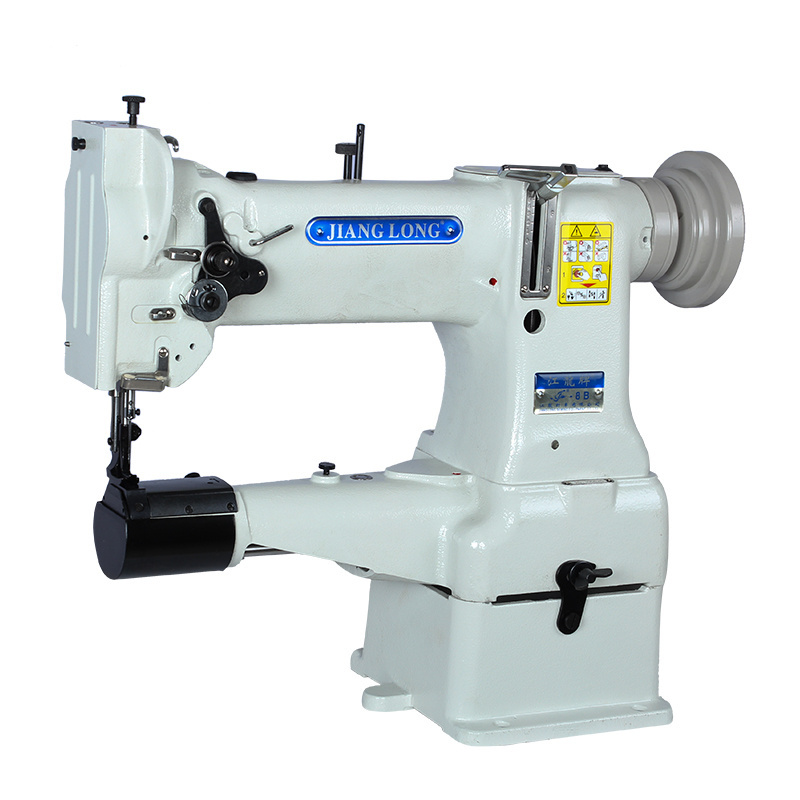

1. This machine is a cylinder type thick material lockstitch sewing machine specially designed for luggage manufacturing, with a
solid structure.
2. The sliding rod is used to take up the thread to form a double-thread lock stitch, and the upper and lower shafts are driven by a synchronous toothed belt
3. Presser foot, feeding cloth, synchronous needle feeding
4. High-pressure foot stroke, high-pressure foot lifting clearance and large stitch length, matched with cylindrical sewing table
5 Suitable for sewing heavy bags and suitcases

Model	Swing Speed	Number of Needle	Needle gauga	Bed size in dia.
JL-8B-2A	2200(r.p.m)	Single Needle	0-8mm	65 mm
Needle size	Hook	Lubrication	N.W	G.W
DP*17 (21#)	Small Vertical Hook	Automatic	32 KG	37 KG
