Quick Details
-
Table Size:
-
2980*800*1500mm
-
Overall Dimensions:
-
2980*800*1500mm
-
Weight:
-
2350 kg
-
Fuel:
-
disesel
-
Battery capacity:
-
12v/45AH
-
Wire rope specifications:
-
8mm*45m
-
Telescopic arm length:
-
4.7m-16.5m
-
Walking way:
-
Hydraulic motor drive
-
Walking speed:
-
2.5km/h
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
China
-
Brand Name:
-
LTMG
-
Table Size:
-
2980*800*1500mm
-
Overall Dimensions:
-
2980*800*1500mm
-
Weight:
-
2350 kg
-
Fuel:
-
disesel
-
Battery capacity:
-
12v/45AH
-
Wire rope specifications:
-
8mm*45m
-
Telescopic arm length:
-
4.7m-16.5m
-
Walking way:
-
Hydraulic motor drive
-
Walking speed:
-
2.5km/h

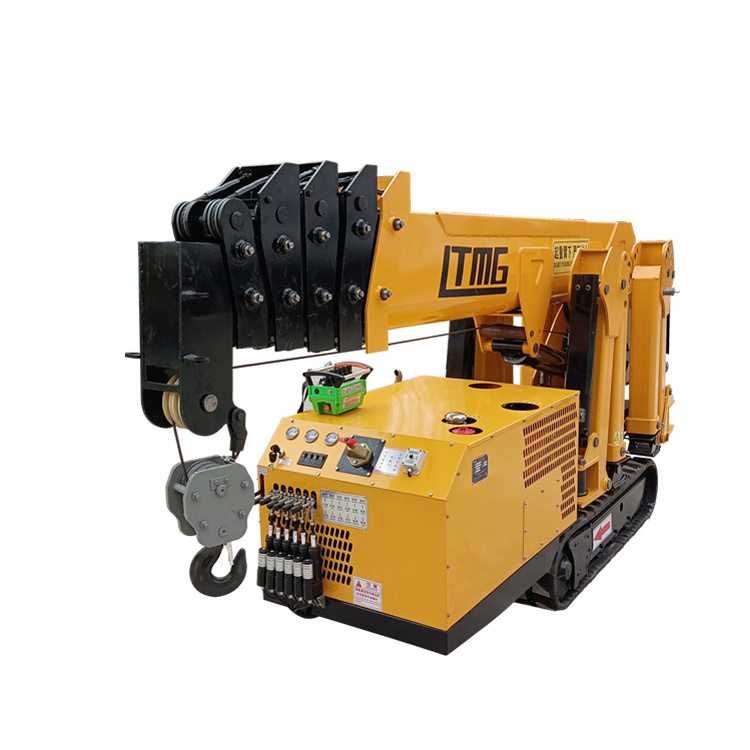

Outdoor House Mini 3000kg Folding Construction Crawler Spider Crane Cantilever Electric Hydraulic Telescopic Boom
|
Specification
|
|
3t
|
|
|
Maximum working radius
|
|
8.83m x 0.2t
|
|
|
Maximum ground lifting height
|
|
9.2mX0.7t
|
|
|
Maximum underground lifting height
|
|
10mX1t (4 ropes) 20mX1t (2 ropes) 40mX0.74t (1 rope)
|
|
|
Winche device
|
Hook speed
|
0-8m/min (4 ropes)
|
|
|
|
Wire rope specifications
|
Φ8mm×45m
|
|
|
Telescopic system
|
Boom type
|
5-stage boom, U-shaped construction
|
|
|
|
Boom length/time
|
3.1m - 9.2m/20sec
|
|
|
Up and Downs
|
Boom angle/time
|
0-78°/13sec
|
|
|
Slew system
|
Slew angle/speed
|
0-360° (continuous)/60sec
|
|
|
Outrigger
|
Leg extensions
|
Manual screw-out + hydraulic automatic support (two legs)
|
|
|
|
Maximum extended dimensions (mm)
|
4530 (length) X 4370 (rear) X 3700 (front)
|
|
|
Traction system
|
Walking way
|
Hydraulic motor drive, two speeds
|
|
|
|
Walking speed
|
0-2.5km/h
|
|
|
|
Grade ability
|
25° (36%)
|
|
|
Electric motor
|
Voltage
|
AC 380V
|
|
|
Engine
|
Production
|
Changchai
|
|
|
|
Type / Displacement
|
EV80/F195
|
|
|
|
Starting method
|
Electric start
|
|
|
|
Operating temperature
|
-5°C~40°C
|
|
|
|
Fuel/capacity
|
Diesel / 8L
|
|
|
|
Battery capacity
|
12v 45AH
|
|
|
|
Fuel consumption rate
|
274g/kW-h
|
|
|
|
Noise level
|
Rated speed ≤ 81.5 dBA (1m)
|
|
|
|
Emission standards
|
National II
|
|
|
Operating systems
|
Type of operation (boom/leg), manual travel
|
Manually operated, manual travel (with optional remote control)
|
|
|
|
Operating characteristics
|
Manual operation (with optional remote control)
|
|
|
Standard configuration
|
Diesel and electric motors (dual power)
|
|
|
|
Length, width, height
|
2.98m 0.8m 1.5m
|
|
|
|
Self-weight (T)
|
2.35T
|
|
|
|
Crawler
|
230(W)72(Pitch)50(Pitch)
|
|
|
|
Optional
|
Optional torque controller available
|
|
|
After -Sales Service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
1. Why choose us?
As a manufacturer, LTMG industrial is committed to offer not only rough terrain forklifts with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory?
LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying loaders, forklift trucks, excavator and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5.How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we
always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
LTMG industrial can provide customized products according to customers' requirements,both OEM and ODM are acceptable.
