Quick Details
-
Table Travel (Y) (mm):
-
550
-
Dimension(L*W*H):
-
2250*2500*2600mm
-
Weight (T):
-
4.5 T
-
Positioning Accuracy (mm):
-
0.008
-
Repeatability (X/Y/Z) (mm):
-
0.004
-
Range of Spindle Speed(r.p.m):
-
1 - 12000 r.p.m
-
Spindle Motor Power(kW):
-
7.5/11
-
Max. Table Load(kg):
-
800 kg
-
Feed Speed(mm/min):
-
0 - 12000 mm/min
-
Rapid Feed Speed(m/min):
-
48/48/36
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
WMTCNC
-
Marketing Type:
-
New Product 2023
-
CNC or Not:
-
CNC
-
Product Type:
-
Metal Vertical Machining Center Cnc
-
Machine Name:
-
High Speed Machining Center
-
Keywords:
-
High Precision Vertical Machining Center
-
Function:
-
Metalworking
-
Precision:
-
High Precision High Accuracy for Sale
-
Voltage:
-
Customized Option
-
After Sale Service:
-
Video Technical Support
-
Package:
-
Plywood Case
-
Video Outgoing-inspection:
-
Provided
Quick Details
-
Table Size (mm):
-
500x1000
-
Number of Axes:
-
3, 4, 5
-
Table Travel (X) (mm):
-
850
-
Table Travel (Y) (mm):
-
550
-
Dimension(L*W*H):
-
2250*2500*2600mm
-
Weight (T):
-
4.5 T
-
Positioning Accuracy (mm):
-
0.008
-
Repeatability (X/Y/Z) (mm):
-
0.004
-
Range of Spindle Speed(r.p.m):
-
1 - 12000 r.p.m
-
Spindle Motor Power(kW):
-
7.5/11
-
Max. Table Load(kg):
-
800 kg
-
Feed Speed(mm/min):
-
0 - 12000 mm/min
-
Rapid Feed Speed(m/min):
-
48/48/36
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
WMTCNC
-
Marketing Type:
-
New Product 2023
-
CNC or Not:
-
CNC
-
Product Type:
-
Metal Vertical Machining Center Cnc
-
Machine Name:
-
High Speed Machining Center
-
Keywords:
-
High Precision Vertical Machining Center
-
Function:
-
Metalworking
-
Precision:
-
High Precision High Accuracy for Sale
-
Voltage:
-
Customized Option
-
After Sale Service:
-
Video Technical Support
-
Package:
-
Plywood Case
-
Video Outgoing-inspection:
-
Provided
Product Description
Main Features:
1. The electric spindle provides nearly ten times higher rated torque (electric spindle 10.7NM, mechanical spindle 1.19NM), and higher cutting capacity.
1. The electric spindle provides nearly ten times higher rated torque (electric spindle 10.7NM, mechanical spindle 1.19NM), and higher cutting capacity.
2. The electric spindle can work at 12000 rpm for a long time, with small vibration, small thermal extension, high machining accuracy, and better surface quality of the product.
|
Specification
|

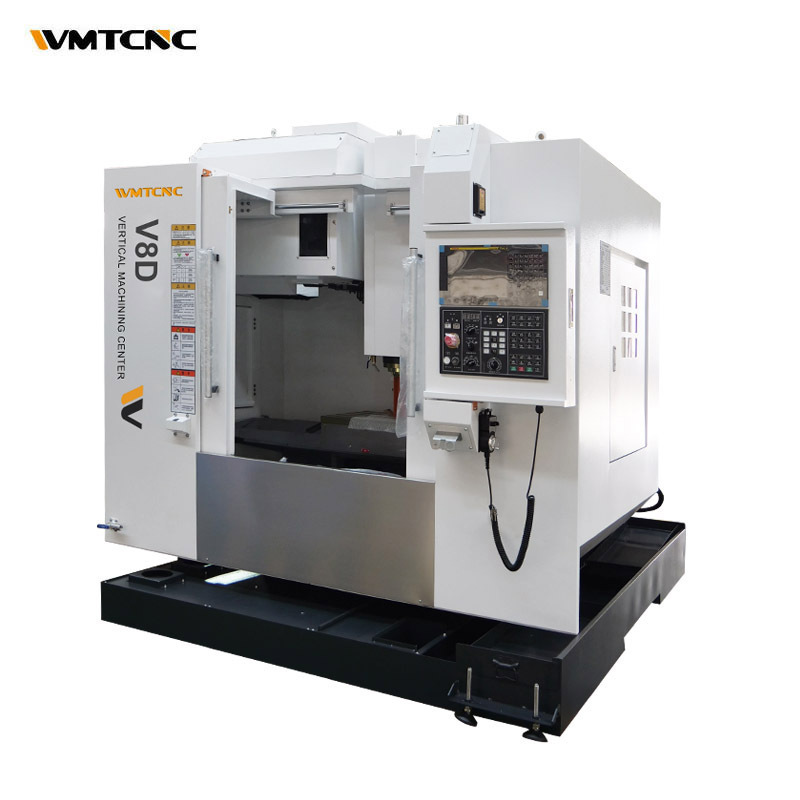

V8D
|
|
Worktable
|
|
|
Worktable size(LxW)
|
500×100mm
|
|
T-slot size(NxWxD)
|
5-18×100mm
|
|
Travel
|
|
|
3 axis Travel X/Y/Z
|
850/550/600mm
|
|
Machining range
|
|
|
Distance from spindle ceter to column
|
597mm
|
|
Distance from spindle end to work table
|
120-720mm
|
|
Spindle
|
|
|
Spindle hole taper
|
BT40
|
|
Spindle power
|
7.5/11kw
|
|
Max.spindle speed
|
12000rpm
|
|
Feed
|
|
|
Max.feed speed
|
12000m/min
|
|
Rapid feed speed(X/Y/Z)
|
48/48/36m/min
|
|
Tool magazine
|
|
|
Tool magazine capacity
|
24T
|
|
Tool change time
|
2.5s
|
|
Positioning accuracy(GB standard)
|
|
|
Positioning accuracy(X/Y/Z)
|
0.008mm
|
|
Re-positioning accuracy(X/Y/Z)
|
0.004mm
|
|
Machine dimension
|
|
|
L×W×H
|
2250×2500×2600mm
|
|
Machine weight
|
|
|
Max.loading of worktable
|
600kg
|
|
Machine weight
|
4500kg
|
