Quick Details
-
Screw Speed (rpm):
-
80 rpm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CISSCO
-
Voltage:
-
380 V
-
Dimension(L*W*H):
-
28000*2500*1970mm
-
Power (kW):
-
75
-
Weight:
-
25 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Power(W):
-
160 Kw
-
Automatic Grade:
-
Automatic
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
1:30
-
Screw diameter (mm):
-
90 mm
-
Screw Speed (rpm):
-
80 rpm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CISSCO
-
Voltage:
-
380 V
-
Dimension(L*W*H):
-
28000*2500*1970mm
-
Power (kW):
-
75
-
Weight:
-
25 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Power(W):
-
160 Kw
-
Automatic Grade:
-
Automatic
Broom Fiber Extrusion Line,Brush Broom Monofilament Making Machine
1. About us :
Cissco Machinery Co., LTD has been producing this machinery for more than 10- years and we have satisfied clients in more than 30 countries throughout the world. We have an excellent reputation for quality , reliability and service, and all our machinery is designed, engineered and manufactured in China.
2. Yarn Monofilament Application : this machinery is suitable for the production of brush monofilament ,velcro monofilament , zipper , ropes, fishing nets, mosquito nets , construction safety net.
3 . Configuration of PET BOTTLE FLAKES FOR MAKING BRUSH AND BROOMS MONOFILAMENT MACHINE
|
No. |
Part Name |
Qty. |
Introduction of Main Parts |
|
1 |
Extruder |
1set |
1. Raw material: v irgin or bottle flakes 2. Frequency conversion control speed. 3. Hard tooth surface gear motor: Jiangsu changzhou. 4. Screw and cylinder: Made in Zhejiang Zhoushan. 5. Material of screw heating: Al Casting. |
|
2 |
Spinning die |
1pc |
1. Heating method of die head: oil heating. 2. Material of spinneret: SUS316. 3. Frequency conversion control speed, cycloidal pinwheel reducer.
|
|
3 |
Cooling water tank |
1set |
1. Yarn separate pole is movable. 2. Material of box: stainless steel. |
|
4 |
Seven roller Stretching A |
1set |
1. Frequency conversion control speed. Frequency conversion motor. 2. Steel structure of box, gear transmission, running balance. 3. In front, one rubber roller and stainless steel separate pole.
|
|
5 |
Hot water tank |
1set |
1. Material is stainless steel with heat preservation, and cover is opened by gas 2. Heating method :electrical heating 3.Equip water recycling pump |
|
6 |
Seven roller Stretching B |
1set |
1. Frequency conversion control speed Frequency conversion motor 2. Steel structure of box, gear transmission, running balance. 3. In front, one rubber roller and stainless steel separate pole
|
|
7 |
Hot blast stretching recycled oven |
1set |
1. Single layer recycled hot blast oven 2. Equip wind power control 3. Hot blast path especial design make them equality 4. Frequency control of motor speed |
|
8 |
Seven roller Stretching C |
1set |
1. Frequency conversion control speed Frequency conversion motor 2. Steel structure of box, gear transmission, running balance. 3. In front and back, each with one rubber roller and stainless steel separate pole.
|
|
9 |
Oiling unit |
1set |
1. Frequency conversion control speed Frequency conversion motor |
|
10 |
Yarn guider system |
1set |
|
|
11 |
Winder |
2sets |
Frame style winder |
|
12 |
Cabinet |
1set |
Shown in another list |

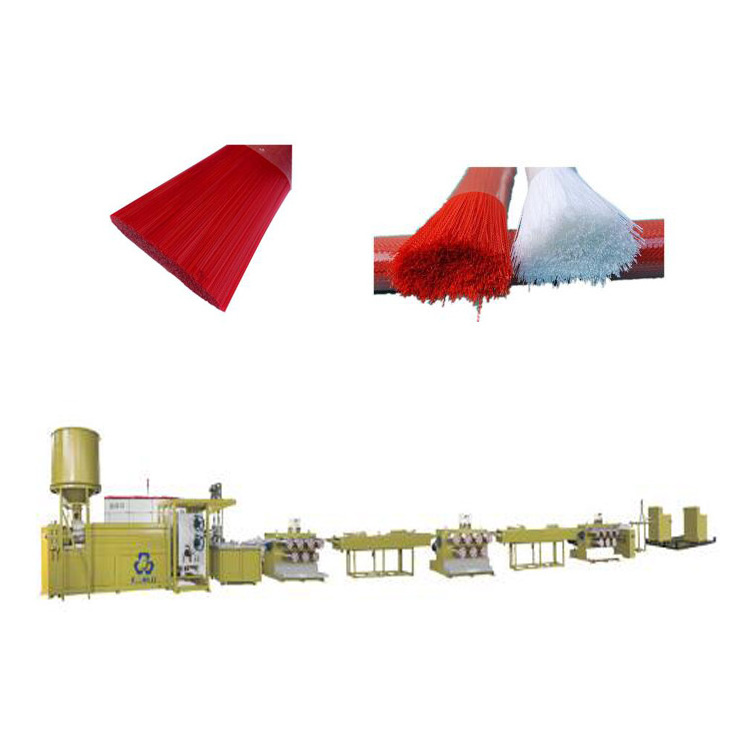

4. Photo Show of PET PET BOTTLE FLAKES FOR MAKING BRUSH AND BROOMS MONOFILAMENT MACHINE
