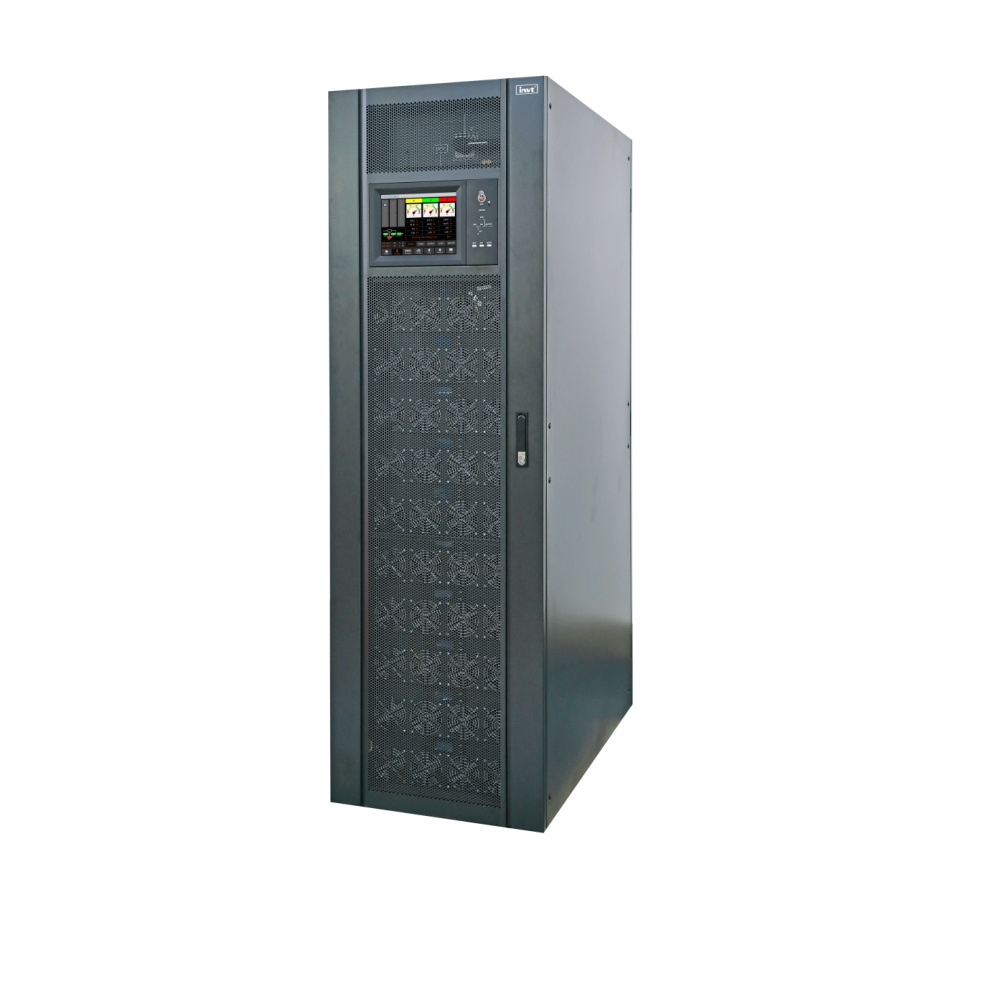

300kVA Ups High Capacity 3Phase Pure Sine Wave Uninterrupted Power Supply

300kVA Ups High Capacity 3Phase Pure Sine Wave Uninterrupted Power Supply

FOB Reference Price: Get Latest Price

≥1 Pieces

US $7800

≥20 Pieces

US $7750

≥50 Pieces

US $7600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: RM300/30X, RM300/30X

Weight:: Depends

Capacity:: 300kVA

Appplication:: Computerized Instruments

Output waveform:: Pure sine wave

Power Module Capacity:: 30KVA/30KW

Name:: Modular UPS

Battery type:: Lead-acid Maintenance-free Battery

Quick Details

Warranty:: 12-24Months

Place of Origin:: Anhui, China

Brand Name:: Invt

Model Number:: RM300/30X, RM300/30X

Weight:: Depends

Capacity:: 300kVA

Appplication:: Computerized Instruments

Output waveform:: Pure sine wave

Power Module Capacity:: 30KVA/30KW

Name:: Modular UPS

Battery type:: Lead-acid Maintenance-free Battery

Products Description

Smart charging module is designed for large current charging application where long back up time is required. There are 2 kinds of charging module, 15Amp and 50Amp. 15Amp current charging module is compatible with 10/15kVA power module based RM series 10-90kVA and can provide additional maximum current of 15Amp*N; 50Amp current charging module is compatible with 30kVA power module based RM series 25-600kVA and modular-designed HT33 series 60-120kVA and can provide additional maximum current of 50Amp*N. Modular and hot-swappable design Modular and hot-swappable design, the same size and outlook as power module Large charging current Each charging module can provide a maximum current of 15Amp (Or 50Amp) and charging current can be set from 0-15Amp (Or 0-50Amp) on site Compatibility Compatible with 15kVA (Or 30kVA) power modules, easy for the UPS to expand charging capacity

MODEL

RM600/30X

RM300/30X

RM180/30X

RM500/25X

RM250/25X

RM150/25X

System Capacity

600kVA

300kVA

180kVA

500kVA

250kVA

150kVA

Power Module Capacity

30kVA/30kW

25kVA/25kW

Input

Dual Input

Optional

Phase

3 Phase+Neutral+Ground, 380V/400V/415V(line-line)

Input Voltage Range

304~478Vac (line-line),full load;228V~304Vac (line-line),load decreases linearly according to the min phase voltage

Rate Frequency

50/60Hz

Input Frequency Range

40Hz～70Hz

Input PF

>0.99

Input THDi

<3% (100% Linear load)

Bypass

Rate Voltage

380/400/415Vac (line-line)

Rate Frequency

50/60Hz

Input Voltage Range

Settable, -40%～+25%

Bypass Frequency Range

Settable, ±1Hz, ±3Hz, ±5Hz

Bypass Overload

110% long term operation; 125% for 5 mins ;150% for 1 min

Output

Rate Voltage

380/400/415Vac (line-line)

Voltage Regulation

1% for balance load; 1.5% for unbalance load

Rate Frequency

50/60Hz

Frequency Precision

0.10%

Output PF

Output THDu

<1% , Linear load; <5.5%, Non-linear load

Crest Factor

3:01

Inverter Overload

110% for 1 hour; 125% for 10 mins ;150% for 1 min; >150% for 200 ms

Voltage

±240Vdc

Battery

Battery Number

40pcs (Settable: even number from 32 to 44)

Voltage Precision

±1%

Charge Power

up to 20% * Output active power

Battery Cold Start

Standard

System

Efﬁciency

AC Mode 95%

ECO Mode 99%

Battery Mode 95%

Display

10.4" color touch screen LCD + LED + keyboard

IP Class

IP 20

Interface

RS232,RS485, Programmable Dry Contact, USB

Option

SNMP Card, Parallel kit, SPD, LBS,Dust ﬁlter, Expansion dry contact card

Temperature

Operation: 0～40 ℃ Storge: -40～70 ℃

Relative Humidity

0～95% Non-condensing

Altitude

<1000m. Within 1000m to 2000m, 1% power derating for every 100m rise

Noise (1 meter)

72dB@100%load 65dB@45%load

65dB@100%load 62dB@45%load

72dB@100%load 65dB@45%load

65dB@100%load 62dB@45%load

Applicable Standards

Safety: IEC/EN 62040-1 EMC: IEC/EN 62040-2 Performance: IEC/EN 62040-3

Physical

Weight (kg) Cabinet

660

242

178

660

242

178

Weight (kg) Power module

32.3

Dimension W*D*H(mm) Cabinet

2000*1050*2000

600*1100*2000

600*1100*1600

2000*1050*2000

600*1100*2000

600*1100*1600

Dimension W*D*H(mm) Power module

460*790*134

1. OEM&ODM services acceptable. 2. Lots of cooperated agent for shipping by sea or by air. 3. 1year warrenty , if it is quality problem , we will provide the parts for free . Little hint: 1.In the warranty period the machine has a problem, please contact the sales staff, we will be responsible for customer service. 2.Exceed the warranty period, improper operation and man-made damage, we will still give help and support,We will provide spare parts at a cost price. 3.According to the customer's needs, we can provide unconventional, but the cost may be slightly higher than the traditional machine. Q1: Why you should choose us? ---12 years experience in UPS and DATA CENTER R&D and production ---Professional team for both oversea and domestic market ---UPS and inverters provider of Beijing Ministry of Civil Affairs Machine Room Project,Baidu flying paddle artificial intelligence project ---Qualified product and competitive prices ---Delivery in time ---Sincerely services Q2: what kind of certificate you have ? --- We have IS09000, CE Q3: what’s the payment term? --- We accept T/T, WEST UNION Q4:What's the delivery time ? ---Standard products could be delivered within 7-15 days; customized products could be developed within15-30days. Q5:Do you accept OEM business? --- We accept OEM with your authorization. Q6:What is the standard of package? ---Export standard wooden case or special package according to customer requirement Q7:Can it make other specification voltage and current output? ---Yes,Regards different voltages of different countries, we can customize different kind of specification according to your request. Such as: 1.Three Phase:208V/220V/220V/230V/380V/400V/415V/480V 2.Single Phase:110V/120V/127V/220V/230V/240V/277V Q8:How is your after-sale service? ---We provide 12-24 months warranty since the delivery date and free maintenance / replacement during warranty period.
