Quick Details
-
Maxi Cutting Speed:
-
1200mm/s
-
Work area:
-
900*600mm
-
Operationg properties:
-
7*24 with zero downtime
-
Safety device:
-
Infrared sensor; sensitive resp;
-
Translational velocity:
-
1500mm/s
-
Applicable materials:
-
embroidery accessories,etc
-
Multifunctional head:
-
Oscillating cutting tool
-
Cutting thickness:
-
0.1-20mm 0.1-10.0mm
-
Cutting tolerance:
-
±0.1mm
-
Item:
-
Automatic Cutting Machine
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YUCHEN
-
Weight (KG):
-
900
-
Maxi Cutting Speed:
-
1200mm/s
-
Work area:
-
900*600mm
-
Operationg properties:
-
7*24 with zero downtime
-
Safety device:
-
Infrared sensor; sensitive resp;
-
Translational velocity:
-
1500mm/s
-
Applicable materials:
-
embroidery accessories,etc
-
Multifunctional head:
-
Oscillating cutting tool
-
Cutting thickness:
-
0.1-20mm 0.1-10.0mm
-
Cutting tolerance:
-
±0.1mm
-
Item:
-
Automatic Cutting Machine

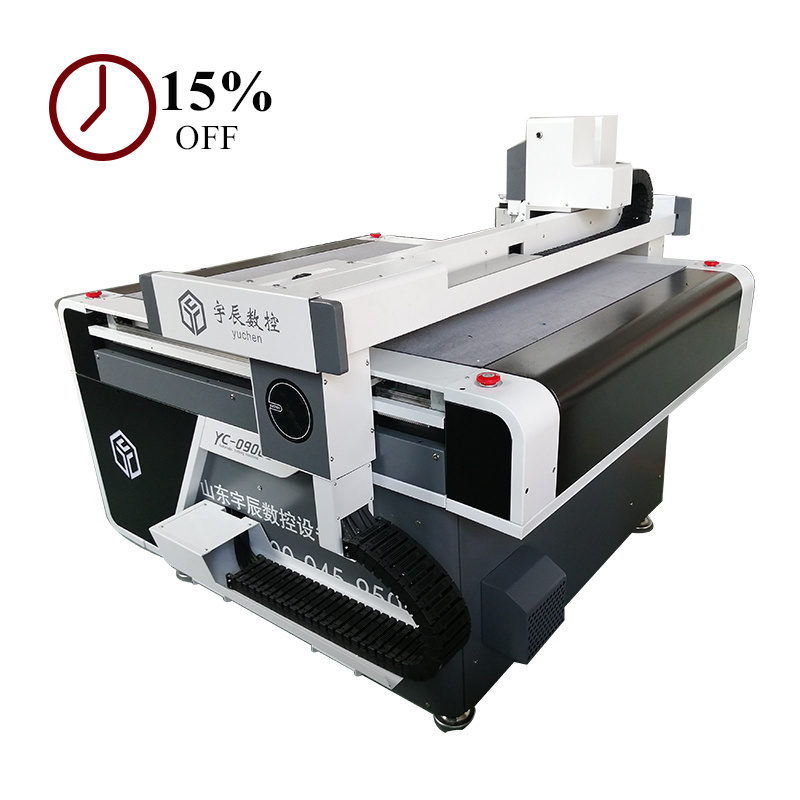

Model: YC-0906L YC-1625L Machine size can be customized
Applicable cutting materials
:
Rubber,Rubber gasket, Graphite gasket,Asbestos gasket,Non asbestos gasket sheet,PTFE etc
Standard Equipments
:
Oscillating Knife Cutting tool.Pneumatic cutting tool
|
Model |
YC-0906L |
|
Working area |
900×600mm
|
|
continuous cutting with high efficiency, 7*24 with zero downtime |
|
|
Safety device |
Infrared sensor; sensitive response; safe and reliable |
|
Maxi cutting speed |
1200mm/s |
|
Translational velocity |
1500mm/s |
|
Applicable materials |
PVC, embroidery accessories, foam composite material, XPE, coiled mats, leather, silicone, rubber, truck tarpaulin, etc |
|
Multifunctional head |
Oscillating cutting tool |
|
Cutting thickness |
0.1-20mm (subject to material) 0.1-10.0mm (subject to the material cutting) |
|
Cutting tolerance |
±0.1mm |
|
Transmission interface |
Ethernet |
|
Driven system |
Motor: Panasonic Linear rail: SMTYCC or Hiwin |
|
Fixed mode |
Vacuum absorb |
|
Supply voltage |
220V 380V±10%,50HZ AC 220V 380V±10%,50HZ |
|
11KW |
Pre-sale Service:
1. Free sample cutting/testing
Before you buy the machine, please send your samples or products CAD Graphics to our company in China, we will do cutting here and make video to show you the effect of cutting.
2. Customized machine design
We accept the customized machine, our company has an experienced professional design team, we can give you our professional suggestions according to your requirements and design a cost-effective machine for your needs.
3. Inquiries are typically answered within 24 hours.
4. Visit Factory
Our factory located in Jinan City,Shandong Province, China. Welcome to visit our factory to test the machine before you buy.
After-sales Service.
1. Machine warranty : the warranty is 12 months after shipment date. During the warranty period, the main accessories (except the wearing parts) are replaced free of charge because of the quality problems under the normal operation.
but due to improper operation, also well-solved, but not free of charge.
2. We have an experienced after-sales team and a complete after-sale system.
Factory trainning support, Video technical support, online support, Engineers available to service machinery overseas.
*Standard plywood case packing for exporting, which can guarantee the machine safety during the long-distance transportation
*Delivery time:20days after received the full payment.
