Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Original brand
-
Model Number:
-
DS-2CD2785FWD-IZS
-
Technology:
-
Vari-focal
-
Lens:
-
2.8 to 12 mm focal length
-
Resolution:
-
1/2.5" Progressive Scan CMOS
-
Alarm Action:
-
4 behavior analyses
-
IR Distance(m):
-
30M
-
face detection:
-
support
-
Power Supply(V):
-
DC 12V/ POE
-
Network Interface:
-
RJ-45 10/100Mb Ethernet Slot POE
-
Effective Pixels:
-
Max. 3840* 2160@20fps
-
Supported Mobile Systems:
-
iPhone OS, Android
Quick Details
-
Special Features:
-
Vandal-proof
-
Function:
-
Waterproof / Weatherproof, Vandal-proof
-
Customized support:
-
Online technical support, Customized logo
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Original brand
-
Model Number:
-
DS-2CD2785FWD-IZS
-
Technology:
-
Vari-focal
-
Lens:
-
2.8 to 12 mm focal length
-
Resolution:
-
1/2.5" Progressive Scan CMOS
-
Alarm Action:
-
4 behavior analyses
-
IR Distance(m):
-
30M
-
face detection:
-
support
-
Power Supply(V):
-
DC 12V/ POE
-
Network Interface:
-
RJ-45 10/100Mb Ethernet Slot POE
-
Effective Pixels:
-
Max. 3840* 2160@20fps
-
Supported Mobile Systems:
-
iPhone OS, Android
Data sheet

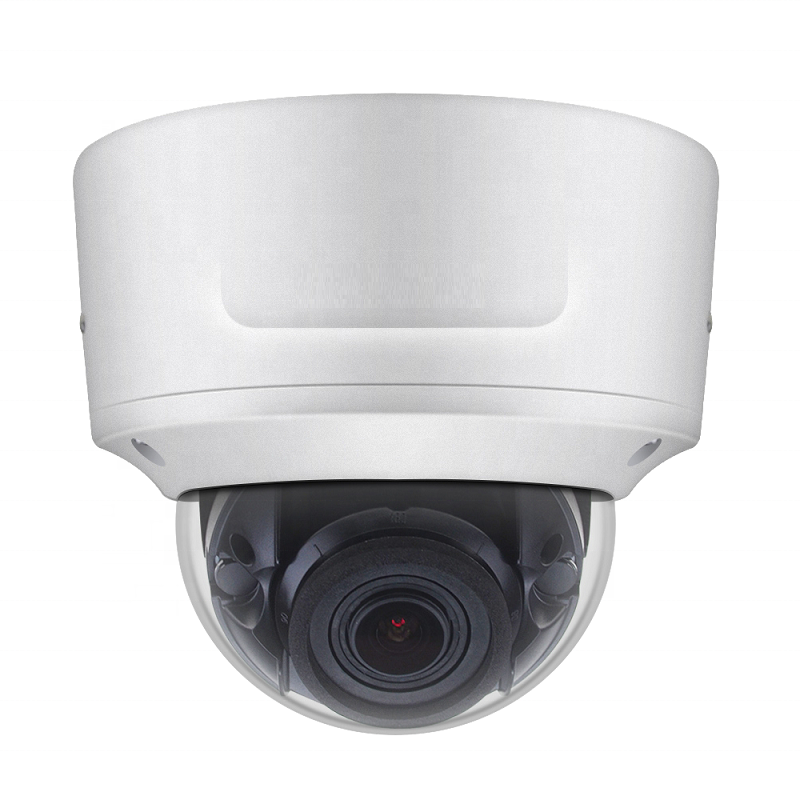

Genuine HIK International Version 8MP 4K IR Motorised Vari-focal Lens Dome IP Network Camera DS-2CD2785FWD-IZS
DS-2CD2785FWD-IZS 8MP(4K) IR Vari-focal Dome Network Camera
• 1/2.5" Progressive Scan CMOS
• 3840 × 2160 resolution
• 2.8 to 12 mm focal length
• H., H.+, H.264+, H.264
• 120dB Wide Dynamic Range
• BLC/3D DNR/ROI/HLC
• IP67, IK10
• 4 behavior analyses and face detection
NOTED: we can do OEM order without the logo from HIK
|
Image Sensor:
|
1/2.5" Progressive Scan CMOS
Genuine HIK 100% Original 8 MP(4K) IR Vari-focal Dome Network Camera DS-2CD2785FWD-IZS
|
|
Signal System:
|
PAL/NTSC
|
|
Min. Illumination:
|
Color: 0.01 Lux (F1.2, AGC ON), 0 Lux with IR
|
|
|
Color: 0.014 Lux (F1.4, AGC ON), 0 Lux with IR
|
|
Shutter time:
|
1/3 s to 1/100,000 s
|
|
Slow shutter:
|
Support
|
|
Lens:
|
2.8 to 12 mm
|
|
Lens Mount:
|
φ14
|
|
Adjustment Range:
|
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
|
|
Day& Night:
|
IR cut filter with auto switch
|
|
Wide Dynamic Range:
|
120 dB
|
|
Digital noise reduction:
|
3D DNR
|
|
Focus:
|
Auto
|
|
Compression Standard
|
Genuine HIK 100% Original 8 MP(4K) IR Vari-focal Dome Network Camera DS-2CD2785FWD-IZS with face detection
|
|
Video Compression:
|
H.+/H./H.264+/H.264/MJPEG
|
|
Video bit rate:
|
32Kbps~16Mbps
|
|
Audio Compression:
|
G.711/G.722.1/G.726/MP2L2/PCM
|
|
Audio bit rate:
|
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
|
|
Triple Streams:
|
Yes
|
|
|
|
|
Max. Image Resolution:
|
3840 × 2160
|
|
Sub Stream:
|
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
|
|
|
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
|
|
Frame Rate:
|
50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
|
|
|
60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
|
|
Third Stream:
|
50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288)
|
|
|
60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
|
|
Image Enhancement:
|
BLC/3D DNR/ROI/HLC
|
|
Image Settings:
|
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
|
|
ROI:
|
Support 1 fixed region for main stream and sub stream separately
|
|
Day/Night Switch:
|
Day/Night/Auto/Schedule/Triggered by Alarm In
|
|
Network
|
|
|
Network Storage:
|
microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
|
|
Alarm Trigger:
|
Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login
|
|
Protocols:
|
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
|
|
General Function:
|
One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video
|
|
|
mask, Watermark, IP address filtering
|
|
System Compatibility:
|
Open Network Video Interface (Profile S, Profile G), ISAPI
|
|
Interface
|
|
|
Audio:
|
1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
|
|
Communication Interface:
|
1 RJ45 10M / 100M Ethernet interface
|
|
Alarm:
|
1 input, 1 output (max. 12 VDC, 30 mA), terminal block
|
|
Video Output:
|
1Vp-p Composite Output(75Ω/CVBS) (For adjustment only)
|
|
On-board storage:
|
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
|
|
Reset Button:
|
Yes
|
|
Audio
|
|
|
Environment Noise Filtering:
|
Support
|
|
Audio Sampling Rate:
|
8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
|
|
Smart Feature-set
|
|
|
Behavior Analysis:
|
Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
|
|
Line Crossing Detection:
|
Cross a pre-defined virtual line
|
|
Intrusion Detection:
|
Enter and loiter in a pre-defined virtual region
|
|
Unattended Baggage:
|
Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
|
|
Object Removal:
|
Objects removed from the pre-defined region, such as the exhibits on display.
|
|
Exception Detections:
|
Scene change detection
|
|
Recognition:
|
Face Detection
|
|
General
|
|
|
Operating Conditions:
|
-30 °C ~ 60 °C (-22 °F ~ 140 °F)
|
|
|
Humidity 95% or less (non-condensing)
|
|
Power Supply:
|
12 VDC ± 25%, PoE (802.3af Class3)
|
|
Power Consumption:
|
12 VDC, 0.95A, max. 11.5W
|
|
|
PoE (802.3af, 36V to 57V), 0.3A to 0.1A, max. 12.9W
|
|
Impact Protection:
|
IK10
|
|
Weather Proof:
|
IP67
|
|
IR Range:
|
Up to 30m
|
|
Dimensions:
|
Φ153.4 × 133.1 mm (6.04 *5.24)
|
