SEWO Automatic Car Ticket Vending Parking Machine for Shopping Mall Car Parking System

SEWO Automatic Car Ticket Vending Parking Machine for Shopping Mall Car Parking System

FOB Reference Price: Get Latest Price

≥1 Pieces

US $599

≥10 Pieces

US $549

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 1 Years

Loading Capacity:: 10000 pcs

Model:: SEWO-CP9

Dimension:: 380x355x1515mm

Housing Material:: steel & tempered glass

Housing Color:: optional

Support Built-in Reader:: IC/ID. Barcode. RFID

Com Mode:: RS485. Rear TCP/IP

Communication distance:: 1200m(RS485)

Data Transmission speed:: 4800bps/100m

Offline storage Capacity:: 10000pcs(Extendible)

Blacklist Capacity:: 1000pcs(Extendible)

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: SEWO

Model Number:: SEWO-CP9

Warranty:: 1 Years

Loading Capacity:: 10000 pcs

Model:: SEWO-CP9

Dimension:: 380x355x1515mm

Housing Material:: steel & tempered glass

Housing Color:: optional

Support Built-in Reader:: IC/ID. Barcode. RFID

Com Mode:: RS485. Rear TCP/IP

Communication distance:: 1200m(RS485)

Data Transmission speed:: 4800bps/100m

Offline storage Capacity:: 10000pcs(Extendible)

Blacklist Capacity:: 1000pcs(Extendible)

Product Description

SEWO Automatic Car Ticket Vending Parking Machine for Shopping Mall Car Parking System

ANPR/LPR/ALPR car parking management has become mainstream now, because it has much more advantages than RFID card or manual management. 1.No need to stop the car, roll the window down, get the card. Safer for driver, time and energy saver. 2.When car plate has been recognized, the boom barrier automatically opens and let the car in. Meanwhile, parking time and parking fee is recording and calculating. 3.Number of available parking lots is showed on entrance machine and parking fee showed on exit machine. Everything is clear and easy to manage. 4.For residential use only, it needs one machine(including ALPR camera), plus one boom barrier for one vehicle access. If you need another pedestrian access, we can provide whole solution for entire residential area. For 16 years, we have been served over 500,000 residential apartments and villas. 5.For operational parking lot, ALPR system saves time and manpower, which largely improves parking lot operational efficiency. Also, we provide professional parking management software and parking guidance system.

Features Of CP9 Parking Management System:

1,200 million HD recognition, built-in control system; 2,support direct connect to display; 3,support direct connnect to IC Card Reader or other RFID Reader; 4,The temporary vehicle's license plate recogination under offline mode, or vehicle access control by swipe card and charge; 5, off-line display,voice broadcast (the number of license plate;period of validity;charge amount) 6,The regular vehicle 's license plate recogination under offline mode, or vehicle access control by swipe card and charge; 7, The vehicle without license plate entry by swipe card; 8, It can store 100,000 user's date; 9. It can store 100,000 records of entrance and exit parking lot. 10, Support virtual coil triggering recognition

What's the advantages of X660 Boom Barrier ?

1,The main controller is manufactured by highly reliable microprocessorl; 2,Specially designed adopted a 24V special brushless motor; 3,With additional full range of security protection functions; 4,Motor rated power:140W 5,Motor Rated Speed: 22r/min 6,Motor torque ratin: 20N•m 7,Standard stop bar length: 3m 8,Running noise: ≤60dB 9,Stop bar take-off and landing time: 1.2-2S 10,MCBF: ≥5,000,000 times 11: Stop bar misoperation:≦0.01％ 12: Come with 2 pcs remote controls

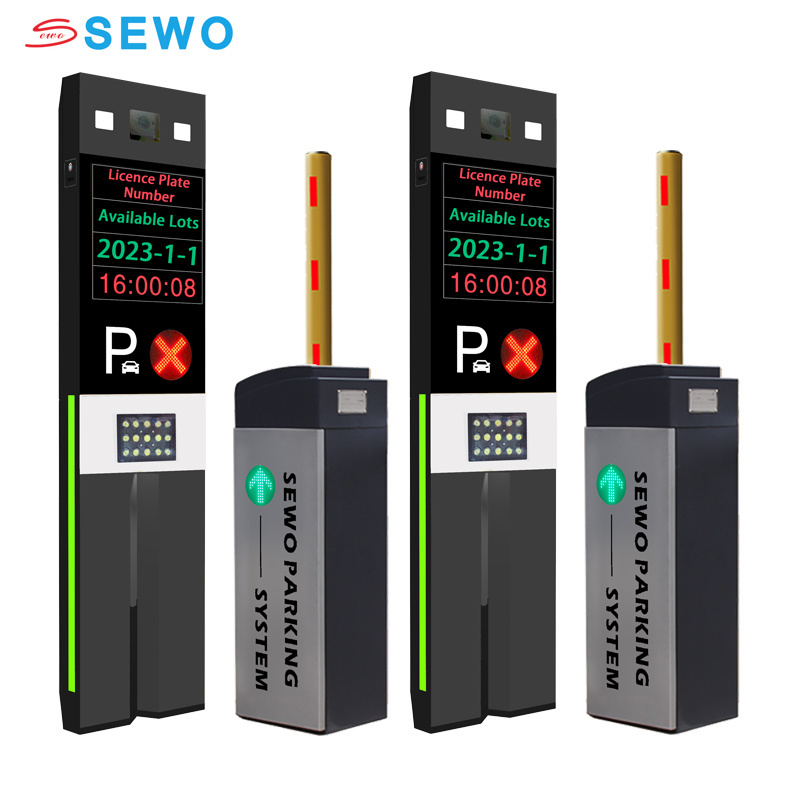

Entrance & Exit Machine

Model No.: SEWO-CP9

Green arrow pass indication, directly link to the gate, simple wiring

The voice broadcast shows the number of the license plate, the period of validty or welcome message

Contains 15 LED lamp beads, night light supplement, enhance the recognition effect, with photosensitive induction, not bright during the day, bright at night!

Including chassis, camera bracket and display chassis

Entance Barrier/ Exit Barrier

Mode No.: X6 Boom Barrier

As one part of parking management system, barrier gate stops unauthorized parkers entering your premises, or giving access to
authorized parkers.

There is 3 types for choose:

Straight Arm

Folding Arm

Fence Arm

Parking Management Software & PC

The software provides the operators with idiot proof and user-friendly interface, and practical multi functions, such as managing
registered parkers and occasional parkers, setting charging standard, real-time surveillance, parking space display, managing
events, managing report, registering card etc.

SEWO Parking Management System Working Principle

FAQ: How to Entry ?

Step 1----- The Vehicle covers the 1th Loop coil.
Step 2 ----- Driver press the push button on the entry parking case.
Step 3 ----- The card dispenser spit an RFID Card. system recording all the information.like data.entry time.
Step 4 ----- Boom barrier open automatically
Step 5 ----- After driver pass the 2th loop coin. The Boom barrier close automatically

FAQ: How to Pay and Exit ?

1st Example of Case

Manual Payment（ Gatehouse near the exit barrier ）

Step 1----- Vistor drive to the payment centre station and give his to the operator (Station near the Exit point ) Step 2----- Operator put the card in the card issue device Step 3----- System shows the card information on the LED display automatically. ( Including The card holder. How long the car stay inside the parking system. How much need to pay ） Step 4----- After driver pay the cash. Operator click " open barrier ". then boom barrier open Step 5----- After the car pass the loop coil. the boom barrier close

2nd Example of Case

Central Payment （ driver pay the money in the central parking lot ）

Step 1----- Vistor drive to the central payment room and give the card to the cashier Step 2----- Cashier swipe the card on the card issuer device. then system show how long he stay inside the parking lot and how much need to pay Step 3----- After pay the money. Cashier give back the card to the driver Step 4----- Driver take the card to the exit machine and insert it to the card acceptor. then barrier open Step 5----- After the car pass the loop coil. the boom barrier close

3rd Example of Case

Driver pay the money to the autopayment machine

Step 1----- Vistor drive to the Auto-payment Station and place card on the reader Step 2----- The auto-payment machine show how long the car stay and how much need to pay automatically Step 3----- Vistor Insert the Coin or Notes to the bill acceptor then print out receiption Step 4----- After pay the money. Vistor take the card to the exit machine and insert the card to the acceptor. then barrier open automatically Step 5----- After the car pass the loop coil. the boom barrier close

Specification

Model	SEWO CP9 Series Smart Parking Management System
Housing Dimension	380x355x1515mm
Housing Color	Gold, Black
Offline storage Capacity	10000pcs(Extendible)
Blacklist Capacity	100000pcs(Extendible)
Card Capacity	100000pcs(Extendible)
Working Temperature	－20℃～＋60℃
Working Conditional	Indoor / Outdoor
