Quick Details
-
Brand Name:
-
Anytester
-
Model Number:
-
HY-380
-
Measuring angle:
-
20°, 60°, 85°
-
Measuring spot (mm):
-
Gs (20°): 10*10
-
Index value:
-
0.1GU
-
Test modes:
-
Average mode, standard and test sample measurement mode
-
Accuracy:
-
Conform to JJG 696 standard for class one gloss meters
-
Test time:
-
< 1s
-
Data storage:
-
100 standard samples; 10000 test samples
-
Operating temperature:
-
0℃~40℃
-
Storage temperature:
-
-10℃~70℃
-
Relative humidity:
-
<85%, non-condensation
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
China
-
Brand Name:
-
Anytester
-
Model Number:
-
HY-380
-
Measuring angle:
-
20°, 60°, 85°
-
Measuring spot (mm):
-
Gs (20°): 10*10
-
Index value:
-
0.1GU
-
Test modes:
-
Average mode, standard and test sample measurement mode
-
Accuracy:
-
Conform to JJG 696 standard for class one gloss meters
-
Test time:
-
< 1s
-
Data storage:
-
100 standard samples; 10000 test samples
-
Operating temperature:
-
0℃~40℃
-
Storage temperature:
-
-10℃~70℃
-
Relative humidity:
-
<85%, non-condensation
Product Description

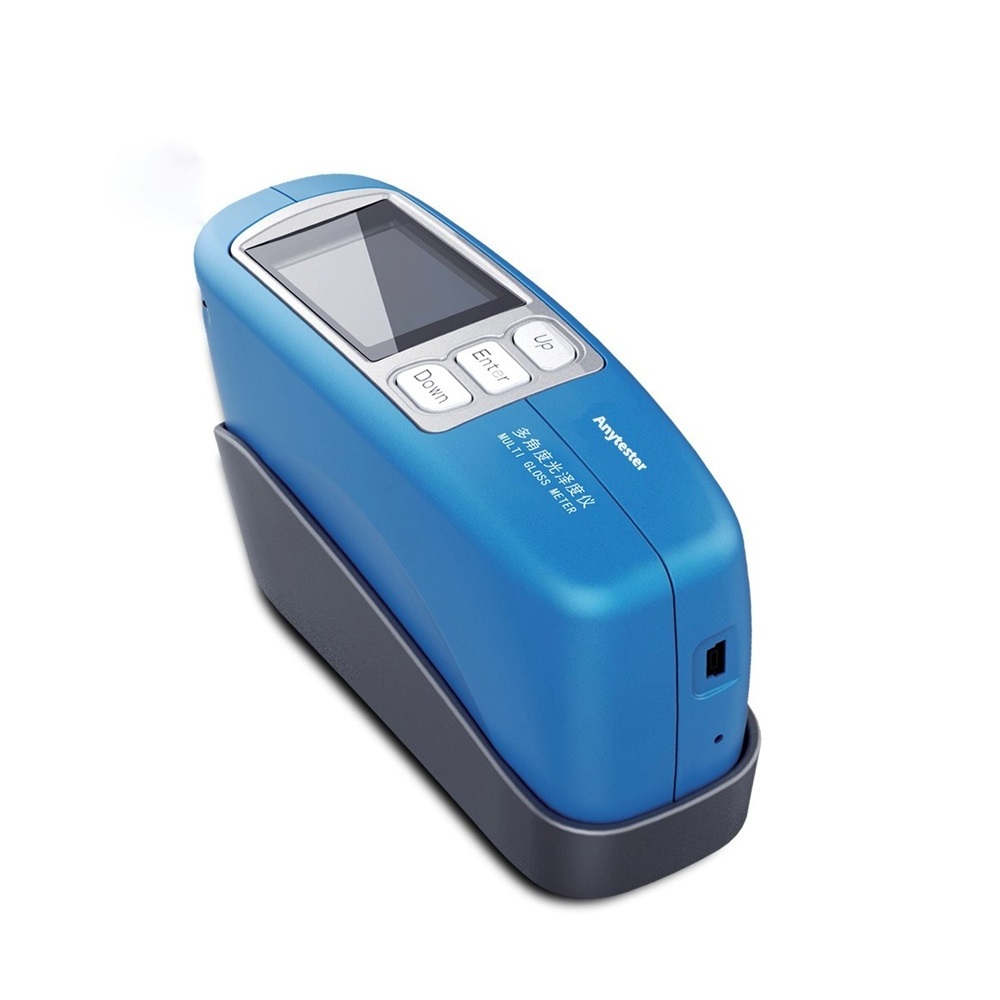

HY-380 Gloss Meter with multi angle
is mainly used in the surface gloss measurement for paint, plastic, metal, ceramics, building materials, textile, paper and so on.
Features
HY-380 Multi Angle Gloss Meter
Our gloss meters use top of the line sensors from Japan, high end OP chips and processor chips from the US to ensure highly precise gloss measurement for every piece of your measured data.
Our gloss meters conform to JJG 696 standard for class one gloss meters. Every machine has metrology accreditation certificate from State Key Laboratory of modern metrology and testing instruments and Engineering center of the Ministry of Education in China.
2. High Stability (Patent ZL2012201796876)
Uses our patent protected dual light path technology, our gloss meters have stability of 0.2GU
Every one of our gloss meter instruments has undergone the following:
412 calibration tests;
43200 stability tests;
110 hours of accelerated aging test;
and 17000 vibration tests.
Uses our patent protected dual light path technology, our gloss meters have stability of 0.2GU
Every one of our gloss meter instruments has undergone the following:
412 calibration tests;
43200 stability tests;
110 hours of accelerated aging test;
and 17000 vibration tests.
3. Comfortable Grip
The hull is made of Dow Corning TiSLV material, a desirable elastic material. It is resistant to UV and bacteria and usually do not cause allergy, for better user comfort.
4. Free APP
We offer free App for easier data transmission and display as well as the ability to view measured data at any time.
5. High Battery Capacity
We fully utilized every inch of space in the neat and comfortable instrument hull with specially designed 4.4V high density lithium battery, which has enough battery capacity to complete 54300 measurements before the battery runs out.
The hull is made of Dow Corning TiSLV material, a desirable elastic material. It is resistant to UV and bacteria and usually do not cause allergy, for better user comfort.
4. Free APP
We offer free App for easier data transmission and display as well as the ability to view measured data at any time.
5. High Battery Capacity
We fully utilized every inch of space in the neat and comfortable instrument hull with specially designed 4.4V high density lithium battery, which has enough battery capacity to complete 54300 measurements before the battery runs out.
Specification
|
Model
|
HY-380 Multi Angle Gloss Meter
|
|
Measuring angle
|
20°, 60°, 85°
|
|
Measuring range (GU)
|
Gs (20°): 0~2000
Gs (60°): 0~1000
Gs (80°): 0~160
|
|
Measuring spot (mm)
|
Gs (20°): 10×10
Gs(60°): 9×15
Gs (85°): 5×38
|
|
Index value
|
0.1GU
|
|
Test modes
|
Average mode, standard and test sample measurement mode
|
|
Repeatability
|
0-100GU: 0.2GU
100-2000GU: 0.2%GU
|
|
Accuracy
|
Conform to JJG 696 standard for class one gloss meters
|
|
Test time
|
< 1s
|
|
Data storage
|
100 standard samples; 10000 test samples
|
|
Operating temperature
|
0℃~40℃
|
|
Storage temperature
|
-10℃~70℃
|
|
Relative humidity
|
<85%, non-condensation
|
|
Port
|
USB, Bluetooth (optional)
|
|
Power supply
|
5V, 4 AAA alkaline battery
|
|
Dimensions
|
165*51*77mm
|
|
Weight
|
400g
|
Packing & Delivery
|
Packaging
HY-380 Multi Angle Gloss Meter
|
|
|
|
Size
|
165*51*77mm
|
|
|
Weight
|
400g
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
Payment
|
Payment Term
HY-380 Multi Angle Gloss Meter
|
T/T
|
EXW
|
30% T/T in advance, paid the balance before shipment
|
||
|
|
|
FOB
|
|
||
|
|
|
CFR(C&F)
|
|
||
|
|
|
CIF
|
|
||
|
|
L/C
|
L/C amount above 50,000 usd, we can accept L/C at sight
|
|
||
|
|
West Union
|
Amount lower than 5000usd
|
|
||
|
|
West Union
|
|
|
||
|
Delivery Time
|
30~40 days after receiving payment for one container
|
|
|
||
