TWH Single system 9G universal Computerized flat knitting machine school uniforms sweater Making Machine for collar
TWH Single system 9G universal Computerized flat knitting machine school uniforms sweater Making Machine for collar
TWH Single system 9G universal Computerized flat knitting machine school uniforms sweater Making Machine for collar
TWH Single system 9G universal Computerized flat knitting machine school uniforms sweater Making Machine for collar
TWH Single system 9G universal Computerized flat knitting machine school uniforms sweater Making Machine for collar
TWH Single system 9G universal Computerized flat knitting machine school uniforms sweater Making Machine for collar
TWH Single system 9G universal Computerized flat knitting machine school uniforms sweater Making Machine for collar
TWH Single system 9G universal Computerized flat knitting machine school uniforms sweater Making Machine for collar

TWH Single system 9G universal Computerized flat knitting machine school uniforms sweater Making Machine for collar

FOB Reference Price: Get Latest Price
≥1 Sets
US $3100
≥12 Sets
US $3000
≥50 Sets
US $2800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Knitting Method:
Double
Computerized:
Yes
Gauge:
7 GG, 12 GG, 14 GG, 16 GG, 9 GG, 10GG, 16GG, 3-5-7 multi-gauge
Knitting width:
52 inch
Place of Origin:
Jiangsu, China
Brand Name:
TWH
Power:
2 W
Weight:
700 KG
Dimension(L*W*H):
3000*1100*1650mm
Marketing Type:
Hot Product
Product Name:
Computerized Flat Knitting Machine
Application:
Rib, collar
System:
Single System Computerized Flat Knitting Machine
Knitting system:
Single System
Knitting Width:
56 inch
Color:
Customer Requirements
Speed:
1m/sec
Machine Type:
Small Dia Circular Knitting Machine
Needles:
GROZ BECKERT-GERMANY

Quick Details

Type:
jacquard
Production Capacity:
1m/sec
Knitting Style:
Warp
Knitting Method:
Double
Computerized:
Yes
Gauge:
7 GG, 12 GG, 14 GG, 16 GG, 9 GG, 10GG, 16GG, 3-5-7 multi-gauge
Knitting width:
52 inch
Place of Origin:
Jiangsu, China
Brand Name:
TWH
Power:
2 W
Weight:
700 KG
Dimension(L*W*H):
3000*1100*1650mm
Marketing Type:
Hot Product
Product Name:
Computerized Flat Knitting Machine
Application:
Rib, collar
System:
Single System Computerized Flat Knitting Machine
Knitting system:
Single System
Knitting Width:
56 inch
Color:
Customer Requirements
Speed:
1m/sec
Machine Type:
Small Dia Circular Knitting Machine
Needles:
GROZ BECKERT-GERMANY

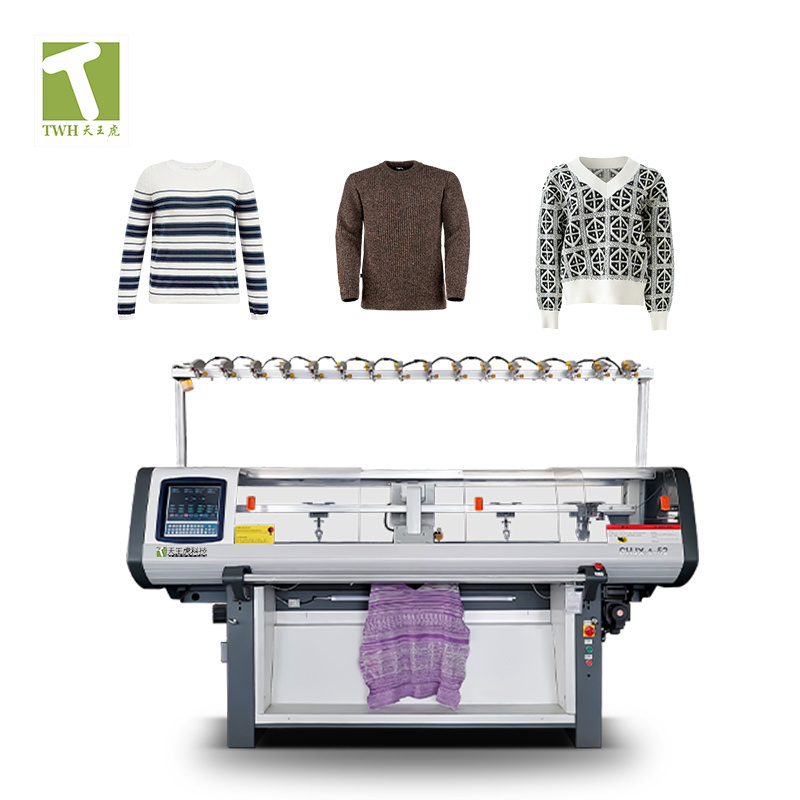

Single system flat knitting machine
It applies unique cam and needle bed to achieve transfer,tuck,eyelet stitch,jacquard,apparent shape, hidden shape and other regular pattern knitting functions.It can knit basic stitch like plain stitch,rib fabric,links and links,interlock stitch,etc.irregular multi-color jacquard,twist flowers weft organization,aran,cord weave,racked stitch,cable,intarsia,etc.
It is suitable to use synthetic,wool,acrylic,mixed fiber,yarn material etc to knit ready-made cardigan,hat,gloves,scarf and accessories of cloth.Machine through subsection control and adjustable pulling rev,it can complete complex knitting and improve production efficiency.
Gauge
5G,7G,9G,10G,12G,14G,16G
Knitting width
52,60,72,80,100inch
Knitting system
Single system
Knitting function
Stitch Trasfer, independent suspension,pointelle,intarsia,jacquard,apparent or hide shaping and other regular or inregular patterns. However, the front needle plate can be used for hanging the eyes, and the back needle plate can be used for knitting. It is not allowed to hang the eyes on one needle plate at the same time.
Knitting speed
Controlled by servo motor with 32 sections optional, Max 1.2M/S.The serve motor combines precise feedback control system with high-speed digital signal processor(DSP)to control IGBT to achieve accurate electric current output.
Racking system
Controlled by AC servo-motor,racking within 2 inches an with fine adjusting function.
Stitch density
Controlled by stepping motor, 32 sections stitch selectable adjustable scopesupported by subdivision technology: 0-650, the length of the knitwear can be accurately controlled.
Stitch transfer
Triangular integrated designing enables independent or simultaneous stitch transfer to realize more efficient production.
Roller system
Infrared alarm,Computer programs instruction, stepper motor control,32-stagetension selection with an adjustable range between 0-100.
Yarn carrier
3 guide rails and 6 nozzles,shiftable at any postion of the needle bed.
Protection system
The machine alarm system will set off when yarn-breaking, knots, floating yarn,rewinding, end of knitting, racking failure, needle breakage or Program error, also set up the safety auto-lock protect device.
Control system
1.LCD touch screen, graphical interface.USB and network compatible,with expanded memory of up to 2G.A great amount of patterns can bestores and mobilized for use at any time as perproduction requirements.
2.Monitoring display:Various operating parameters can be displayed and can be adjusted anytime when the machine is running,making operations as convenient and time-saving as possible.
3.Design system and control system(software)are easy to update for free. 4.Multi-language operating system:There are
Chinese,English,Spanish andArabic Versions.Languages can be switched according to customer requirements.
Network function
High speed network can coordinate up to 250 machines；the knitting data can be uploaded downloaded and shared.
Power
Single-phase 110V/220V/three-phase 380V,adopt advanced CMOS technology,having memorizing function at power shock stop.(Optional British plug)
Volume
52inch:2480*800*1700mm(bare pager)/2580*900*1800mm(wooden case)
