Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
3
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FORSUN
-
Voltage:
-
AC380V/50HZ, 3PH
-
Dimension(L*W*H):
-
3200*2150*1850mm
-
Power (kW):
-
5
-
Weight (KG):
-
1500
-
Item:
-
1325 cnc router
-
color:
-
white (You can customize)
-
Working Area:
-
1300*2500*200mm
-
Spindle power:
-
3.0KW air cooling spindle ( Water for choose )
-
Inverter:
-
3.7KW Delta or Fuling Inverter
-
Drive and Motor:
-
Stepper motors and drivers
-
Transmission:
-
XY-axis:rack and gear Z-axis:ball screw
-
Controller:
-
DSP
-
Software:
-
Artcam/Type3
-
Guild Rail:
-
Taiwan HIWIN Square Linear Rail
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
3
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FORSUN
-
Voltage:
-
AC380V/50HZ, 3PH
-
Dimension(L*W*H):
-
3200*2150*1850mm
-
Power (kW):
-
5
-
Weight (KG):
-
1500
-
Item:
-
1325 cnc router
-
color:
-
white (You can customize)
-
Working Area:
-
1300*2500*200mm
-
Spindle power:
-
3.0KW air cooling spindle ( Water for choose )
-
Inverter:
-
3.7KW Delta or Fuling Inverter
-
Drive and Motor:
-
Stepper motors and drivers
-
Transmission:
-
XY-axis:rack and gear Z-axis:ball screw
-
Controller:
-
DSP
-
Software:
-
Artcam/Type3
-
Guild Rail:
-
Taiwan HIWIN Square Linear Rail
29% discount! Enclosed Type ATC 1325 Wood Carving Machine Woodworking Machinery CNC Router Customized

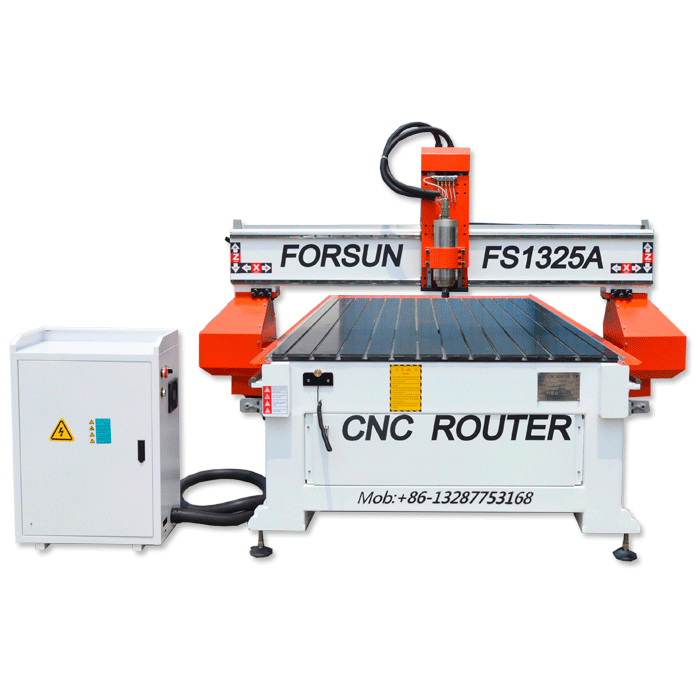

What is the feature of 1325 cnc router?
Ø Effective working area: 1300*2500mm*200mm
Ø 3KW water cooling spindle
Ø 3.7kw Taiwan Delta inverter
Ø DSP or NC Studio control system
Ø Leadshine steeper motor
Ø Vacuum & T-slot working table
Ø Taiwan TBI Ball Screw,Helical Rack and Pinion
| Technical Data | ||
|
NO |
Description |
Parameter |
|
1 |
Positioning Accuracy |
±0.03/300mm |
|
2 |
Max. Rapid Travel Rate |
80000mm/min |
|
3 |
Max. Working Speed |
45000mm/min |
|
4 |
Spindle Speed |
0-24000RPM |
|
5 |
Command Language |
G Code |
|
6 |
Flash Memory |
512M |
|
7 |
Collet |
ER32 |
|
8 |
X,Y Resolution |
<0.03mm |
|
9 |
Running Environment Temperature |
0 - 45 Centigrade |
|
10 |
Relative Humidity |
30% - 75% |
|
11 |
Packing Size |
3520*2280*2100mm |
|
12 |
N.W. |
1900KG |
What's the advantage of our wood cnc router?
Economy cnc router machine with heavy duty welded structure.
6.0kw water cooling spindle with 24000r/min.
DSP Controller ;easy operation ;convenient and intuitive.
Vacuum table could adsorb different size materials closely.
HIWIN linear rail from Taiwan for 3 aixs, more stable, it's lifetime is 10 times longer than common rail way.
WHAT is the Benefit of woodworking cnc router ?
the application of this cnc router machine:
♥ Furniture industries: woodworking,cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows, desks and chairs.
♥ Decoration industries: screens, wave boards, large-size wall hangings, advertising boards and sign making,3d art design.
♥ Arts & Crafts industries: Engrave on artificial woods, bamboos, organic boards, double-color boards and so on for achieveing effects of exquisite patterns and characters.
♥ Processing material: engraving, milling and cutting processing for acrylic, PVC, density boards, artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum.
Quality test of wood cnc router :
Customer in our factory from all over the world:
Why choose us?
HOW we Pack our cnc router?
1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
If there is still have any question, we will provide free professinal guide for you until you could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
|
