Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TIANYUE
-
Model Number:
-
TY-LMD-400
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
4580*1650*1850 mm
-
Weight:
-
3000 KG
-
Product name:
-

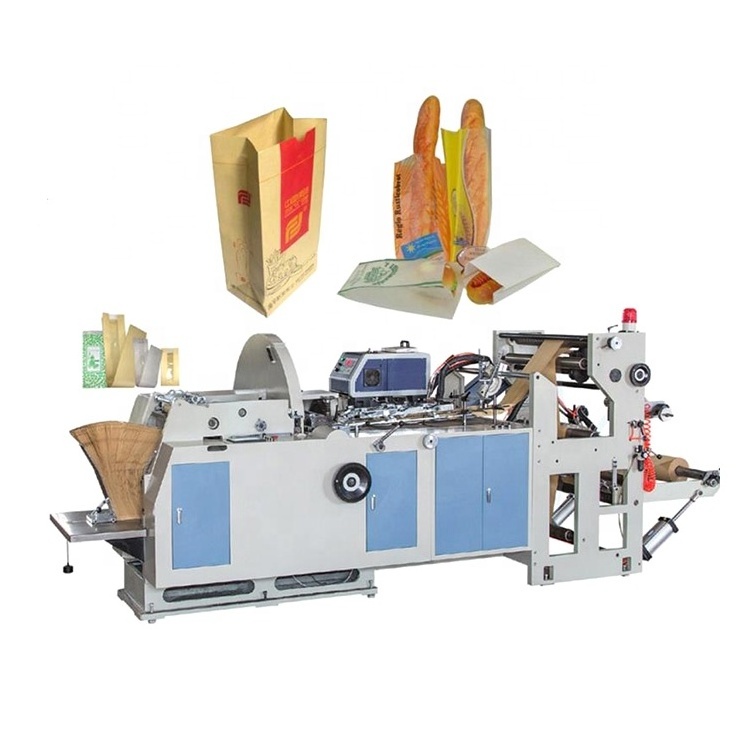

High Speed Small Cheap Paper Bag Making Machine
-
Max.Speed:
-
400 pcs/min
-
Paper Thickness:
-
30-80 gsm
-
Paper Roll Width:
-
220-700 mm
-
Max.Roll Diameter:
-
1000 mm
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Shopping Bag
-
Material:
-
Paper
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TIANYUE
-
Model Number:
-
TY-LMD-400
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
4580*1650*1850 mm
-
Weight:
-
3000 KG
-
Product name:
-
High Speed Small Cheap Paper Bag Making Machine
-
Max.Speed:
-
400 pcs/min
-
Paper Thickness:
-
30-80 gsm
-
Paper Roll Width:
-
220-700 mm
-
Max.Roll Diameter:
-
1000 mm
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE
1. The human-machine touch screen interface, the work condition can be shown in real- time.
2. Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3. Material lifting adopt pneumatic lift structure.
4. Automatic constant tension control system. The tension will be just right from beginning to end.
5. Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving, long life.
6. Thumb buttons, appressed bottom cutting device, bag type have many choices.
7. Don't stop machine adjust double bottomstructure, the adjustment will become moreintuitive, more simple, more time saving.
8. Glue roller air defense coating control, avoidgluing on besmear brushs hub surface directly, reduce unnecessary trouble.
9. Accurate color tracking system, color errorsautomatically shut down.
10. Automatic lubricating oil supply system.
|
Type |
LMD-400 |
LMD-600 |
|
Cutting Length ( C ) |
150-460 mm |
230-625 mm |
|
Bag Length ( H ) |
145-455 mm |
225-620 mm |
|
Bag Width ( L ) |
70-280 mm |
|
|
Gusset Depth ( S ) |
0-50 mm |
|
|
Standard Flap ( P ) |
12-20 mm |
|
|
Max.Speed |
400 pcs/min |
|
|
Paper Thickness |
30-80 gsm |
|
|
Paper Roll Width |
220-700 mm |
|
|
Max.Roll Diameter |
1000 mm |
|
|
Reel Inner Diameter |
76 mm |
|
|
Total Power |
6 kw |
|
|
Weight of Machine |
3000 kg |
3100 kg |
|
Overall Dimension(LxWxH) |
4580×1650×1850 mm |
4680×1650×1850 mm |
