Quick Details
-
Warranty:
-
One year, 1 Year
-
Brand Name:
-
SHUIWANG
-
Model Number:
-
QW
-
Place of Origin:
-
Shandong, China
-
Horsepower:
-
1hp-420hp
-
Cable Length:
-
According to customer requirements
-
Outlet Size:
-
50mm-60mm
-
Power:
-
0.75 KW-315 KW, Electric
-
Theory:
-
Centrifugal Pump
-
Product name:
-
mud pump sand dredging slurry pump mud suction pump for dirty water
-
Material:
-
Stainless steel
-
Type:
-
Vertical
-
Motor:
-
100% Copper Wire
-
Name:
-
sand dredging slurry pump mud suction pump for dirty water
-
Fuel:
-
electric
Quick Details
-
Application:
-
Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking water treatment, Family Homes, Food and Beverage Industry, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Raw Water Intake, temperature control, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
High Pressure or Low Pressure
-
Voltage:
-
380V/660V/1140V
-
Warranty:
-
One year, 1 Year
-
Brand Name:
-
SHUIWANG
-
Model Number:
-
QW
-
Place of Origin:
-
Shandong, China
-
Horsepower:
-
1hp-420hp
-
Cable Length:
-
According to customer requirements
-
Outlet Size:
-
50mm-60mm
-
Power:
-
0.75 KW-315 KW, Electric
-
Theory:
-
Centrifugal Pump
-
Product name:
-
mud pump sand dredging slurry pump mud suction pump for dirty water
-
Material:
-
Stainless steel
-
Type:
-
Vertical
-
Motor:
-
100% Copper Wire
-
Name:
-
sand dredging slurry pump mud suction pump for dirty water
-
Fuel:
-
electric
|
|
Specification
|
|
|
|
Inlet diameter
|
50-60mm
|
|
|
|
Capacity Q
|
10-5000m
3
/h
|
|
|
|
Head H
|
5-60m
|
|
|
|
Power P
|
0.75-315KW
|
|
|
|
Motor
|
Brand optional,100% Copper Wire
|
|
|
|
Voltage
|
380V/415V/660V/1140V
|
|
|
|
Material
|
Cast Iron/SS316/SS304/Copper,Can be customized
|
|
|
|
Scope of supply
|
Pump,Motor,Pipe,Control cabinet,Flange,Wearing parts,Other Accessories
|
|
|
|
Certification
|
ISO 9001
|
|
|
|
Warranty
|
One Year/According to customer requirements
|
|
|

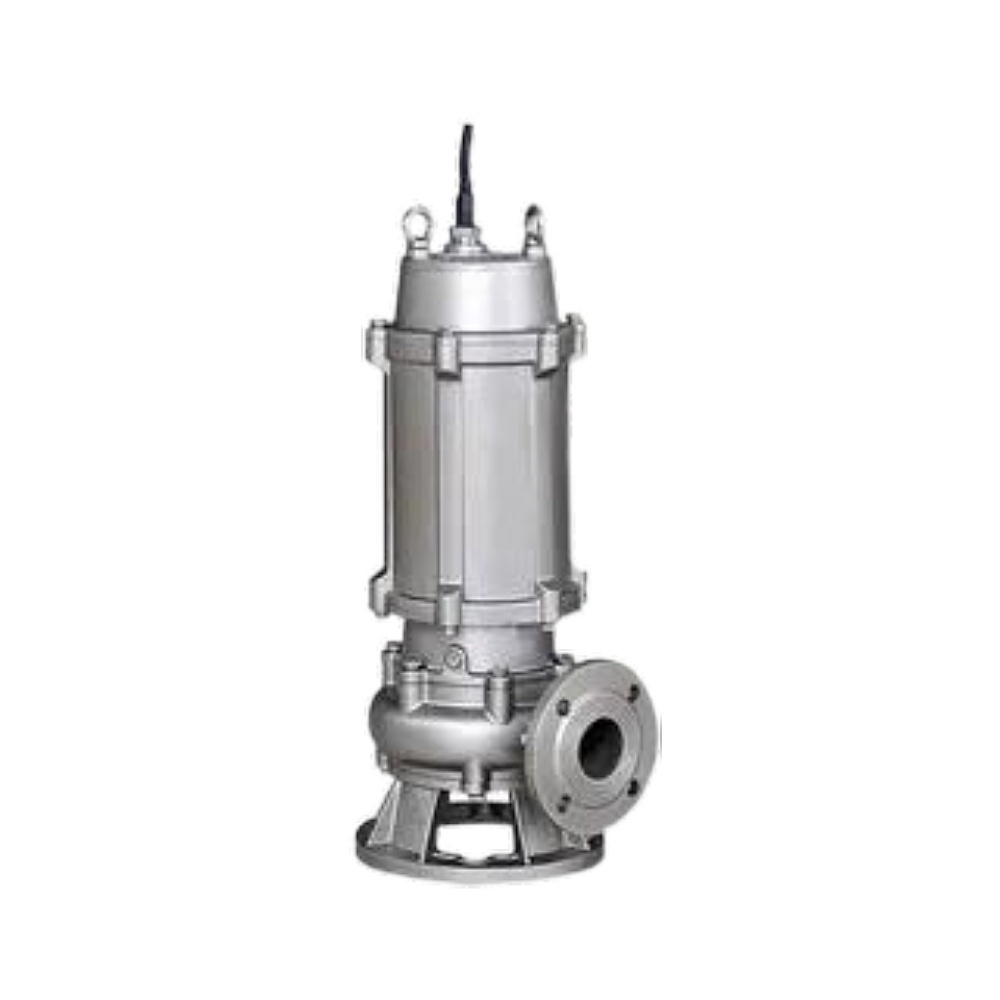

QW series submersible sewage pump is a sewage conveying equipment developed by our company on the basis of reference and absorbing foreign advanced technology and adopting the most excellent water conservancy model in China.It has the characteristics of anti-winding, no clogging, high efficiency, energy saving, safe,reliable operation, long life, automatic control, automatic coupling,good sewage discharge performance,convenient installation and movement.
F
or example,150QW100-15-11
150——Diameter of outlet:150mm
QW——Submersible sewage pump
100——Flow:100m³/h
15——Head:15m
11——Motor power:11kw
150——Diameter of outlet:150mm
QW——Submersible sewage pump
100——Flow:100m³/h
15——Head:15m
11——Motor power:11kw
|
Model
|
Capacity
(m
3
/h)
|
Head
(m)
|
Power
(kw)
|
Outlet Diameter
(mm)
|
|
50QW
|
7-35
|
7-30
|
0.75-5.5
|
50
|
|
65QW
|
25-45
|
7-30
|
2.2-7.5
|
65
|
|
80QW
|
35-60
|
7-22
|
3-7.5
|
80
|
|
100QW
|
70-120
|
7-35
|
4-15
|
100
|
|
150QW
|
140-220
|
6-40
|
7.5-37
|
150
|
|
200QW
|
250-650
|
6-40
|
11-132
|
200
|
|
250QW
|
400-900
|
6-30
|
18.5-110
|
250
|
|
350QW
|
800-1300
|
10-40
|
45-220
|
350
|
|
400QW
|
1200-2000
|
10-50
|
75-315
|
400
|
|
500QW
|
2600-3600
|
10-24
|
160-315
|
500
|
|
600QW
|
3000-5000
|
12-24
|
185-315
|
600
|
It is especially suitable for conveying liquid media containing dirt, solid particles and long fibers. It is widely used in sewage discharge in many industries such as municipal engineering, sewage treatment plants, industrial and mining enterprises, hospitals,buildings, hotels, restaurants, etc.
The QW series submersible sewage pump is a vertical lower pump type structure consisting of three parts: motor, water pump and sealing device.The motor and the water pump are integrated coaxially. They submerged into the water during working. The QW series submersible sewage pump is compact in structure and equipped with various status indicators and protection devices to make the pump safe and reliable.The QW series submersible sewage pump has compact structure and equipped with various status indicators and protection devices to make the pump safe and reliable.
1 / Q: Are you a manufactory or trading company?
A: We are water pump manufactory with more than 30 years production experience.
2 / Q: What’s your MOQ?
A: Trial sample order is OK .
3 / Q: What’s your payment terms?
A: T/T , L/C , ......
4 / Q: What certificates do you have ?
A: CE , ISO 9001 , UL .....
5 / Q: How about the warranty ?
A: One year warranty for pumps .
6 / Q: What is the delivery time ?
A: 10-30 days according to customer quantities .
7 / Q: Can you do OEM brand ?
A: Yes, Welcome .
8 / Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the gas ?
Air?Water vapor?Oxygen?
What is the pressure ?The Max.suction capacity range ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you.
If you have special requirement, such material, please inform us .
9 / Q: How to replace parts ?
A: In the order period, we will list our vulnerable parts and their quantities to our customer, and sold at competitive price,then ship together with pumps if customer needs.
FOR MORE QUESTIONS, PLEASE CONTACT OUR SALES.
