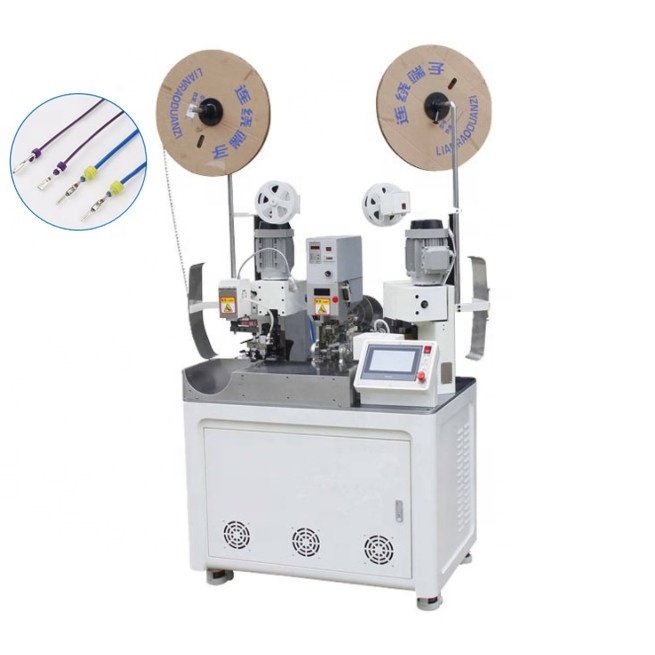

X-CM205 Automatic wire cutting stripping seal inserting terminal crimping machine
X-CM205 Automatic wire cutting stripping seal inserting terminal crimping machine
X-CM205 Automatic wire cutting stripping seal inserting terminal crimping machine
X-CM205 Automatic wire cutting stripping seal inserting terminal crimping machine

X-CM205 Automatic wire cutting stripping seal inserting terminal crimping machine

FOB Reference Price: Get Latest Price
≥1 Pieces
US $19800
≥10 Pieces
US $16800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
X-CM205
Function:
Cut & strip & seal insert & crimp
Voltage:
220V/50~60hz
Power Rate:
2000W
Cutting length:
50mm-9999mm
Cutting Tolerance:
+/-0.1mm
Stripping Length::
0.1mm-15mm
Suitable wire size:
AWG16#-AWG28#
Crimping Force:
2Ton
weight:
350KG
Dimension:
1000*750*1650MM

Quick Details

Use:
Multifunctional
Place of Origin:
Guangdong, China
Brand Name:
X Cable tech
Model Number:
X-CM205
Function:
Cut & strip & seal insert & crimp
Voltage:
220V/50~60hz
Power Rate:
2000W
Cutting length:
50mm-9999mm
Cutting Tolerance:
+/-0.1mm
Stripping Length::
0.1mm-15mm
Suitable wire size:
AWG16#-AWG28#
Crimping Force:
2Ton
weight:
350KG
Dimension:
1000*750*1650MM
Product Description
Specification

Feature

1): A multi-function automatic machine: it can cut wire, strip, waterproof insert, double-ends crimp. (2): Advanced software and touch screen technology make the operation easy, and all the parameters of the machine are operated on the display screen. (3): Sturdy, durable and stable; some raw materials of this machine have been heat-treated before being used, blackened and hard-oxidized. 4): Double wire feeding motor is used to avoid the problems of wire feeding length and wire creasing. (5): And complete detection functions of accessories: whether there is a wire, the wire is knotted, the crimping is bad, and the air detection. (6): The crimping position adopts an ultra-quiet terminal machine, which has low noise and uniform strength. It can be equipped with horizontal and vertical molds. (7): All pressure monitoring instruments on the market can be used.

X-CM205A Wire cutting & stripping+seal inserting+crimping machine (1 crimp, 1 seal) X-CM205B Wire cutting & stripping+seal inserting+crimping machine (2 crimp, 1 seal) X-CM205C Wire cutting & stripping+seal inserting+crimping machine (2 crimp, 2 seal)
Model Number
CM205A
(1 end sealing, 1 end crimping)
CM204B
(1 end sealing, 2 ends crimping)
CM204C
(2 ends sealing, 2 ends crimping)
Function
Cut & strip & seal& crimp
Cut & strip & seal& crimp
Cut & strip & seal & crimp
Voltage
220V/50~60hz
220V/50~60hz
220V/50~60hz
Power Rate
2000W
2500W
2500W
Cutting Length:
55mm—9999mm
55mm—9999mm
55mm—9999mm
Cutting Tolerance:
+/-0.1mm
+/-0.1mm
+/-0.1mm
Stripping Length:
0.1mm-8mm
0.1mm-8mm
0.1mm-8mm
Suitable wire size:
AWG16#-AWG28#
AWG16#-AWG28#
AWG16#-AWG28#
Crimping Force:
2.0T
2.0T
2.0T
Applicator
OTP/ Europe Style available
OTP/ Europe Style available
OTP/ Europe Style available
Dimension
800*830*1530(mm)
1000*750*1650MM
1000*750*1650MM
Weight
315KG
480KG
480KG
