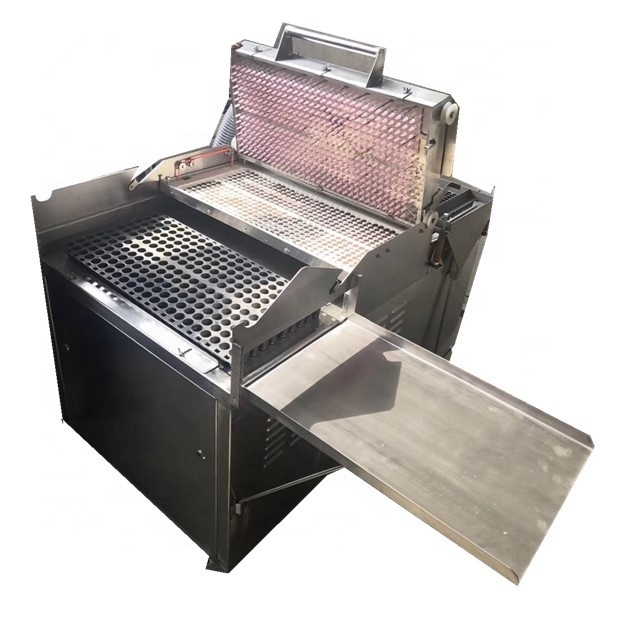

eggplant/ lettuce/ cucumber seeds planting machine for seedlings transplant

Outline

Pressure Point flip-precision seeder is in accordance with domestic vegetable and flower seedling production and development of the status quo. And medium-sized enterprises to meet the seedling production, agricultural production cooperatives, private farms, vegetable and flower production base of planting seedlings need. We are committed to improving the efficiency of plug seedlings sowing, planting seedlings significantly reduce production labor costs, improve quality seed production.

Through rational design, improve quality and performance while reducing costs. The highest price, the lowest price to help customers. Whole machine made of stainless steel, the core components of imported parts

Efficient Plug planter is simple, users only need to provide universal 220V power supply can be put to work immediately, without professional maintenance staff. The small size, light weight, flexible operation, simple structure, pressure points, take seed, planting once completed.

1.750 watts import spin snail fan, strong suction.

2. made of high quality stainless steel.

3. Depending on the seed and planting requirements, configure the appropriate seed sowing and the suction nozzle plate, the smallest seed must be greater than 0.2mm, the maximum size of not more than soybeans. Conventional pepper, tomato, flower seeds are applicable.

4. seeded plate 288 can be equipped with holes, 200 holes, 128 holes, 98 holes, 72 holes, 50 holes. Plug sowing plate and supporting Plug specifications must be 54 * 28cm.

5. sown once a plate, planting more than 500 per hour, seeding rate: 95%. The use of efficient, easy to operate.

Third, installation, commissioning and operation process

Ready to work:

1, planter head turned 90 degrees, the corresponding installation Suction plate.

Bolt (4), turn on the power switch (220 volts) Look around the periphery seal leaks, it is determined not leak after turning off the power switch.

2, corresponding to the pressure put on want-well plate, with clamps.

3. Find the closest match to the needle depending on the seed.

A, choose several Suction Head (needles), insert Suction board (8-10) months

B, take a small amount of seed clean and free of impurities (if impurities, purity is not high, easy to plug Suction Head).

Test whether suck a small amount of seed into a small container, turn the machine switch, fan work, test out the best match of the needle.

C, each guaranteed to suck suck seed head on a seed, if the smoke is not the description of a small needle, and if a few instructions suck big needle.

D, testing needle, find the best match Suction Head (needles).

F, find the right kind of head post, according to the aspiration needle plate number of species, all kinds of plug suction head.

machine parameters
