Quick Details
-
Applicable Models:
-
Obdii Protocols Vehicle
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Lonauto OBD
-
Model Number:
-
V03H2
-
Warranty:
-
12 Months
-
Product Name:
-

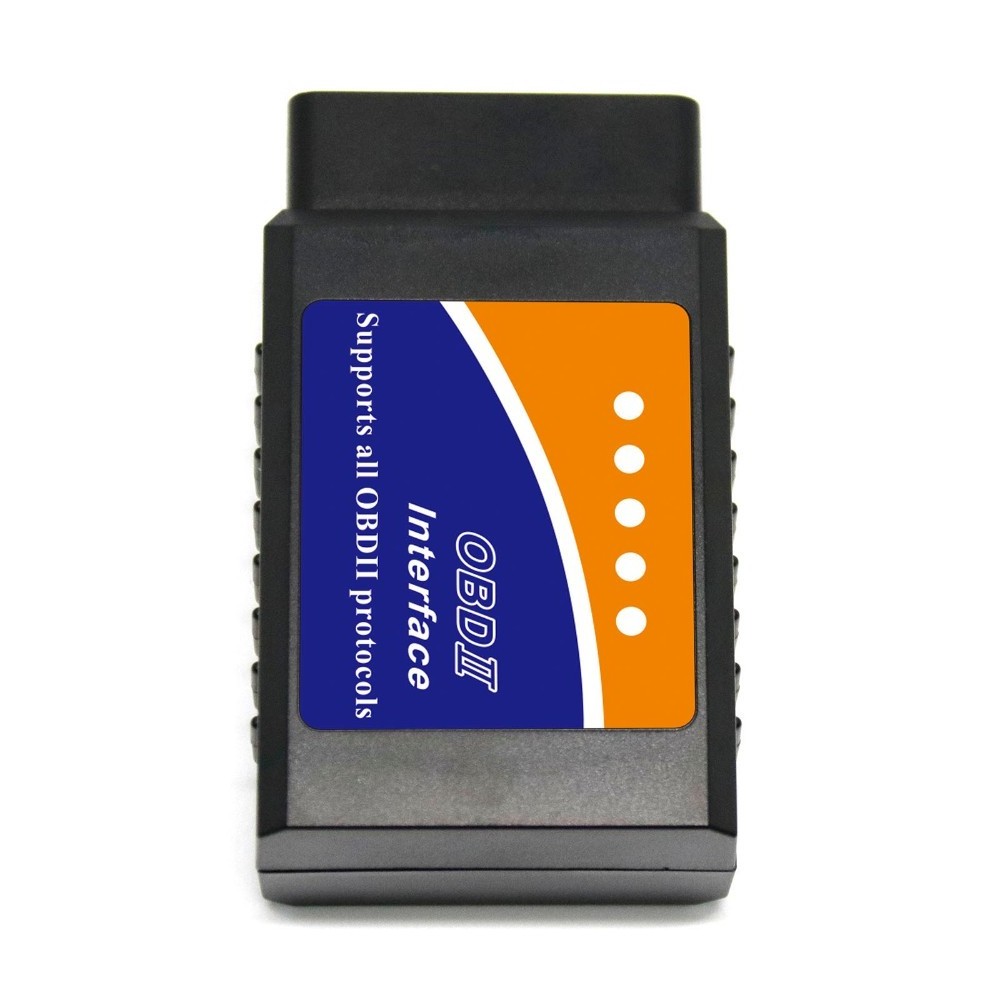

OBD2 Automotive Diagnostic Tool
-
Color:
-
Black/Customize
-
communication method:
-
Bluetooth2.0
-
Software Platform:
-
Support Android / Windows
-
Operating Current:
-
45mA
-
Operating Temperature:
-
-40℃~85℃
-
Vesion:
-
V1.5
-
Keywords:
-
Obd 2 Car Diagnostic Tool
-
Special Features:
-
Read And Clear Engine Trouble Code
-
Function:
-
Professional EOBD/OBD2 Scanner
Quick Details
-
Car Fitment:
-
Universal
-
Voltage:
-
9-16V
-
Power:
-
3w
-
Applicable Models:
-
Obdii Protocols Vehicle
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Lonauto OBD
-
Model Number:
-
V03H2
-
Warranty:
-
12 Months
-
Product Name:
-
OBD2 Automotive Diagnostic Tool
-
Color:
-
Black/Customize
-
communication method:
-
Bluetooth2.0
-
Software Platform:
-
Support Android / Windows
-
Operating Current:
-
45mA
-
Operating Temperature:
-
-40℃~85℃
-
Vesion:
-
V1.5
-
Keywords:
-
Obd 2 Car Diagnostic Tool
-
Special Features:
-
Read And Clear Engine Trouble Code
-
Function:
-
Professional EOBD/OBD2 Scanner
|
Product Name
|
OBD2 Auto Diagnostic Scanner
|
|
Master Chip
|
Pic18f25k80
|
|
Working Voltage
|
DC 9V-16V
|
|
Operating Temperature
|
0-60℃
|
|
Working Current
|
45mA
|
|
Product Size
|
79*46*25.5MM
|
|
Product package
|
Color Gift Box
|
|
Warranty
|
1 year
|
Bluetooth ELM327 Description:
OBD-II standard is supported by the vehicles(which car support the 9 obdii protocols): U.S. since 1996 European since 2003 Japanese since 2005 support Smartphone(Android, Symbian), PC(Windows XP, Windows 7 and Windows 8 and Windows 10).
Multi-Protocol Support:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
The program lets you perform the following operations:
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3. Display current sensor data, including:
4. Engine RPM
5. Calculated Load Value
6. Coolant Temperature
7. Fuel System Status
8. Vehicle Speed
9. Short Term Fuel Trim
10. Long Term Fuel Trim
11. Intake Manifold Pressure
12. Timing Advance
13. Intake Air Temperature
14. Air Flow Rate
15. Absolute Throttle Position
16. Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status
18. Fuel Pressure
AND Many others...
For Android version: Torque, inCarDoc, DashCommand, EOBD, Car Scanner ELM OBD2, OBD Auto Doctor, OBD Fusion;
For Symbian version: OBDScope.
