Higher Capacity Sunflower Thresher Machine Sunflower Separating Machine For Sunflower Oil Production Line

Higher Capacity Sunflower Thresher Machine Sunflower Separating Machine For Sunflower Oil Production Line

FOB Reference Price: Get Latest Price

≥1 Sets

US $1600

≥5 Sets

US $1550

≥10 Sets

US $1500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: hongle

Voltage:: 220/380v

Dimension(L*W*H):: 2.3*1.4*1.3m

Weight:: 500 KG

Product name:: Higher Capacity Sunflower Thresher Machine

Raw material:: Sunflower

Advantage:: Energy Saving

Application:: Oil Production Line

Application range:: Sunflower

Capacity:: 500-1000kg/h

Power:: 7kw

Volage:: 220v

MOQ:: 1 Set

Package:: Wooden Case

Quick Details

Type:: Sunflower seeds thresher

Use:: Oil or snack

Place of Origin:: Henan, China

Brand Name:: hongle

Voltage:: 220/380v

Dimension(L*W*H):: 2.3*1.4*1.3m

Weight:: 500 KG

Product name:: Higher Capacity Sunflower Thresher Machine

Raw material:: Sunflower

Advantage:: Energy Saving

Application:: Oil Production Line

Application range:: Sunflower

Capacity:: 500-1000kg/h

Power:: 7kw

Volage:: 220v

MOQ:: 1 Set

Package:: Wooden Case

Higher Capacity Sunflower Thresher Machine Sunflower Separating Machine For Sunflower Oil Production Line

Product Description

1. Introduce of Sunflower Thresher Machine

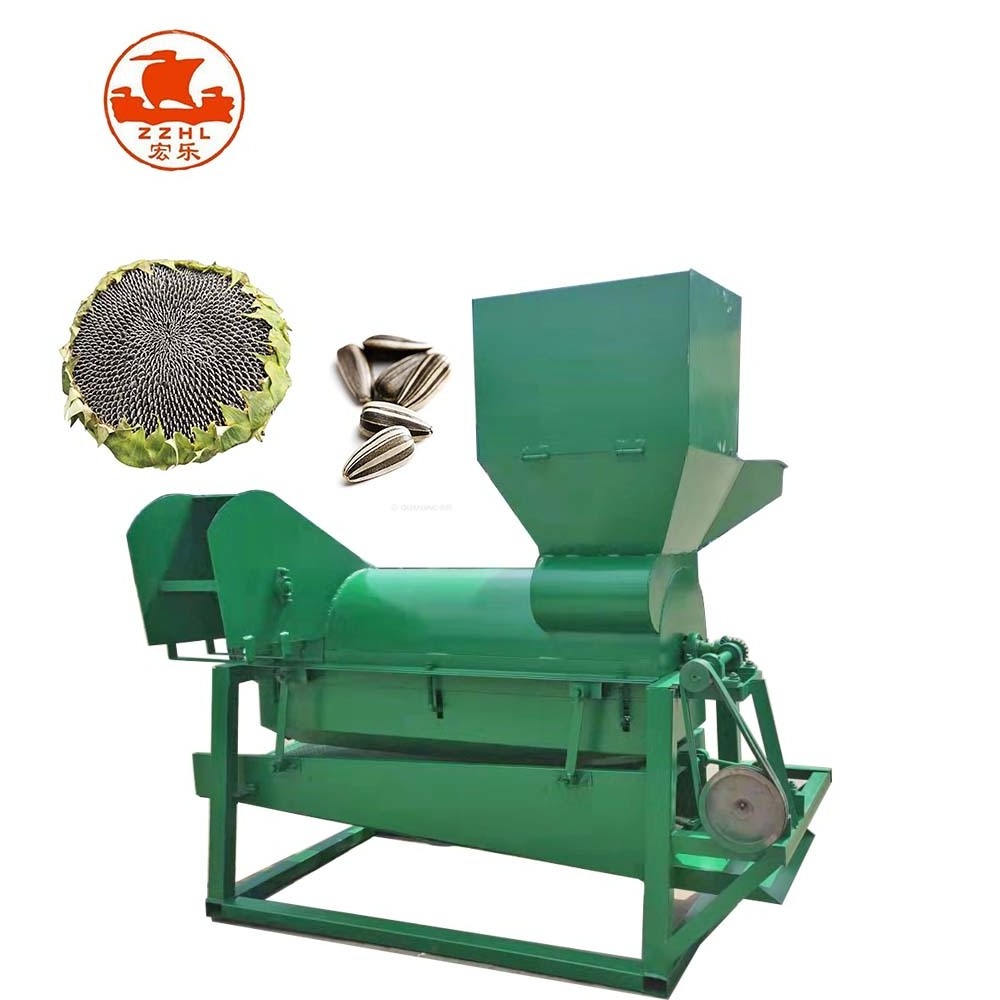

Sunflower thresher machine is a special machine for threshing sunflower seed from the disk. Through broken the sunflower disk make the seed drop down to the screen device. Then the screen device shakes to separate the seeds from the residue disk pieces. All the processng is safe, fast and clean. It can keep the seeds complete.
2.Features
1.This machine can thresher the sunflower seeds automaticly, then you can put the oil press machine to press sunflower oil.

2.It is simple reasonable structure, convenient installation, threshing effect is good, high efficiency,

3.It can fitted with motor, diesel engine, tractor, can be connected to the small-size 4-wheel trailing wheel, tricycles, etc.

3.Specifications:

Model	HL-ST350	HL-ST450
Power	4kw or 8hp diesel engine	7.5kw or 15hp diedel engine
Speed	560r/min	560r/min
Productivity	800-1000kg/h	1500-2000kg/h
Threshed rate	>98%	>98%
Broken rate	<0.1%	<0.1%
Dimensions	170013001100mm	350018002500mm

Detailed Images

Sunflower Oil Pressing Machine

This screw oil press machine can process sunflower seeds, rice bran, tung oil seeds, corn, oil palm fruit, black mullet seeds, pepper seeds, sesame seeds, rapeseed, soybeans, tea seeds, cottonseed, peanuts and so on.
The screw press is mainly composed of electrical control, automatic heating, adjustment, transmission and vacuum filter oil:
1. The automatic control part is composed of an air switch, an AC contactor, a temperature controller, and an automatic circuit protection device.
2. The heating press part consists of a heater, a squeeze screw and a squeeze bar, and a body assembly.
3. The transmission part consists of a main shaft and a reduction gear box, a pulley, and a motor wheel.
4. The adjustment part consists of adjusting screw, adjusting nut, handle, lock nut and so on.
5. The vacuum filter oil is partially composed of vacuum pump and oil filter barrel.

Parameter list

Model	Capacity	Power	Heating Power	Vacuum pump	Net Weight	Gross Weight	Size(mm)
HL-80A	80-100kg/h	5.5kw	2.5kw	4L	630KG	780KG	17009501650
HL-100A	150-200kg/h	7.5kw	3kw	8L	900KG	1100KG	210010501750
HL-120A	250-300kg/h	11kw	3kw	10L	950KG	1150KG	220011001800
HL-130A	300-400kg/h	18.5kw	3kw	10L	1100KG	1200KG	250012002100
HL-165A	450-500kg/h	30kw	3kw	10L	2400KG	2600KG	265012502430
