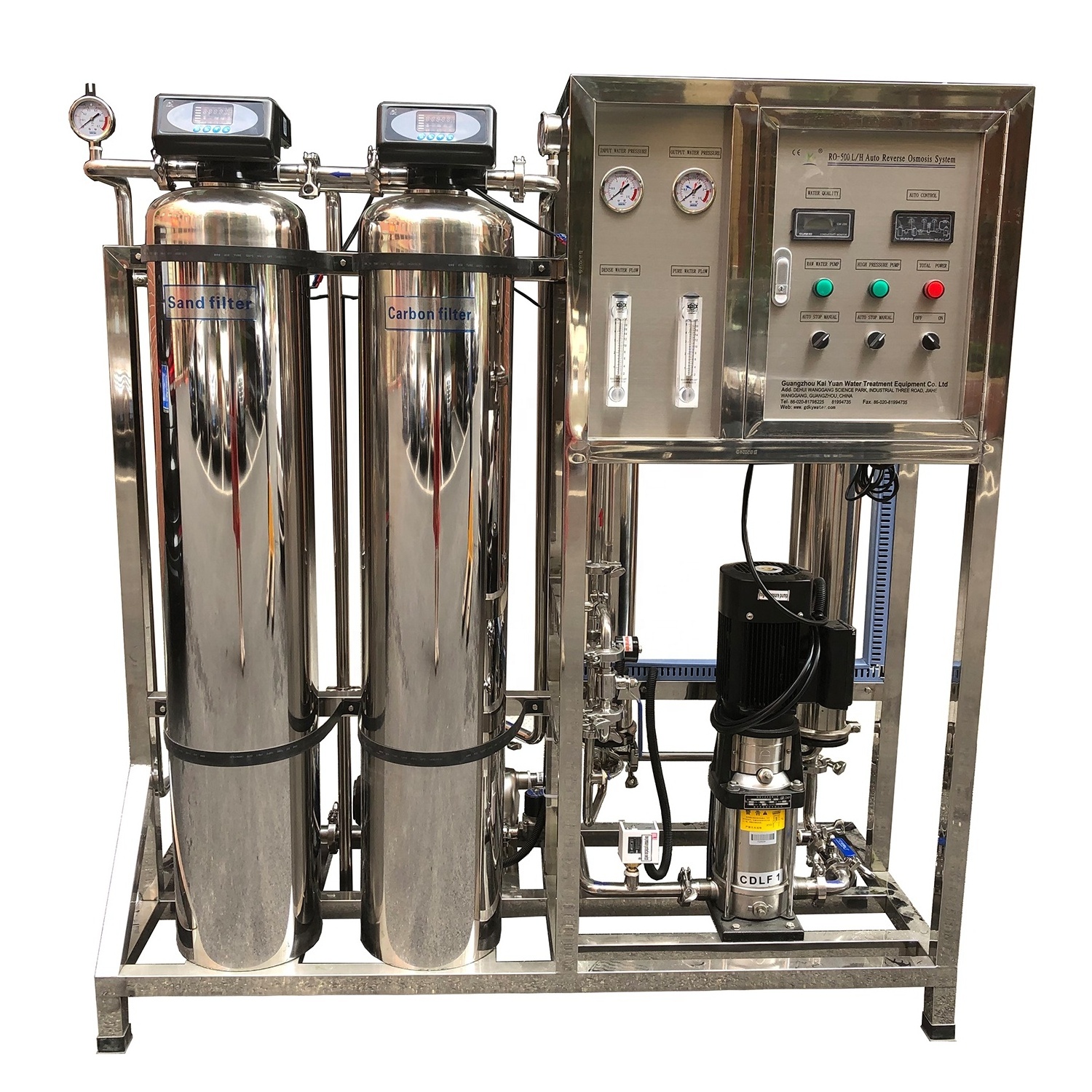

500L/H Fully Auto Water Softener Mineral Water filtration Hydrogen Electrolyzer Battery Osmosis Water Treatment Machinery

500L/H Fully Auto Water Softener Mineral Water filtration Hydrogen Electrolyzer Battery Osmosis Water Treatment Machinery

FOB Reference Price: Get Latest Price

≥1 Sets

US $1750

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 1.85kw, 1.85 KW

Weight (KG):: 400 kg

Production capacity:: 500L/H

Pretreatment filter:: Quartz sand/activated carbon/water softener/PP filter

Power supply:: 380V 50Hz 3phase(if special, can customize)

Control valve:: Manual or Automatic

Pumps:: CNP or Grundfos

RO membrane:: USA Filmtec DOW

Optional parts:: UV light/ozone generator/water softener

Chemical dosing system:: Need when raw water is with high hardness

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Kaiyuan

Material:: wooden case

Power:: 1.85kw, 1.85 KW

Weight (KG):: 400 kg

Production capacity:: 500L/H

Pretreatment filter:: Quartz sand/activated carbon/water softener/PP filter

Power supply:: 380V 50Hz 3phase(if special, can customize)

Control valve:: Manual or Automatic

Pumps:: CNP or Grundfos

RO membrane:: USA Filmtec DOW

Optional parts:: UV light/ozone generator/water softener

Chemical dosing system:: Need when raw water is with high hardness

Product Description

Reverse osmosis (RO)system is a water purification process that uses a partially permeable membrane to separate ions, unwanted molecules, larger particles and colloid, organic impurity, heavy metal ion from drinking water.
Reverse osmosis system can remove many types of dissolved and suspended chemical species as well as biological ones (principally bacteria) from water, it is also effective with asbestos, many taste, color and odor producing chemicals, particulates, total dissolved solids, turbidity and radium, is used in both industrial processes and the production of potable water.

Manual control valve

You need to rotate the handle to finish the fast rinsing and backwashing of filter materials, and then rotate the handle to filter (normal operation). It is easy to operate

Automatic control valve

it can automatically complete the fast rinsing and backwashing of filter materials, and then automatically turn to filter (normal operation) by setting the time on the program

Specified configuration of RO system（Each part is optional, for reference)
Item	Material/Model	Brand	Function
Raw water pump	SS304/SS316	Lingxiao/CNP/Grundfos/ Danfoss	Provide pressure for raw water
Quartz sand filter	FRP/SUS-304/SUS316	China	Get rid of turbidity, suspended matter, colloid, etc.
Activated carbon filter	FRP/SUS-304/SUS316	China	Remove the color, free chloride, organic matter, absorb odor, smell, etc... to make clear water
Anti scalant chemical dosing system /water softener(optional)	FRP/SUS-304/SUS316	China	Remove Calcium ion(Ca2+) and magnesium ion(Mg2+) of removing hardness from water.
Security filter	SUS304 1mircon/5mircon	China	Block impurities greater than 5micron (1micron)
High pressure pump	SUS304/SUS316	CNP/Grundfos/Danfoss	Provide pressure for water into RO membrane
RO membrane	BW30-400IG or LCLE-4040 or ULP31-4040	Domestic/Vontron / DuPont FilmTec	Remove heavy mental ion, bacterial. Desalination rate is more than 97%
UV Sterilzier	(Optional)	China	Kill 99% bacterial (For drinking directly)
Ozone generator	(Optional)	China	Kill 99%bacterial and keep 2hours.(For making bottled water)
Electricity supply: 110v-480v, 50hz or 60hz,3 phases (can customize)

Capacity: can customized, from 500L/H to 100Ton/H

Detailed Images

Reverse osmosis system requires a variety of pre-treatment techniques, including softening, dechlorination, and anti-scalent treatment.

Pre-treatment filters:

1--The quartz sand filter can remove the suspend solid and low the outlet water turbidity.
2--The activated carbon filter will remove color, odor, residual chlorine from the raw water.
3--Water Softener (optional), it can remove hardness (calcium, magnesium ions).
4-- Iron removal filter (optional) , it can remove Mn2+, Fe2+, Manganese and Iron ions.

PLC Touch Screen Control System

1--Company name and logo design: customize as your requirements.

2-- Language:English, Spanish, French and so on.

3--Conductivity meter: display the conductivity of output water.

4--PH meter: display the PH of output water (optional)

5-- Thermometer : display the temperature of output water (optional)

PC Control System

1--Company name and logo design: customize as your requirements;

2--Conductivity meter: display the conductivity of pure water 3--Flow meter : display dense water and pure water flow.

4--Pressure meter: display inlet and outlet pressure of water inlet RO system.

1--Raw Water Pump

Brand: CNP/Grundfos
Original: China
Function: provide pressure for raw water going into into filters(sand filter, carbon filters and water softener)
Material: SUS-316/304

2--High pressure pump

Brand: CNP/Grundfos
Original: China
It is to provide the pressure for water into RO membrane.
Material: SUS-316/304

RO membrane

Model: LCLE-4040 or ULP31-4040

Quantity: 2 pcs
The service life is about 2 years. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria and virus from water,and it can also remove more than 97% dissolved salt.

Optional membrane brand : DuPont & Toray & HYDECANME & Vontron ...

Electric control box

1--Air switch:protect the electric system.

2--AC contactor, thermal relay

3--Indicator light, knob switch

4-- Intermediate relay, Fuse box

5-- Terminals, miscellaneous pieces of

6--lectrical appliances

7--When the raw water pump or high pressure pump overheat, relay will stop. So it can
protect water pumps from damage.

8-- PLC(Programmable Logic Controller): Design the progaram as requirements you need.

Spare part	Replacement time
Quartz sand	Every 15-18months
Activated carbon	Every 15-18months
Resin	Every 15-18months
PP cartridge	Every each month
RO membrane	Every 2 years
UV light	Every 1 year

Packaging
Packaging Details	The normal package is wooden box(Size: LWH). we will pack it according to customers special request.

Manual Operation
Manual Operation and video	we will send the Manual operation and installation video together with machine.The machine is finished in our factory. You just install easily according to the video and Manual operation.
