The fully sealed structure can completely prevent the splashing of abrasive and water and reduce the impact of noise on the
environment during cutting.
- Product Details
- {{item.text}}
Quick Details
-
Table Travel (Z) (mm):
-
70
-
Marketing Type:
-
New Product
-
Cutting Accuracy(mm):
-
0.1
-
Brand Name:
-
WONLEAN
-
Voltage:
-
420MPA
-
Rated Power:
-
37KW
-
Dimension(L*W*H):
-
400MM*400MM
-
Weight (KG):
-
1500 KG
-
Type:
-
Water Jet Cutters
-
Product name:
-
Fully Enclosed Water Jet Cutting Machine
-
Cutting Accuracy:
-
±0.1mm
-
Structure:
-
Oil immersion
-
Machine Cover:
-
Stainless Steel
-
Main Motor:
-
SIEMENS Motor
-
Intersifier:
-
ACCUSTREAM(USA)
-
Rail Screw:
-
HIWIN
-
Servo Motor:
-
Yaskawa
-
Control system:
-
CNC Controller
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Table Travel (X) (mm):
-
400
-
Table Travel (Y) (mm):
-
600
-
Table Travel (Z) (mm):
-
70
-
Marketing Type:
-
New Product
-
Cutting Accuracy(mm):
-
0.1
-
Brand Name:
-
WONLEAN
-
Voltage:
-
420MPA
-
Rated Power:
-
37KW
-
Dimension(L*W*H):
-
400MM*400MM
-
Weight (KG):
-
1500 KG
-
Type:
-
Water Jet Cutters
-
Product name:
-
Fully Enclosed Water Jet Cutting Machine
-
Cutting Accuracy:
-
±0.1mm
-
Structure:
-
Oil immersion
-
Machine Cover:
-
Stainless Steel
-
Main Motor:
-
SIEMENS Motor
-
Intersifier:
-
ACCUSTREAM(USA)
-
Rail Screw:
-
HIWIN
-
Servo Motor:
-
Yaskawa
-
Control system:
-
CNC Controller
Waterjet Cutting Machine for glass, metal, stone and rubber, plastic, etc.
Product Description
15
Years
Experience

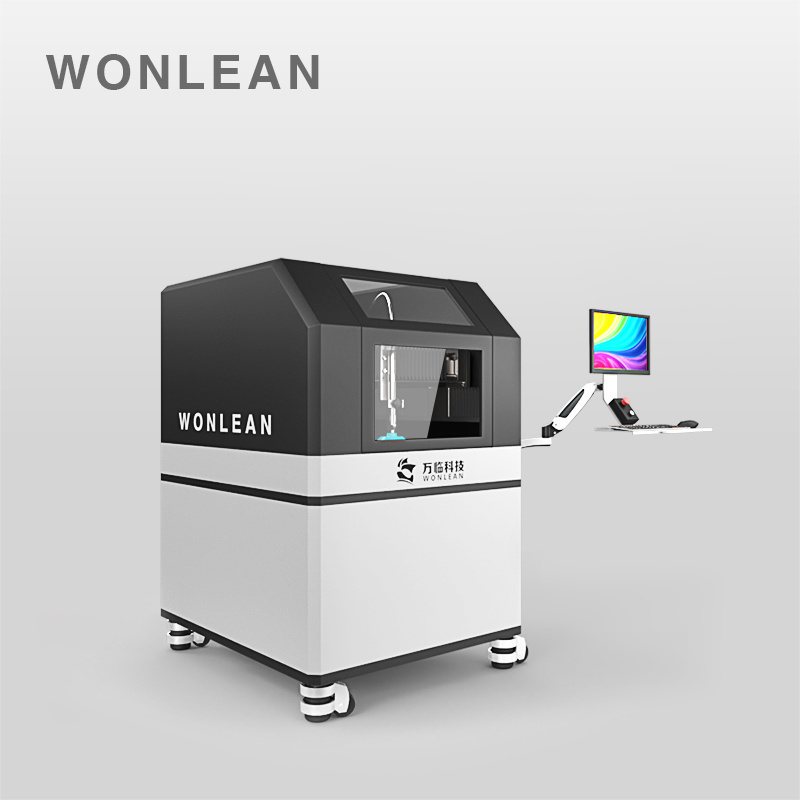

FULLY ENCLOSED MINI CNC WATERJET
CUTTING MACHINE
✔
Support non-standard customization
✔
Provide free sample trial cutting service for you
15 years of practice creates classic
Wonlean new product fully enclosed CNC waterjet cutting machine
It integrates CNC Controller and Sand Feeder as one of the fully enclosed cutting table, which is of compact structure design and makes the floor space smaller.
abrasive.
Direct connection transmission system
The high-power servo motor is directly connected with the large-diameter guide screw. Compared with the traditional synchronous pulley belt connection, it has less transmission loss, higher precision, better stability. High accuracy without the slightest error
Intelligent variable pressurization system
Equipped with a variable oil pump and an intelligent variable high pressure system composed of four imported valve bodies, which can intelligently adjust the amount of oil according to the pressure requirements and has high cutting efficiency, better oil temperature control and more energy-saving, so that each pressurization is just right
Intelligent 3D cutting
less than 0.01 mm, and the cutting accuracy is extremely high
Tilting compensation system
Through the dynamic compensation of the intelligent five axis software and two Japanese Yaskawa servo motors, the "V"shaped incision of the waterjet is accurately compensated to make the cutting incision vertical up and down or achieve bevel cutting
within 8 degrees
Wireless remote control handle everything under control
More flexible and convenient for tool setting Control equipment operation at any time Display feed values in real time
Magnetic design for easy access
Magnetic design for easy access
Intelligent identification and one-touch processing
Identify CAD E-drawings, automatically generate cutting path and access parameters, reduce manual coding and repeated operations, simple operation, improve production capacity
The main components adopt internationally renowned brands
World-leading quality accomplishes the WONLEAN classic
|
High pressure system specifications
|
|
|
|
|||
|
Model
|
WL30018Z
|
WL38030Z
|
WL42037Z
|
|||
|
Max. Pressure
|
300Mpa
|
380Mpa
|
420Mpa
|
|||
|
Continuous working pressure
|
260Mpa
|
340Mpa
|
380Mpa
|
|||
|
Power
|
18KW
|
30KW
|
37KW
|
|||
|
Maximum water flow
|
3.7L/min
|
3.7L/min
|
3.7L/min
|
|||
|
Maximum nozzle diameter
|
0.33mm
|
0.33mm
|
0.33mm
|
|||
|
Working power supply
|
380V/50HZ
|
|
|
|||
