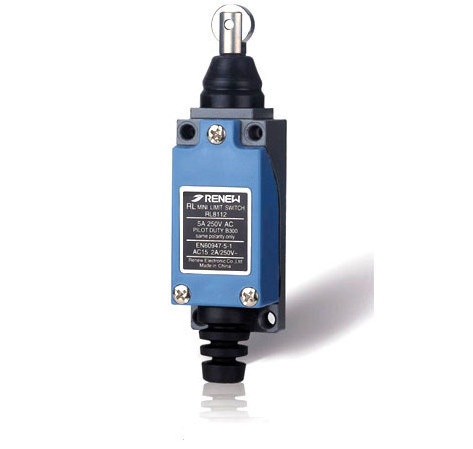

Renew high temperature mini cam limit switch az-8112

Rated working current

5A 125,250VAC; 0.4A 125VDC(..)

Contact type

Contact resistance (initial value )

Under 15 mΩ (no include copper resistance )

Contact material

Sliver cadmium oxide contact(if no need cadmium,[according with ROSH certificate ] can customize

Electrical

Insulation resistance (initial value)

100 mΩ min. (use the DC500V insulation resistance test)

Dielectric strength

Between Non-continuous terminals (initial value): 1500V 50/60HZ for 1 min

Between non voltage metal parts and each terminal: 2000V 50/60HZ for 1min

Between ground and each terminal:  2000V 50HZ for 1 min

Mechanical

Shock resistance

In the free position

Less than 98m/s2(10G)

In the full operating position

Less than 294m./s2(30G)

Vibration resistance

1.5mm double amplitude  10-55HZ

Expected Life

Mechanical

10,000,000 operations min. (on/off frequency 120 operations/min)

Electrical

300,000 operations min. (rated load ), electromagnetism contactor FC-100(AC200V) load ; 5,000,000 operations min.

Using condition

Ambient temperature /Ambient humidity

-20~+60

95%RH max. (at +5~20)

The max on/off frequency

120 operations/min
