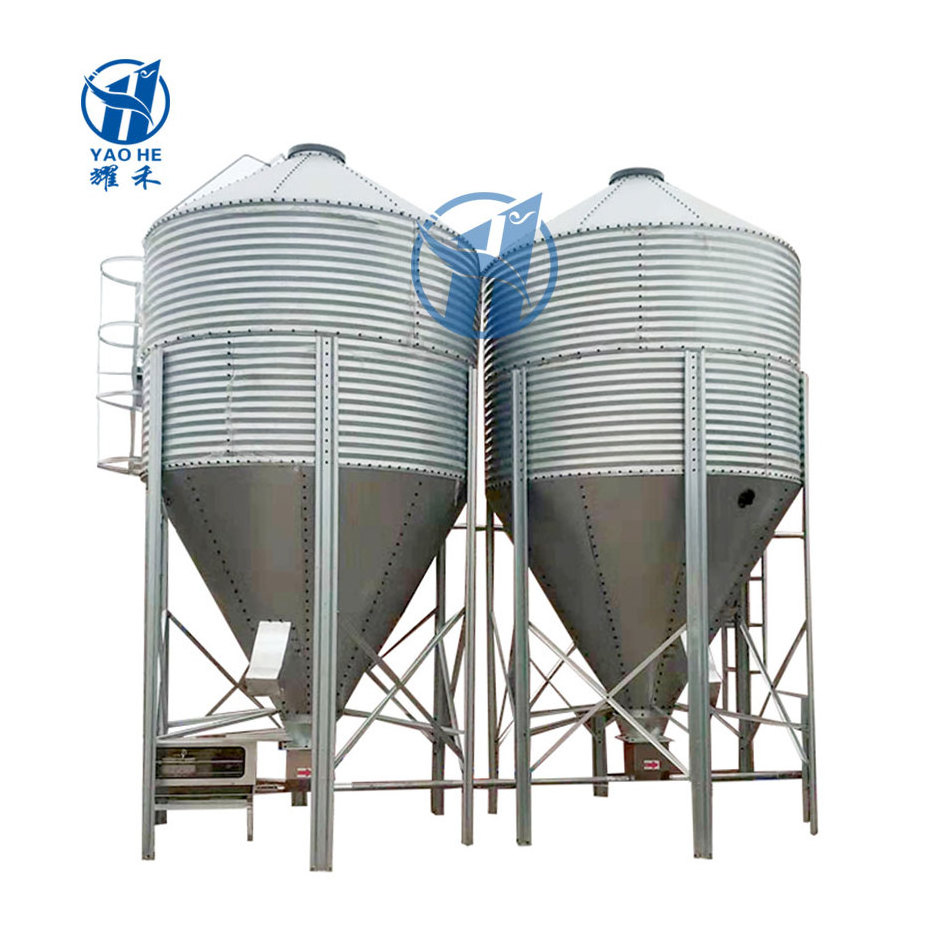

YaoHe Feed Silo
is mainly used in Animal husbandry, Farm, Poultry house, Chiken house, Pig house.
* 3-67tons.
* Galvanized Plate: Double-sided galvanized layer 275g.
* Galvanized Plate Manufacturer: SHOUGANG GROUP. A large steel group from the capital of China-Beijing, which has produced steel for many Olympic Games, is currently the best supplier in the industry.
* Can be configured full set of main feed line (Auger type).
* Can be configured Weighing System, Conical anti-clogging, Transparent Hopper, Galvanized Hopper, Feed Boot and other ancillary equipment.
* Production process: No burrs. No elliptical holes. No deviation from hole to hole. Splicing without gap. Cross section anti-corrosion treatment. Bolts and nuts use coated with dacromet surface anti-corrosion coating. Thickness ±0.02mm.
* Provide free assembly parts.
* Provide assembly manual in English.
* Warranty period: 2 years.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
YAOHE
-
Weight:
-
880 KG
-
Thickness(mm):
-
1.0mm, 1.2mm
-
Zinc-Coated Thickness:
-
Double-sided galvanized layer 275g
-
Raw Material Manufacturer:
-
SHOUGANG GROUP
-
Capacity (ton):
-
3-67tons
-
Capacity (m3):
-
4.18-94.87m3
-
Layers:
-
1-5
-
Legs:
-
4/6/8/10+10
-
Lower Cone Angle:
-
61 degrees
-
Product Use:
-
Poultry House, Farms, Pig House,Animal Husbandry
Quick Details
-
Marketing Type:
-
New Product 2024
-
Core Components:
-
Round Hoarding
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YAOHE
-
Weight:
-
880 KG
-
Thickness(mm):
-
1.0mm, 1.2mm
-
Zinc-Coated Thickness:
-
Double-sided galvanized layer 275g
-
Raw Material Manufacturer:
-
SHOUGANG GROUP
-
Capacity (ton):
-
3-67tons
-
Capacity (m3):
-
4.18-94.87m3
-
Layers:
-
1-5
-
Legs:
-
4/6/8/10+10
-
Lower Cone Angle:
-
61 degrees
-
Product Use:
-
Poultry House, Farms, Pig House,Animal Husbandry
Products Description.
Product Application:
|
Product Model
|
Diameter
(mm)
|
Capacity
(ton)
|
Silo Height (m)
|
Capacity
(m3) |
Layers
|
Number of Column Base
|
||||||
|
YH1920-1
|
1920mm
|
3
|
3.7
|
4.18
|
1
|
4
|
||||||
|
YH1920-2
|
|
4.5
|
4.6
|
6.49
|
2
|
|
||||||
|
YH1920-3
|
|
6
|
5.5
|
8.81
|
3
|
|
||||||
|
YH2250-2
|
2250mm
|
7
|
4.9
|
9.98
|
2
|
|
||||||
|
YH2250-3
|
|
9
|
5.8
|
13.41
|
3
|
|
||||||
|
YH2450-1
|
2450mm
|
5
|
4.1
|
7.41
|
1
|
|
||||||
|
YH2450-2
|
|
8
|
5
|
11.1
|
2
|
|
||||||
|
YH2450-3
|
|
10
|
5.9
|
14.78
|
3
|
6
|
||||||
|
YH2850-2
|
2850mm
|
12
|
5.7
|
16.68
|
2
|
|
||||||
|
YH2850-3
|
|
15.5
|
6.6
|
21.88
|
3
|
|
||||||
|
YH2850-4
|
|
18.5
|
7.5
|
27.08
|
4
|
|
||||||
|
YH3800-2
|
3800mm
|
21
|
6
|
31.04
|
2
|
8
|
||||||
|
YH3800-3
|
|
28
|
6.7
|
40.36
|
3
|
|
||||||
|
YH3800-4
|
|
35
|
7.6
|
49.68
|
4
|
|
||||||
|
YH4700-2
|
4700mm
|
36
|
6.9
|
51.01
|
2
|
10
|
||||||
|
YH4700-3
|
|
45
|
7.
|
65.65
|
3
|
10+10
|
||||||
|
YH4700-4
|
|
56
|
9.7
|
80.26
|
4
|
|
||||||
|
YH4700-5
|
|
67
|
10.6
|
94.87
|
5
|
|
||||||
|
* Lower Cone Angle: 61°
* Top Cone Angle: 30°
* Raw Materials: Double-sided galvanized layer 275g.
* The average weight of feed is 0.65 tons /m3.
|
|
|
|
|
|
|
||||||
WhatsApp & WeChat & TM Trademanager & Mobile 24hours is online, please feel free to contact me.
WhatsApp: +86 15263635153
WeChat: +86 15263635153
Skype: +86 15263635153
24 Hr. Mobile: +86 15263635153
E-mail: yaohe-ronne@hotmail.com
Skype: +86 15263635153
24 Hr. Mobile: +86 15263635153
E-mail: yaohe-ronne@hotmail.com
Accessories Parameters.
Top Cap
Automatic Spring Opening Control
• Material: Galvanized sheet.
• Open the top cap manually.
• Including spring, pulley, wire rope, handle.
Round Hoarding
• Material: Galvanized sheet.
• Double-sided galvanized layer 275g.
• Thickness: 1.0/1.2mm.
Top Cone & Lower Cone
• Material: Galvanized sheet.
• Double-sided galvanized layer 275g.
• Thickness: 1.0/1.2mm.
Ladder
• Material: Galvanized sheet.
• Thickness: 1.5mm.
Column Base
• Material: Galvanized sheet 275g.
• Thickness: 2.5/3.0mm.
Diagonal Brace
• Material: Galvanized sheet 275g.
• Thickness: 2.5/3.0mm.
Other Accessories Parameters
Parallel Transparent Hopper
* Material: PC.
* Transparent design for easy observation.
* UV resistant, non-breaking, anti-aging.
Tilted Transparent Hopper
* Material: PC.
* Transparent design for easy observation.
* UV resistant, non-breaking, anti-aging.
Top Round &
Bottom Square Hopper
* Material: Galvanized sheet.
Single Feed Boot
* Material: Galvanized sheet/stainless steel.
* Number of feed outlet: 1Nos.
* Feed outlet diameter: φ75/90/110.
* Feed outlet diameter: φ75/90/110.
Double Feed Boot
* Material: Galvanized sheet/stainless steel.
* Number of feed outlet: 2Nos.
* Feed outlet diameter: φ75/90/110.
* Feed outlet diameter: φ75/90/110.
Conical anti-clogging
• Material: Nylon.
• Uses: Prevent feed accumulation and clogging.
Provide exclusive 3D design for you.
As above, Feed Silo 3D design.
Provide 3D Drawings for Easy Assembly and Custom Parts.
Widely Used.
Use in Poultry, Farm, Livestock breeding, Animal husbandry.
Chicken house, Pig house, Rabbit house, Duck house, etc.
Product Packaging & Loading.
LCL Packing.
Iron tray + Carton + Packing tape for fastening + Plastic film covering the entire surface.
Each iron tray can be loaded with up to 5PCS
, this package is suitable for small purchase quantities.
Full Container Loading.
We guarantee a 100% loading rate to reduce your shipping costs as much as possible.
We promise that any damage caused by the product in the process of transportation shall be borne and compensated by our company.
