Base on the different need can choose the 31x15.5-15 wide agriculture tubeless tire.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
5000x1780x2700mm
-
Machine Weight:
-
3680 kg
-
Bucket capacity:
-
0.7CBM, 0.7-1.0m3
-
After-sales Service Provided:
-
Video technical support
-
Aftersales Service Provided:
-
Online support
-
After-sales Service:
-
Free spare parts
-
Color:
-
Customize
-
Engine:
-
YUNNEI/YANMAR/XINCHAI
-
Rated Power:
-
42KW
-
Operating weight:
-
3500KG
-
Certification:
-
CE ISO
Quick Details
-
Engine Brand:
-
YUCHAI
-
Power:
-
37 KW, 42KW
-
Brand Name:
-
HERACLES
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
5000x1780x2700mm
-
Machine Weight:
-
3680 kg
-
Bucket capacity:
-
0.7CBM, 0.7-1.0m3
-
After-sales Service Provided:
-
Video technical support
-
Aftersales Service Provided:
-
Online support
-
After-sales Service:
-
Free spare parts
-
Color:
-
Customize
-
Engine:
-
YUNNEI/YANMAR/XINCHAI
-
Rated Power:
-
42KW
-
Operating weight:
-
3500KG
-
Certification:
-
CE ISO
Product Description
Main Features
1. Latest generation.Especially for European market high reliability and productivity.
2. Main components from top brand,high reliability and productivity.
3. Joystick control,easier operation.
4. Bucket can be leveled automatically,optimized working device,higher productivity.
5. Comfortable operation environment.
6. Various working devices of attachment are available,such as Quick hitch,wooden fork, pipe, pallet fork, grass fork, rock bucket, bigger bucket, snow bucket, mixing bucket etc. to meet different need.
7. High pressure and safer air assist disc brake braking system
8. According to clients request, customize higher dumping and longer arm products.
|

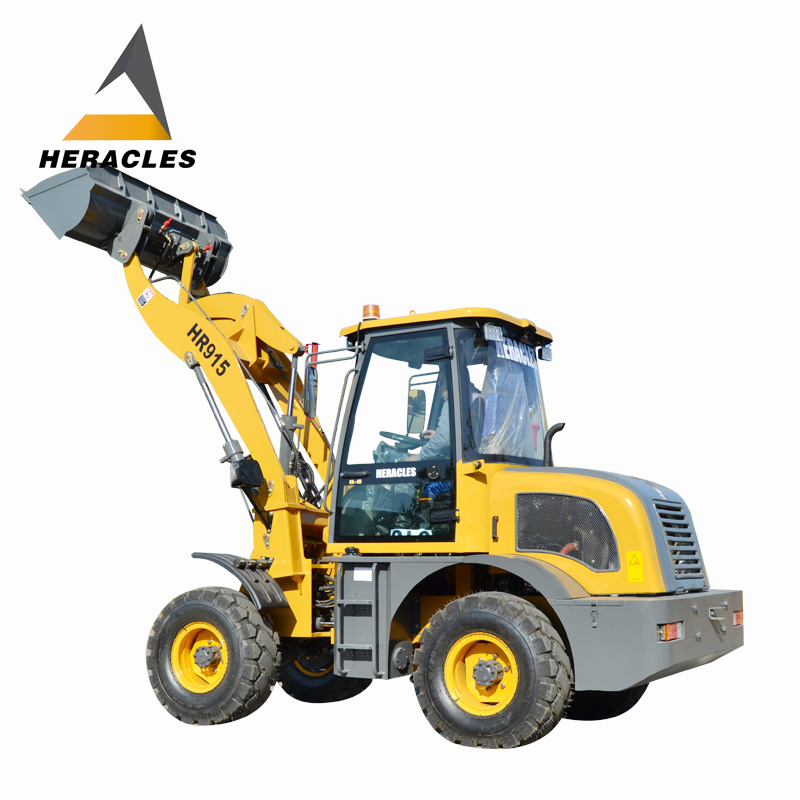

SPECIFICATIONS FOR HR915F Wheel Loader
|
|
|
|
|||
|
1.Main technical specification
|
|
|
|
|||
|
Bucket Capacity(m³)
|
|
0.7
|
|
|||
|
Operating Weight(kg)
|
|
3700
|
|
|||
|
Bucket Width(mm)
|
|
1650
|
|
|||
|
Bucket type
|
|
Heavy-duty bolt on teeth
|
|
|||
|
Rated Load(kg)
|
|
1500kg
|
|
|||
|
Wheel base(mm)
|
|
2000
|
|
|||
|
Track(mm)
|
|
1400
|
|
|||
|
Driving Mode
|
|
Hydraulic converter, four wheel drive
|
|
|||
|
Overall Dimensions(mm)
|
|
LxWxH: 5000x1780x2700
|
|
|||
|
2.Engine Details
|
|
|
|
|||
|
Model
|
|
YUNNEI YN27 Engine
|
|
|||
|
Engine Type
|
|
In-line arrangement, water-cooled, four-cycle diesel Engine
|
|
|||
|
Rated Power(kw)
|
|
42
|
|
|||
|
Rated Speed (rpm)
|
|
r/p.min
|
|
|||
|
Optional Engine
|
|
YANMAR (4TNE98-BQFLC EPA3) /
XINCHAI (A498BT1 EURO 3)
|
|
|||
|
3.Transmission System
|
|
|
|
|||
|
Hydraulic converter + gearbox+drive shaft
|
|
|
|
|||
|
4.Operating Specifications
|
|
|
|
|||
|
Steering System
|
|
Articulated Frame with hydraulic power steering
|
|
|||
|
Min Turning Radius(mm)
|
|
3900
|
|
|||
|
Driving System
|
|
Hydraulic converter, four wheel drive
|
|
|||
|
European,BOBCAT,CAT quick coupling system
|
|
|
|
|||
|
Joystick control
|
|
|
|
|||
|
5.Brake System
|
|
|
|
|||
|
Service Brake
|
|
Four Wheel Hydraulic spread-shoed brake
|
|
|||
|
Parking Brake
|
|
Hand operated(Disc brakes)
|
|
|||
|
6.Tire
|
|
|
|
|||
|
Model:
|
|
20.5-16
|
|
|||
|
Optional Model
|
|
23.5-16 / 31x15.5-15 wide tire
|
|
|||
Certifications
Detailed Images
Wide Tire.
Comfortable operation environment.
Comfortable steering wheel,high quality seat and suitable joystick control,make a very comfortable operation environment for driver.
Cabin
Good design and have the broad field of vision,comfortable operation environment and safty drive.
Cabin light.
Fashionable LED light more beautiful and energy conservation.
Hydraulic Pipes.
Reasonable layout for hydraulic pipes more convenient maintenance, make the vehicle details more beautiful.
Luxury interior.
Multimedia player, bring more fun to drive.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
5000mm(L) * 1780mm(W) * 2700mm(H)
|
|
|
Weight
|
3.7 T
|
|
|
Packaging Details
|
1 unit nude need a 20GP container
3 units nude need a 40HQ container
|
|
