Quick Details
-
Model Number:
-
1/2inch ,1-1/2inch,2inch
-
Type:
-
constant pressure valves
-
Brand Name:
-
Compass
-
Stainless Steel:
-
Ss304 ,SS316l
-
Size:
-
Dn32-Dn50, 1 1/2"-2", 38mm-51mm
-
Connection Standard:
-
Threading,welding,Clamping
-
Working Pressure:
-
10bar
-
Temperature:
-
-20-150 Celsius Degree
-
Pressure:
-
Low Pressure
-
Working Way:
-
Manual
-
Standard:
-
ISO,,CE
-
gasket:
-
PTFE,EPDM
-
finish:
-
mirror,matte
Quick Details
-
Port Size:
-
1/2"-1.5",DN15-DN50
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
1/2inch ,1-1/2inch,2inch
-
Type:
-
constant pressure valves
-
Brand Name:
-
Compass
-
Stainless Steel:
-
Ss304 ,SS316l
-
Size:
-
Dn32-Dn50, 1 1/2"-2", 38mm-51mm
-
Connection Standard:
-
Threading,welding,Clamping
-
Working Pressure:
-
10bar
-
Temperature:
-
-20-150 Celsius Degree
-
Pressure:
-
Low Pressure
-
Working Way:
-
Manual
-
Standard:
-
ISO,,CE
-
gasket:
-
PTFE,EPDM
-
finish:
-
mirror,matte
Application:

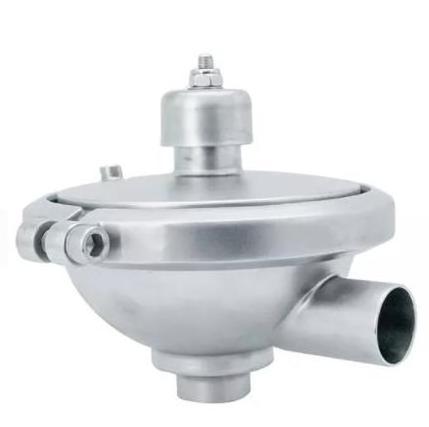

The valve is a sanitary constant pressure valve which can be used in food-processing, beverage, biopharmaceutical.
It has two kinds of keeping constant pressure:V type (inlet constant pressure); maintain constant pressure at the valve inlet.
Such desifn is specially applied at the back of heat-exchanger. It is used as safety valve.A type (outlet constant pressure);
maintain constant pressure at the outlet. Such design is used as the front of filling machine and bottle filling machine.
Date Sheet:
|
Material Pressure |
≤10bar |
|
Temperature Range |
-10 celsius degree-+150 celsius degree |
|
Compressed Air Pressure |
0~8bar |
|
Max Particle Size |
0.01mm |
|
Max Oil Content |
0.08ppm |
|
Dew Point |
Atmospheric Temperature 10 celsius degree or low |
|
Max Water Content |
7.5g/kg |
|
Size |
DN32-DN50,1 1/2"-2",38MM-51MM |
|
Standard Available |
DIN,3A,SMS,ISO |
|
Material Quality |
Ss304, Ss304L ,Ss316, Ss316L |
Drawing of Stainless Steel Constant Pressure valve
Packing&Shipping information and pictures of
welding constant pressure valves
Port:Shanghai Port or Ningbo Port,China
MOQ:1 set
Supply ability:1,000 sets/month
Payment terms:T/T,Western Union, Paypal, L/C
Packaging:Shrink wrapped-in seaworthy wooden cased
Delivery time:Depends on quantity
Shipping mode:
By sea,by air,by express
We specialize in sanitary valves,pipe fittings and pumps,which is applied for milk,food,beer,pharmaceutical and
other fields.We can quote you favourable price&high quality&best after-sale services.Welcome to visit our factory.
- Sanitary Valves ,such as butterfly valves,check valves,diaphragm valves,ball valves,pneumatic reversal valves,ect.
- Sanitary pipe fittings ,such as triclamp ferrule,elbow,tee,reducer,spray valve,sight glass,strainer,ect.
- Sanitary Pumps ,such as Sanitary Cen trifugal Pumps,Sanitary Rotary Lobe Pumps
- Sanitary Manhole Covers ,such as square/round/elliptical manhole covers
FAQ
Q1.Are you a trading company or factory?
We are a manufacturing trading
integration.
Q2.Do you have Mill test certificate for the materials?
Yes,
Mill test certificate
is very important for the food processing machines.
Q3.May I have free sample before ordering?
Yes,our company is very pleased to send to you free sample for quality test as long as freight cost being paid
by buyers themselves.
Q4.What's the payment terms?
For small testing orders,we accept Paypal,Western Union,T/T and credit Card.
For mass orders,we accept T/T and L/C.
Q5.How do you control the quality?
Quality control is very important to avoid material mixing and poor quality.If you need inspection report,we will send you in excel file to show real photo.
We control the quality from
beginning to the end.We only have 304 and 316L two different materials.100%
inspection on raw
material.During production,different materials in different place.After materials are finished,we choose 10%for
inspection.If there is 0.1%
problem in 10%,then no excuse to go ahead for inspecting 100%of the materials.
Q6.If there is any quality problem,how do you solve it?
We are proud that we never let one customer leave us.We are not 100%perfect,there is some quality
problem.We try our best to provide the correct materials in the beginning,so we need less time for quality
problem.If there is any quality problem,we take the responsibility.We believe what we are doing together,it will
get back tomorrow.If we leave our responsibility,customer will leave us.If we always take our responsibility,we
keep our customers with us.
Q7.How long is your delivery time?
For normal production in 7-10days.For bulk order in 15-25days.
Q8.Warranty
One year warranty for all of our stainless steel products.Gaskets are not included due to the different
application for customers.
