Quick Details
-
Production Capacity:
-
3200-6000KG/H
-
Voltage:
-
380V Customized
-
Power:
-
5.5KW, 5.5KW
-
Weight:
-
1080 KG
-
Dimension(L*W*H):
-
1950*1300*1900MM
-
Driven Type:
-
Hydraulic Electric Sausage Stuffer
-
Feature:
-
Low Energy High Speed
-
Usage:
-
Food Industry Equipment
-
Application:
-
Sausage Processing Industrial
-
Type:
-
Hydraulic System
-
Material:
-
304 Stainless Steel
-
Function:
-
Sausage Filling Stuffing Machine
-
Name:
-
Vacuum Sausage Filler
-
Capacity:
-
3200-6000KG/H
Quick Details
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ocean
-
Production Capacity:
-
3200-6000KG/H
-
Voltage:
-
380V Customized
-
Power:
-
5.5KW, 5.5KW
-
Weight:
-
1080 KG
-
Dimension(L*W*H):
-
1950*1300*1900MM
-
Driven Type:
-
Hydraulic Electric Sausage Stuffer
-
Feature:
-
Low Energy High Speed
-
Usage:
-
Food Industry Equipment
-
Application:
-
Sausage Processing Industrial
-
Type:
-
Hydraulic System
-
Material:
-
304 Stainless Steel
-
Function:
-
Sausage Filling Stuffing Machine
-
Name:
-
Vacuum Sausage Filler
-
Capacity:
-
3200-6000KG/H
Overview
Product Description
Introduction
The servo motor drives the reducer to drive the blade pump to rotate, and the material in the
hopper is discharged through the discharge port to complete filling. The blade rotation angle
is controlled by the control system to achieve quantitative output of material volume. Then
use a double card punch machine to seal the aluminum buckle.
Technological Process
Hopper - Automatic feeding - Blade type vacuum enema machine - Double card punch machine

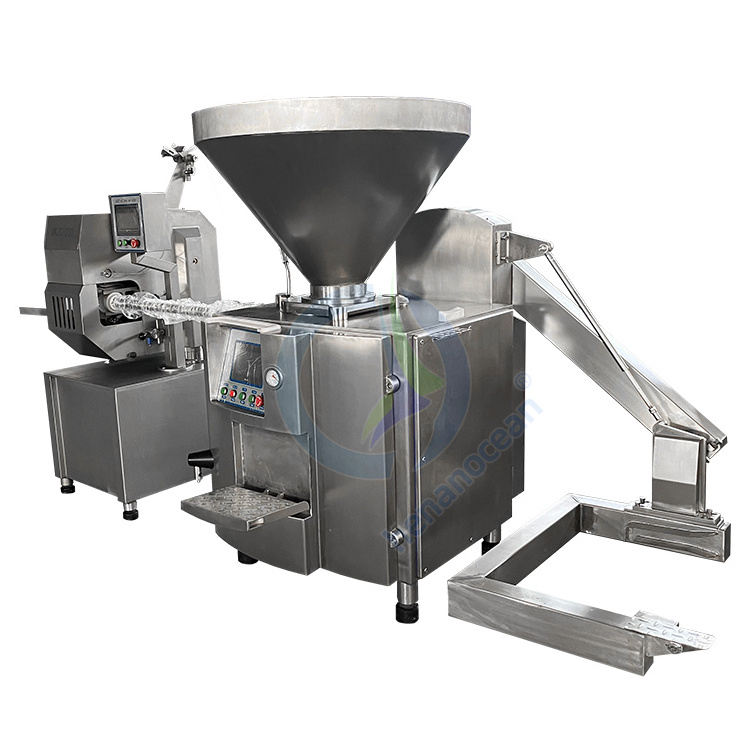

Vacuum sausage filler
| Model | Size(mm) | Power(kw) | Hopper(L) | Press(mpa) | Capacity(kg/h) | Weigh(kg) |
| 3200 | 800"800*1500 | 5.5 | 150 | 0.1 | 3200 | 500 |
| 3500 | 1950*1300*1900 | 8.5 | 260 | 0.1 | 3500 | 1080 |
| 6500 | 1950*1300"1900 | 9.5 | 260 | 0.1 | 6000 | 1260 |
Sausage linking machine
| Model | 120 | 160 |
| Speed | 120 | 100 |
| Pressure | 0.5-0.8 | 0.5-0.8 |
| Voltage | 220V 50HZ | 220V 50HZ |
| Casing diameter(mm) | 35-120 | 40-160 |
| High(mm) | 1000 | 1000 |
| Power(kw) | 2.7 | 4 |
| Size(mm) | 950X830X1800 | 980X1020X1800 |
| Weigh(kg) | 450 | 550 |
