Quick Details
-
P/N:
-
PWC-030301M01-00-B
-
Number of Contacts:
-
3pins
-
Wiring type:
-
Soldering pins
-
Installation:
-
Overmolded with cable
-
Voltage Rating:
-
300V
-
Rated Current (40°C):
-
20Amp
-
Environmental Protection:
-
'IP67 waterproof when plugged
-
OperatingTemperature:
-
'-25°C - 85°C
-
Connector material:
-
PA66
-
Contact material:
-
Solid lathing copper pins
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BeConn
-
Model Number:
-
PWC-030301M01-00-B
-
P/N:
-
PWC-030301M01-00-B
-
Number of Contacts:
-
3pins
-
Wiring type:
-
Soldering pins
-
Installation:
-
Overmolded with cable
-
Voltage Rating:
-
300V
-
Rated Current (40°C):
-
20Amp
-
Environmental Protection:
-
'IP67 waterproof when plugged
-
OperatingTemperature:
-
'-25°C - 85°C
-
Connector material:
-
PA66
-
Contact material:
-
Solid lathing copper pins
Products Description
Product Paramenters
|
Name
|

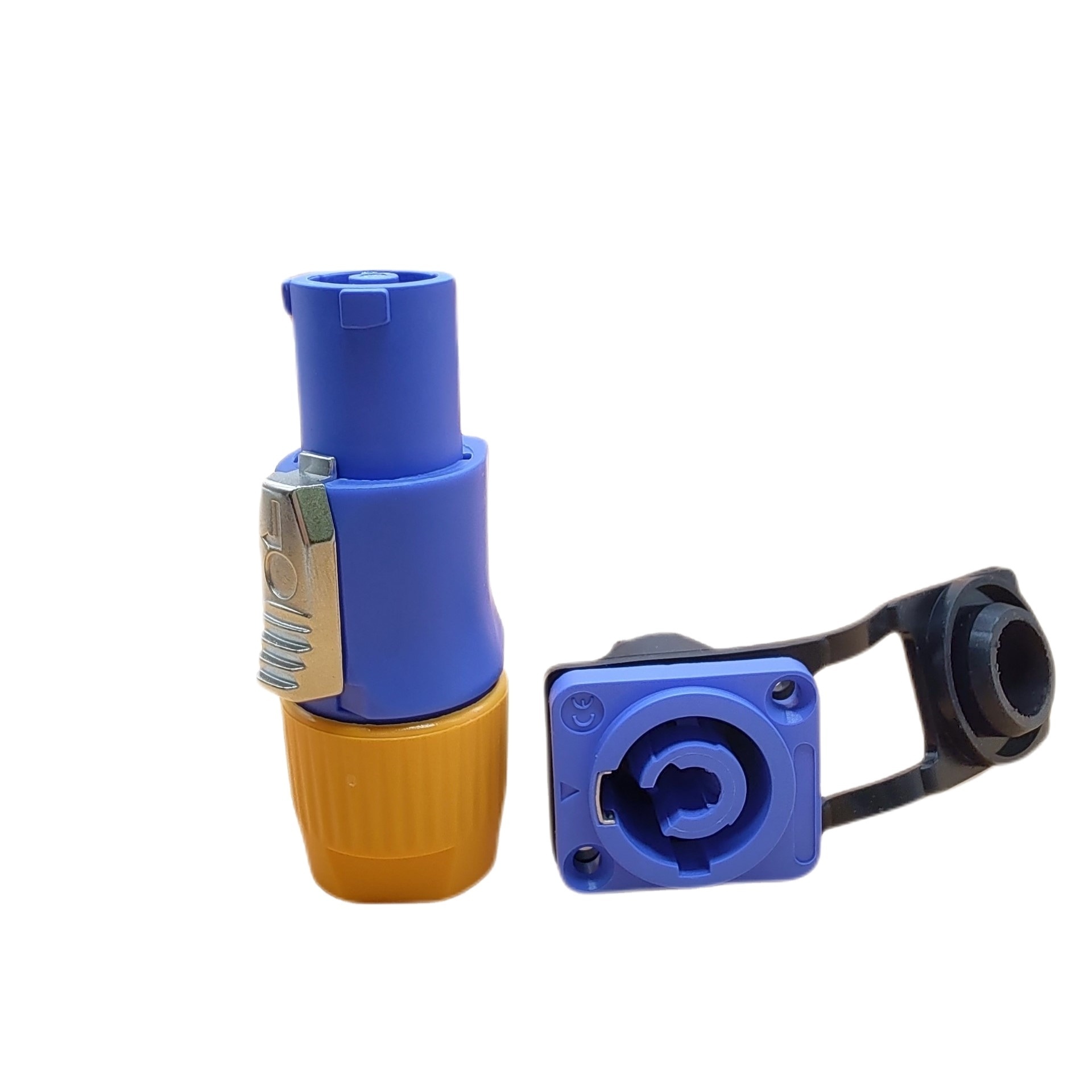

PWC series push-pull quick locking 20A power plug for LED display field installation, IP67 waterproof 3pins power connector compatible with powercon blue plug for audio device
|
|
P/N
|
PWC-030301M01-00-B
|
|
Key words
|
Big power plug, 20Amp waterproof connector, powercon plug, power connector in blue color, push-pull locking connector , Overmolded connector with cable, connector for LED display, 20A AC plug
|
|
Feature
|
Push-pull locking, field installation, 20Amp big power, compatible with powercon series, Competitve price,
|
|
Number of Contacts
|
3pins
|
|
Wiring type
|
soldering pins
|
|
Installation
|
Field installation
|
|
Connecting mode
|
push-pull locking
|
|
Voltage Rating
|
300V
|
|
Rated Current (40°C)
|
20Amp
|
|
Connector material
|
PA66
|
|
Flame-resistant rating
|
UL94-V0
|
|
Contact material
|
Solid lathing copper pins
|
|
Environmental Protection
|
IP67 waterproof when plugged
|
|
OperatingTemperature
|
-25°C - 85°C
|
|
Suggested wire gauge
|
14-22AWG
|
|
Cable diameter range
|
OD ≤12mm
|
|
Cable length and wire ends
|
As per request
|
