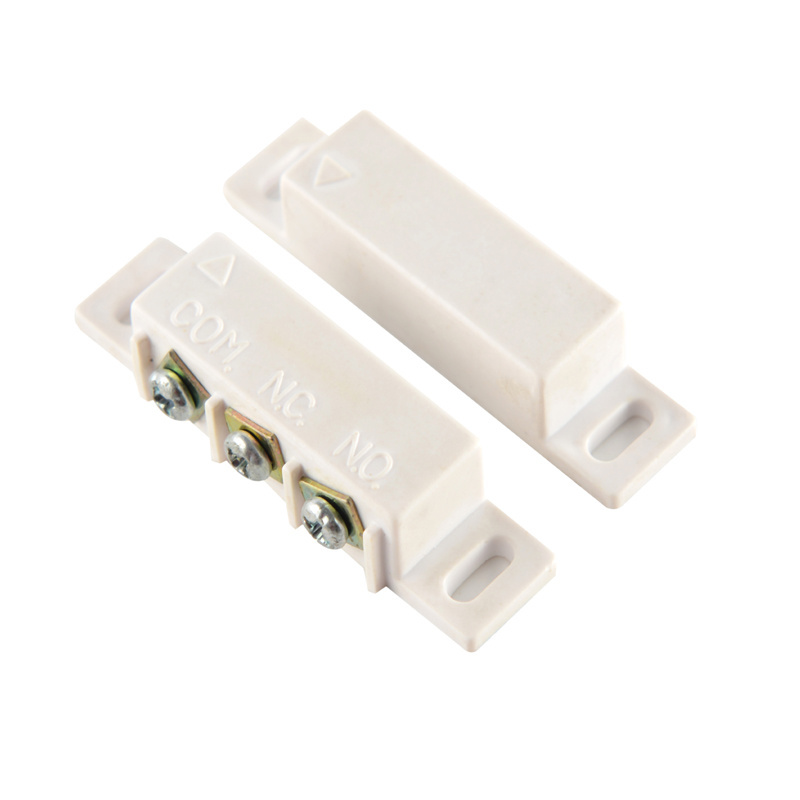

Door Window SPDT Surface Mount NO/NC/COM Magnetic Contact Reed Switch Sensor

Door Window SPDT Surface Mount NO/NC/COM Magnetic Contact Reed Switch Sensor

Product Feature::

1.  The magnetic contact use ABS material, high temperature resistance and wear resistance.

2. The magnetic switch consists of two parts:  the part is permanent magnet,,used to generate a constant magnetic field , the other part is the main body of magnetic switch which have a normally open type dry reed switch.

3.When the permanent magnet close with the reed switch , door magnetic sensor is in a state of waiting work, when permanent magnet left dry reed pipe after a certain distance, switch action, send out alarm signal.

Technical Specification:

Operating distance(Gap): 20~30mm

Housing: ABS ,white

Connecting mode: NO&NC/Screw

Installation: install outwardly

Package:

Product Size: 55*12.5*11.5mm
Inner packing: 10sets/PE
Outer packing: 800 sets / carton
Gross Weight: 21.0Kgs/ctn

Remarks: 4 screws

Dimensions:

Related magnetic contacts

Wooden door sensor

Iron door sensor

Roller door sensor

Company profile:

Guangzhou Tedo Electronics Co., Ltd. is a high-tech company specializing in research & development, production and sales of intrusion alarm products , W hich includes Manual Call Point, Smoke Detectors, Fire Alarm Sirens, Strobe Lights, Door Sensor, Emergency Button and other alarm accessories. All the alarm products have passed CE/FCC and are ROHS compliant. Protect Your Home and Business, Creat the Safety is our core value.
