- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
hanchuang
-
Voltage:
-
220v, 220v
-
Dimension(L*W*H):
-
L550 *W440 *H440 MM
-
Weight:
-
50 kg
-
PLC Brand:
-
China famous brand
-
Power:
-
0.44kw
-
weight:
-
50kg
-
machine size:
-
L550 *W440 *H440 MM
-
Material frame size:
-
320*190mm
-
Cutting width:
-
1-100mm
-
Cutting length:
-
1-9999mm
-
Material frame load:
-
15kg
-
Cutting speed:
-
110times/min
-
Cutting precision:
-
About 0.1-0.2mm
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
100 m/min
-
Max. workable width:
-
100mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
hanchuang
-
Voltage:
-
220v, 220v
-
Dimension(L*W*H):
-
L550 *W440 *H440 MM
-
Weight:
-
50 kg
-
PLC Brand:
-
China famous brand
-
Power:
-
0.44kw
-
weight:
-
50kg
-
machine size:
-
L550 *W440 *H440 MM
-
Material frame size:
-
320*190mm
-
Cutting width:
-
1-100mm
-
Cutting length:
-
1-9999mm
-
Material frame load:
-
15kg
-
Cutting speed:
-
110times/min
-
Cutting precision:
-
About 0.1-0.2mm

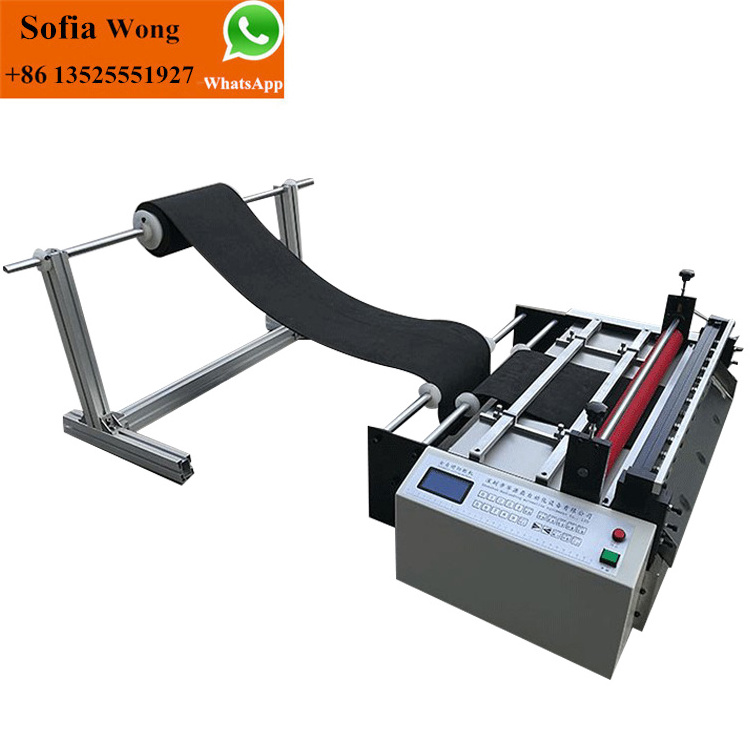

PVC sleeve Cutter PVC film Cutting Machine
whatsAPP:+86 13525551927
Product Description
Introduction
This micro computer film pipe cuttining machine is suitable for heat shrinkable casing, PVC casing, fiberglass tube, PE tube, silicone pipe, electrolytic capacitor PVC sleeve, PVC plastic belt, wire line, plastic hose, nylon tube, Teflon tube, insulating paper, Mica, Myra, diffusion sheet, rubber sheet, silicon film, stickers, wallpaper, kraft paper, Barley paper, Fast bar paper, off-type paper, insulating paper, plastic belt, packing tape, copper foil, copper belt, Nickel belt, non-weaving, acetic acid cloth, conductive cloth, cotton yarn belt, elastic belt, magic sticker, zipper and other ribbon or film (tube) shape and other fixed long cutting can be.
|
Model |
1-100mm |
|
Cutting speed |
100M/MIN |
|
Cutting width |
0.1-100mm |
|
Cutting knife |
High speed steel HC-100 |
|
Cutting length |
0.1-9999.9mm |
|
Cutting motor |
AC Reducer Motor |
|
Feeding motor |
High Precision Stepper Motor |
|
Accuracy |
0.1mm |
|
Machine Size |
L550 *W440 *H440 MM |
|
Machine Weight |
50kg |
Features
1. Automatically grouped total and total cumulative count
2. Batch pause and delay time can be set
3. There are various manual operations for debugging
4. Automatically cut all kinds of ribbon, sheet, plastic tube and other materials
5. High-speed feeding, micro-computer program control accuracy up to 0.1mm
6. High-speed stepper motor precise control cutting length, speed adjustable
7. Cutting knife time protection; total number setting; sub-setting; adjustable sub-pause time
8. Adjustable knife speed, full English LCD display
9. Any length and speed can be continuously adjusted, completely automatic cutting, automatic feeding to completely liberate labor
10. Intuitive English display with large LCD screen, simple and convenient operation; Using special mechanical structure and special tools, coupled with dedicated software control, to solve the uneven incision, to achieve incision level, the length of the standard
11. Fast feeding speed, large cutting force, high cutting efficiency, stable performance, cutting all kinds of hard and thick materials, high cutting precision, smooth cut
12. Adding unwinding motor and induction photoelectricity, it can achieve simultaneous unwinding, solve the problems of slow discharge material, poor accuracy, etc. of heavier coil materials.
Pre-sale service
1.Related machines’s technical parameter will be supplied to customer.
2.According to customer’s factory size, factory layout can be provided in advance.
3. According to customer’s material cost, general formulation can be prepared well.
4.Special machine can be supplied as customer’s request.
5.Professional Advice about Market, machines, processing , materials, packing can be supplied
6. Suggesting professional ship agent or helping book ship as customer request.
After sale service :
1.Allocation chart as the buyer’s request will be supplied.
2.Operation manual will be supplied after shipment.
3.One year warrantee, life time maintenance with cost price.
4.Free easy broken spare parts will be sent with container .
5.First installation can be done by engineer.
6.Training workers in customer’s factory.
If you had any problem, just feel free to contact with us.
Any time, we will reply you as soon as possible!
Customized Service
1. Products
Some of our products can be customized, if you want to know your demand products whether can be customized, just contact with our Salers, they will reply you as soon as they got your message or mail, so if you want to know the products about customize or not, pls do not hesitate to ask.
2. Service
In order to keep the customer can s mooth communication, o ne foreign customer has his or her one-on-one service as soon as the business start,
But if you are not satisfied your one-on-on service, you can contact with our General manager ask for exchange your one-on-one service any time.
