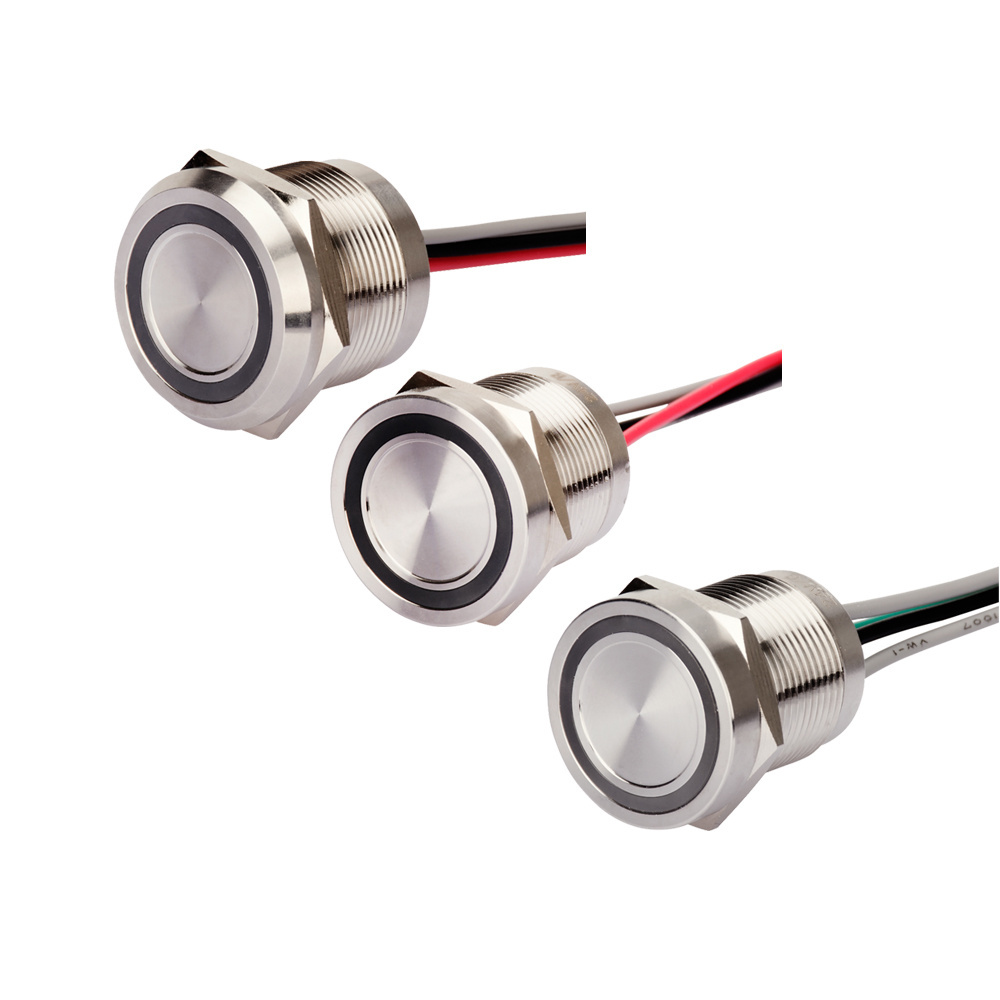

19mm 22mm 25mm 28mm 30mm stainless steel metal waterproof latching piezo switch

19mm 22mm 25mm 28mm 30mm stainless steel metal waterproof latching piezo switch

FOB Reference Price: Get Latest Price

≥1 Pieces

US $9.95

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: China, ZHE

Brand Name:: YUESHUN

Model Number:: YD Latching series

LED:: Bi-color RG, Yes

Mounting Hole:: 19mm-40mm

Keyword:: ip68 push button

LED Voltage:: 3-24V

Material:: Stainless Steel

Certification:: ROHS CE

Operation type:: Latching

Product type:: Touch Dimming Switch

Head shape:: Flat Round Ring Illuminated

Quick Details

Protection Level:: IP68 IP68

Max. Current:: 2A, 12A, 32A

Max. Voltage:: 24V DC

Place of Origin:: China, ZHE

Brand Name:: YUESHUN

Model Number:: YD Latching series

LED:: Bi-color RG, Yes

Mounting Hole:: 19mm-40mm

Keyword:: ip68 push button

LED Voltage:: 3-24V

Material:: Stainless Steel

Certification:: ROHS CE

Operation type:: Latching

Product type:: Touch Dimming Switch

Head shape:: Flat Round Ring Illuminated

19mm 22mm 25mm 28mm 30mm stainless steel metal waterproof latching piezo switch

Quick Description

latching piezo switch

Mounting Size : 16-40 mm; Switch Rating : 500mA , 24VDC IP Class : IP68 Material ：316 Stainess steel

Operating Type : Latching

Operating Principle :
When you touch it,LED Turn Green,Switch ON;
When you Touch Again,LED Turn Red,Switch OFF.

PRODUCT FEATURES
Install Diameter	16-40 mm
Operation Type	Momentary or Latching
Head Shape	Flat Round Head
Terminal Type	2/4 wires of 0.22 square,30mm ( Wire length can be customized.)
Panel Thickness	1-8mm
Pulse Time	customizable

PRODUCT MATERIALS
Body Material	316 Stainess steel
Button Material	316 Stainess steel

LED PARAMETERS
Led Type	Ring Symbol
Led Voltage	3v-24v
Led life	More Than 40,000 hours
Led color	Red Green Blue Yellow White

ELECTRICAL SPECIFICATIONS
Max Switch Rating	500m A / 24V DC
Contact Resistance	≤ 50mΩ
Insulation Resistance	≥ 10000mΩ
Dielectric Strength	2000VAC
Operating Life	More than 200000 cycles

ENVIRONMENTAL SPECIFICATIONS
IP Degree	IP68 IEC529
Operation Temperature	-40℃～ 70℃
Operating Pressure	About 3-5N
Operation Humidity	10%-90%

Why Choose Us

Waterproof ,D ustproof ,V andal Resistant

It is waterproof, dustproof and destruction-proof. It can be used in outdoor harsh environment. Mechanical Life more than 100,0000 times,with long service life.

All our products have passed the CE, CCC, ROHS etc. certifications

Exquisite Workmanship

Our products are of exquisite workmanship,push button's terminal pins are firm in the plastic,integrating with it.The push buttons use 95% silver contacts,with good contactperformance.

High Quality Shell Material

High quality metal shell, durable and strong corrosion resistance, not easy to fade, excellent performance, IP67 protection level are great for all kinds of first level equipments.
