Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SANJING MOT
-
Model Number:
-
H620
-
Torque:
-
8Nm
-
Product Name:
-
BLDC Motor
-
Application:
-
Electric Products
-
Keywords:
-
Long Life Low Noise
-
Motor type:
-
DC Brushless Three Phase
-
Typical Applications:
-
Electric Skateboard
-
Shaft type:
-
Multiple models available
-
Rated Voltage:
-
36~48V
-
Power:
-
1750~3250W
-
Shaft diameter:
-
8/10MM
-
Size:
-
63*74MM
Quick Details
-
Speed(RPM):
-
8000rpm
-
Continuous Current(A):
-
75A
-
Efficiency:
-
Ie 3
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SANJING MOT
-
Model Number:
-
H620
-
Torque:
-
8Nm
-
Product Name:
-
BLDC Motor
-
Application:
-
Electric Products
-
Keywords:
-
Long Life Low Noise
-
Motor type:
-
DC Brushless Three Phase
-
Typical Applications:
-
Electric Skateboard
-
Shaft type:
-
Multiple models available
-
Rated Voltage:
-
36~48V
-
Power:
-
1750~3250W
-
Shaft diameter:
-
8/10MM
-
Size:
-
63*74MM
|

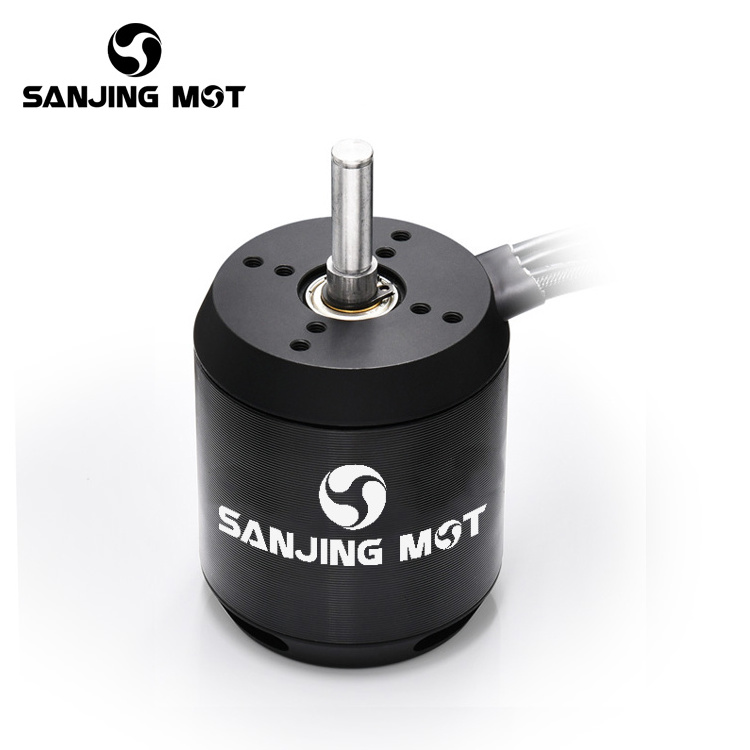

Parameters
|
|
|
||
|
Motor Model
|
H620
|
|
||
|
Maximum Voltage
|
4-12S
|
Maximum voltage limit for high kv value (high speed), high voltage for other cases
|
||
|
Maximum Current
|
75A
|
The actual current will be reduced at high voltage
|
||
|
Maximum Power
|
3250w
|
Lasts only a moment
|
||
|
KV Value
|
190KV
|
Can custom for free
|
||
|
RPM
|
RPM=Operating voltage*KV value
|
|
||
|
No-load Current
|
1.0A
|
|
||
|
Phase resistance
|
0.05Ω
|
|
||
|
Shaft Diameter
|
8mm (0.31inch)
|
Customizable shaft length and shape
|
||
|
Size
|
Ф63*74mm
|
|
||
|
Weight
|
860g
|
|
||
|
Common Applications
|
E-skateboard
|
|
||
|
Recommended ESC
|
100A (we can provide)
|
|
||
|
Recommended RC
|
Waterproof RC (we can provide)
|
|
||
Attention!!!
The above parameters are tested for specific motors at specific voltages and specific KV values, and the data are for reference only. The final data will vary according to the actual voltage and KV in use, and you can consult customer service for professional advice on the specific data. Also, you can send your data requirements to customer service and engineers for professional advice and customization.
Feature:
Shaft: diameter 8mm, length 32mm with keyway
Motor wire: default 12AWG silicone wire with 4.0mm banana head connector male, can customize 5.5mm gold-plated connector
Wire configuration: blue=A, black=B, yellow=C
Stator: 0.2mm Japanese imported silicon steel sheet
Magnet: N42SH high temperature curve magnet
Hall wire: standard RC sensor wire JST-ZH 6pin 1.5mm pitch / 2.0mm 6pin
Internal PCB with 120 degree Hall effect sensor
Motor is suitable for sense and non-sense
Motor connection to VESC requires 6pin adapter cable 2.0 female to 1.5 male ESC sensor wire
Wire configuration: Red=5V, White=Temp, Blue=A, Yellow=C, Green=B, Black=GND
