Quick Details
-
Product name:
-
automatic shoe lasting machine
-
Keywords:
-
shoe lasting machine
-
Max Power:
-
5KW
-
Model:
-
HB-989
-
Machine Dimensions:
-
1060*1670*1820mm
-
Weight:
-
920KG
-
Packing Dimensions:
-
1150*1750*2000mm
-
Case weight:
-
170kg
-
Crate weight:
-
100kg
-
Output per hours:
-
200pairs
Quick Details
-
Applicable Industries:
-
Air-bag sole attaching machine
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HONBO
-
Product name:
-
automatic shoe lasting machine
-
Keywords:
-
shoe lasting machine
-
Max Power:
-
5KW
-
Model:
-
HB-989
-
Machine Dimensions:
-
1060*1670*1820mm
-
Weight:
-
920KG
-
Packing Dimensions:
-
1150*1750*2000mm
-
Case weight:
-
170kg
-
Crate weight:
-
100kg
-
Output per hours:
-
200pairs
|

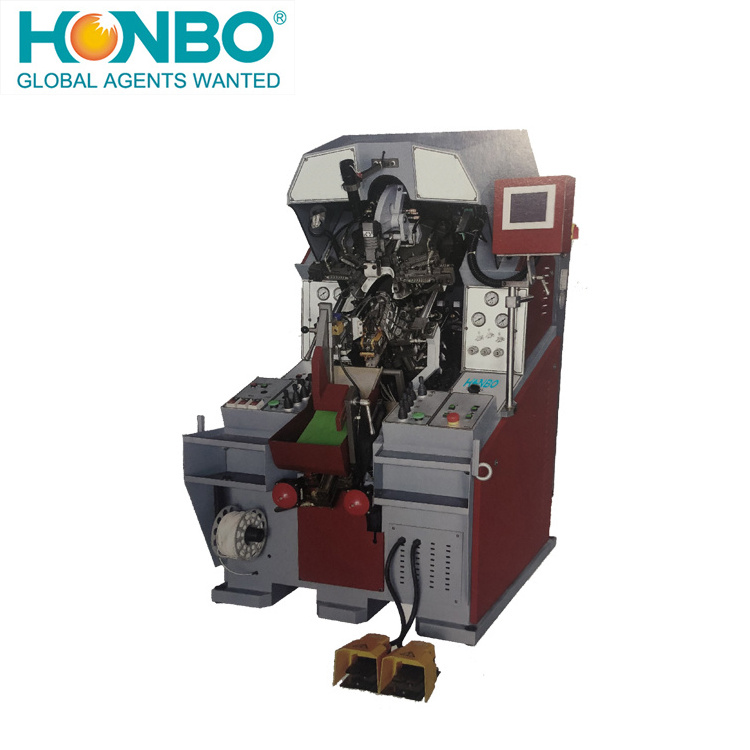

HB-989 High quality Intelligent automatic shoe 9-pincer hydraulic lasting machine |
| Model | LHB-989 |
| Mchine Dimensions | 1060*1670*1820mm |
| Weight | 920KG |
| Packing Dimensions | 1150*1750*2000mm |
| Case weight | 170kg |
| Crate weight | 100kg |
| Output Per Hours | 200pairs |
|
Max Power |
5KW |
Our company reserves the righe for the improvement about this model dimension and the specification,without prior notice.
• Controlled by PLD,able to store 200 types of shoes
• 3 phrases of pincer fixed plate to be adjusted rapidly and put the shoes in order rapidly
• Side lasting function for soft pincer fixed plate,low requirements for the shape of pincer fixed plate,binder and wiper during side lasting
• 7 pincers or 9 pincers are optional,auto-coating device can be selected
• Special system can be selected
• Italian hydraulic system is accurate in the movement and reliable in the distance.
• Keep pressure on the auto-balance system,the side lasting will keep position and the vamp will be tightened
• The function of adjusting the wiper size can reduce exchanges,lower the cost and improve efficiency
• The function of fast exchange of Pincers can cooperate with the binder to fast exchange the wiper and save loads of time
