Quick Details
-
Weight (KG):
-
0.01 KG
-
Product name:
-
Square Grid Diffractive Optical Elements 5mw 658nm Laser Module
-
Wavelength:
-
658nm
-
Output Power:
-
5mw
-
Application:
-
Machine Vision
-
Laser type:
-
Laser Diode
-
Material:
-
Aluminum
-
Beam Type:
-
Customized
-
Operating voltage:
-
12V DC
-
Operating Current:
-
60mA
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Spare Parts Type:
-
Laser Component
-
Brand Name:
-
OEM
-
Weight (KG):
-
0.01 KG
-
Product name:
-
Square Grid Diffractive Optical Elements 5mw 658nm Laser Module
-
Wavelength:
-
658nm
-
Output Power:
-
5mw
-
Application:
-
Machine Vision
-
Laser type:
-
Laser Diode
-
Material:
-
Aluminum
-
Beam Type:
-
Customized
-
Operating voltage:
-
12V DC
-
Operating Current:
-
60mA
What's Diffractive Optical Elements (DOE) Laser Module?
Diffractive Optical Elements (DOE), also known as binary optical elements, are mainly used for laser beam shaping, such as homogenization, collimation, focusing, forming specific patterns, etc. The microstructure design is used to change the phase of the light. Reasonable design of the micro structure of the surface of the optical diffraction element can make the output of any light that conforms to the designed light intensity distribution when the specific light is input. DOE technology realizes many functions and optical operations which are not feasible in traditional optical system.
|
Specification
|
Square Grid 10x10 Lines
|
|
|
|
|
|
|
||||||
|
Optimum Wavelength Range
|
620nm~680nm
|
|
|
|
|
|
|
||||||
|
Design Wavelength
|
658nm
|
|
|
|
|
|
|
||||||
|
Output Power(mW)
|
<150mW
|
|
|
|
|
|
|
||||||
|
Number Of Lines
|
100Lines
|
|
|
|
|
|
|
||||||
|
Substrate Matreial
|
Polycarbonate (PC)
|
|
|
|
|
|
|
||||||
|
Size (φx Thickness)
|
8X1.2mm
|
|
|
|
|
|
|
||||||
|
Recommended Wavelength Range
|
620-680nm
|
|
|
|
|
|
|
||||||
|
Minimun Recommended Beam Diameter
|
2-3mm
|
|
|
|
|
|
|
||||||
|
Operating Temperature
|
-20℃ to 60℃
|
|
|
|
|
|
|
||||||
|
Storage Temperature
|
-45℃ to 85℃
|
|
|
|
|
|
|
||||||

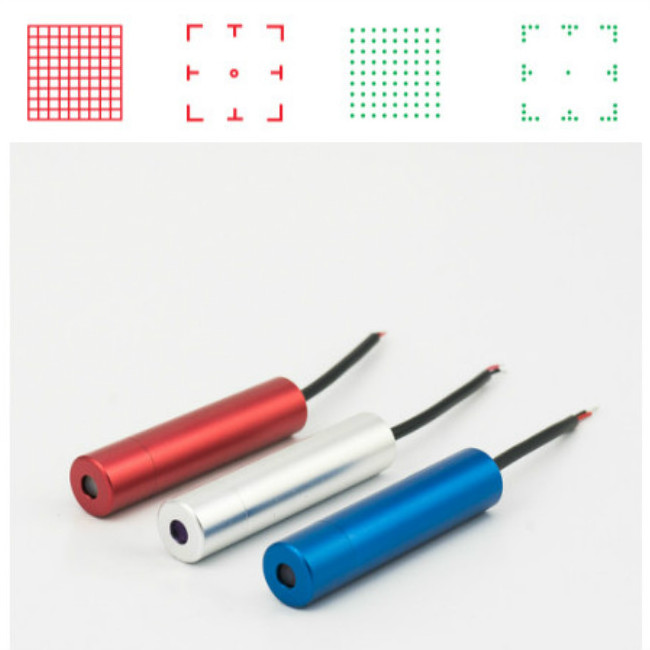

What beam pattern of Diffractive Optical Elements (DOE) Laser Module we can supply?
We offer a variety of laser diode modules and tactical laser shooting accessories. Diffractive Optical Elements (DOEs) to generate structured light using laser diode modules. With different patterns, including multi lines, circle and dot lines, cross hair, circles, squares, grid and random patterns, the DOEs can be integrated with a simple laser dot module to create various beam patterns. For dot matrix, we have 14 types, such as 10 x 10, 11 x 11, 17 x 17, 51 x 51, 101 x 101, etc.; linear matrix can provide 16 types combinations, such as 3 lines, 5 lines, 7 lines, 11 lines to 81 lines, etc.; for the cross array, we provide more than 18 different types of combinations, ranging in length from 8.7mm to 115.5mm.
Product Features：
1.Superior laser beam pattern
2.Easy-to-use: Plug and play
3.Output power: up to 150mW
4.Compact and easy to integrate
5.ESD protection, over-temperature protection, and reverse polarity protection
6.Optional modes
7.Being used in imaging systems,many advantages occur, such as achromatization and thermal compensation besides the features of saving in mass and volume.
Where are the Diffractive Optical Elements (DOE) Laser Modules used?
• Machine Vision
• 3D Scanner
• Industrial Inspection
• Machine Tool Wear
• Biological Instrument
• Logistics Volume
• Measurements
• Structured Lighting
• Stage lighting
