Quick Details
-
Power:
-
36kw
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DIG-DOG
-
Maximum Digging Height:
-
2.3~4.5m
-
Maximum Digging Depth:
-
1.2~2.6m
-
Machine Weight:
-
20000 kg
-
Max Digging Radius:
-
2.4~3.8M
-
Rated Speed:
-
5 km/h
-
Name:
-
Amphibious Excavator
-
Operation Type:
-
Joystick Pilot control
-
Quality:
-
High Level
-
OEM & ODM & LOGO:
-
Available
-
Optional Configuration:
-
Available
-
Certification:
-
CE / ISO
Quick Details
-
Operating Weight:
-
35 Ton, 7TON, 6TON, 2ton, 50 Ton, 4ton, 25 ton, 15 Ton, Other, 9 ton, 8 Ton, 5ton, 45 Ton, 10 TON, 20 Ton, 40 ton
-
Bucket capacity:
-
0.2-1 m3
-
Engine Brand:
-
Doosan
-
Power:
-
36kw
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DIG-DOG
-
Maximum Digging Height:
-
2.3~4.5m
-
Maximum Digging Depth:
-
1.2~2.6m
-
Machine Weight:
-
20000 kg
-
Max Digging Radius:
-
2.4~3.8M
-
Rated Speed:
-
5 km/h
-
Name:
-
Amphibious Excavator
-
Operation Type:
-
Joystick Pilot control
-
Quality:
-
High Level
-
OEM & ODM & LOGO:
-
Available
-
Optional Configuration:
-
Available
-
Certification:
-
CE / ISO
Products Description

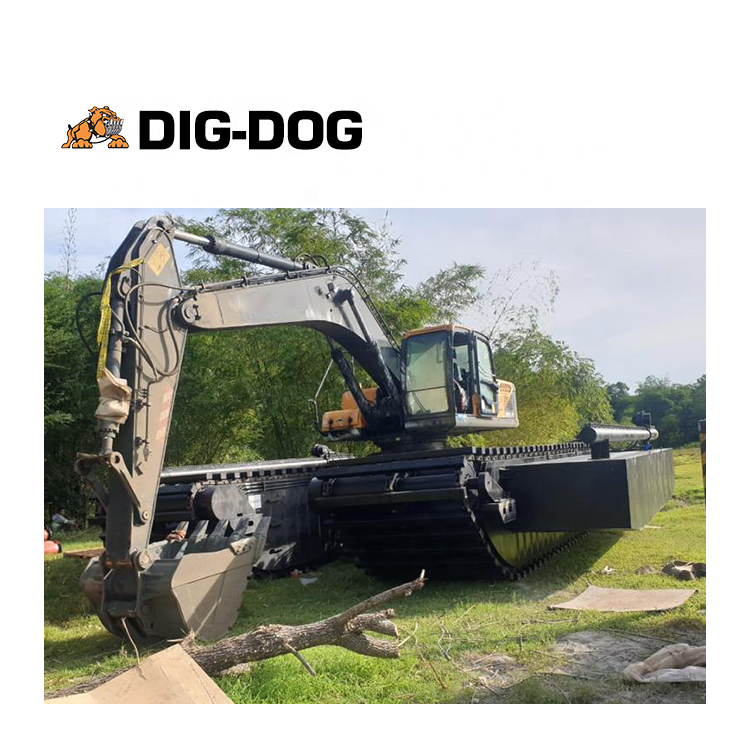

High quality DIG-DOG
AP50
amphibious excavator used with parts for sale
DIG-DOG amphibious excavators are widely used in river dredging, watershed management, wet embankment and other work, on the river, river, lake, sea, beach resources development and environmental remediation operations are of great help. The vehicle is equipped with imported engine and hydraulic system, and the operation efficiency and reliability are higher. Walking device with sealed box, 5 times the conventional excavator grounding area can be adapted to very soft ground, wetlands, swamps. Three rows of walking chains ensure safe and reliable walking in the water.
DIG-DOG's a
mphibious
pontoon adopts a hollow structure to provide enough buoyancy, so that the whole machine floats on the water surface, ensuring that the whole machine can be transferred in deep waters, and can guarantee a maximum working water depth of 14 meters. Convenient. DIG-DOG's
amphibious
pontoon adopts a three-row chain structure to improve the safety of walking in water. The unique structure makes disassembly and assembly more convenient.
Top Features & Benefits
Product Paramenters
|
|
Description
|
DIG-DOG
Amphibious Potoons
|
|
|
|
|
|
|||||
|
|
Models
|
AP30-50
|
AP60-100
|
AP110-150
|
AP160-190
|
AP200-240
|
AP270-300
|
|||||
|
|
|
For 3-5T
excavator
|
For 6-10T
excavator
|
For 11-15T
excavator
|
For 16-19T
excavator
|
For 20-24T
excavator
|
For 27-30T
excavator
|
|||||
|
A
|
Pontoon Grounded Length
|
1000
|
2000
|
2500
|
3500
|
5000
|
6500
|
|||||
|
B
|
Undercarriage Length
|
4000
|
5700
|
6800
|
7500
|
9500
|
10500
|
|||||
|
C
|
Overall Length
|
STD 6050
|
STD 7200
|
STD 10040
|
STD 10040
|
STD 12340
|
STD 15400
|
|||||
|
D
|
Overall Height
|
3500
|
3700
|
3810
|
3950
|
3950
|
4200
|
|||||
|
E
|
Counterweight Ground Clearance
|
1300
|
1400
|
1800
|
1890
|
2010
|
2015
|
|||||
|
F
|
Spuds Height
|
6500
|
6200
|
6300
|
8300
|
8000
|
8300
|
|||||
|
G
|
Overall Width
|
4700
|
5200
|
6300
|
7000
|
6800
|
8000
|
|||||
|
H
|
Pontoon Height
|
1200
|
1340
|
1640
|
1640
|
1840
|
1900
|
|||||
|
I
|
Track Gauge
|
1830
|
1900
|
2500
|
2900
|
3700
|
3300
|
|||||
|
J
|
Overall Width
|
2500
|
3000
|
3800
|
4500
|
5200
|
5000
|
|||||
|
K
|
Pontoon Width
|
620
|
1000
|
1250
|
1250
|
1500
|
1700
|
|||||
|
M
|
Spuds Cross Range
|
6000
|
6000
|
6200
|
5000
|
5600
|
8000
|
|||||
|
N
|
Spuds Width
|
3000
|
3200
|
4000
|
5560
|
5600
|
5200
|
|||||
Details Images
Bolt Tension chain
IMore convenient
to tighten the butter
Adjust the tension of the track.
Butter Tension Chain
Cost-effective bolt tightening.
Later maintenance
costs are lower
Slewing platform
Four high-pressure cut-off valves to prevent hydraulic oil leakage during disassembly
Floating tank -
semi-automatic telescopic
Use the traveling oil circuit
to control the telescoping function
Floating tank -
fully automatic telescopic
In-cab controls are done.
Semi-automatic and fully automatic options
for positioning piles of the pontoon. There are inspection holes inside the pontoon and equipped with travel motors.
Engine
An lmported lsuzu engine that provides powerful performance and low fuel consumption. The overall system is optimised to provide a comprehensive performance upgrade.
Latest fuel filter
The latest fuel filer improves filtration and ensures oil inlet quality, thus improving the reliability of the machine under harsh operating conditions.
An lmported lsuzu engine that provides powerful performance and low fuel consumption. The overall system is optimised to provide a comprehensive performance upgrade.
Latest fuel filter
The latest fuel filer improves filtration and ensures oil inlet quality, thus improving the reliability of the machine under harsh operating conditions.
We only use genuine seanless hydraulic lines and are subjected to pressure testing prior to installation
All steel material is processed by CNC machines to ensure a high level of precision and consistency
Hydraulic piston motor from Doosanor Rexroth
Premium grade flex able hose
Well-experienced and qualified Welder
to ensure the welding quality
Sandblast process creates a unique steel surface texture that provides excellent cohesion
for paint coating
