High Speed Automatic Fish separator Cleaning Machine Crab Meat Extractor Peeling Processing Machine

NTRODUCTION :

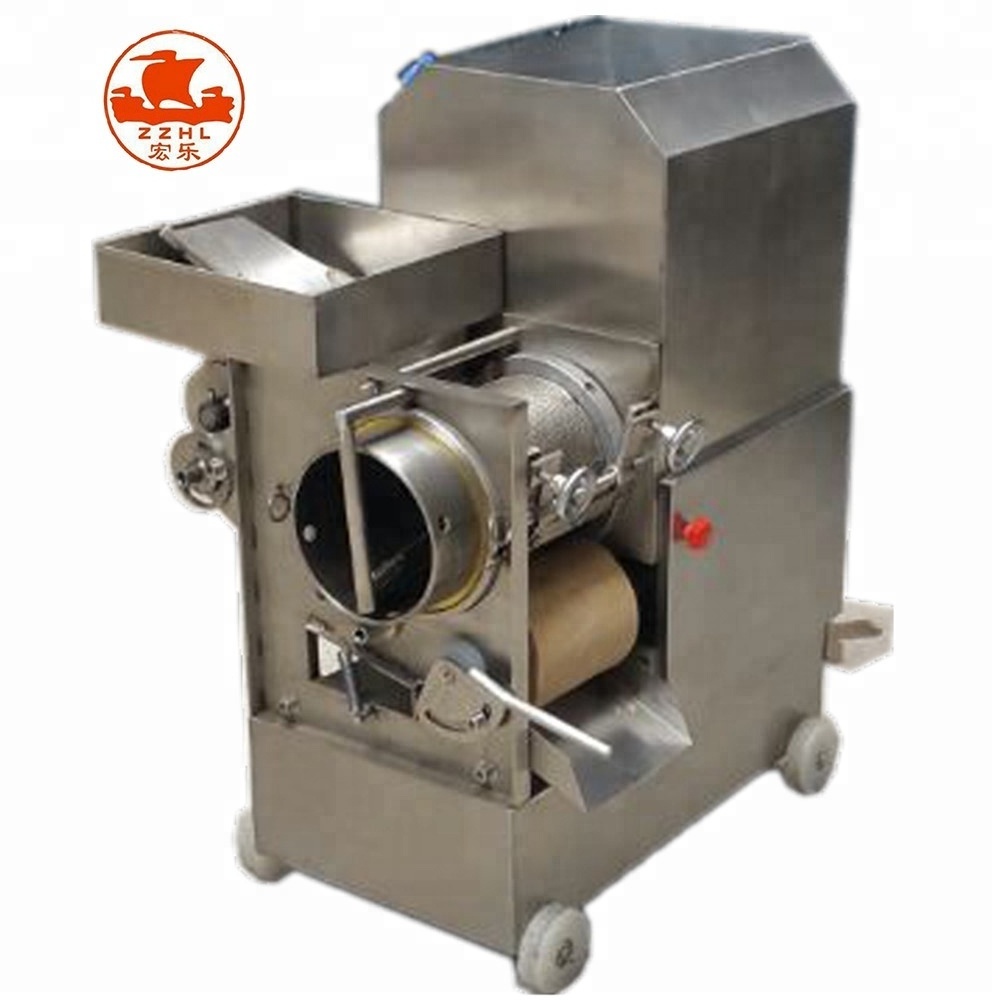

This machine is used for separating fish meat and bone, it is equipped with the food grade rubber belt in mining meat barrels and squeezing meat , sending fish meat into the barrels by mutual squeezing of barrels and transmission of the rubber belt ,fish skin
andbones will be left outside of the barrel, then sent out by the scrapping knife. Stainless steel , hygiene and healthy, fast removing andseparating speed, high capacity, proper for fish meat ball making, fish meat collecting, fish meat patty making, fish
meat food processing, the final fish meat is pure and fresh.
PRODUCT PARAMETERS :
Mainly used to extract the flesh of fish from fish skin and fishbone, separate shrimp meat from shrimp shell. High productivity
but less time and energy. The food touching places are adopted high-quality stainless steel, meeting the requirements of national
food hygienic standards.
WORKING PRINCIPLE:
1. Get rid of fish head and tripe. Big fish, split in half.
2. Put into the water to rinse,avoiding the separated flesh fish being polluted by fish impurities.
3. Put slices of fish meat into the hopper (The division face towards adopting tube, the backside pressed close to rubber belt.).
Fish moves with the rubber belt and goes into crush zone between adopting tube and rubber belt. The fish meat will be squeezed
into adopting tube through its small holes. Then the fish particles will be sent out automatically as adopting tube rotates. Fish
skin, fishbone and other impurities will be scraped in the collecting tank by scraper from the outside of the adopting tube.
During the whole separation process, it is no need to ask people to operate, which makes it convenient and Hygeia. The degree of pressure betweenthe rubber belt and the adopting tube is regulated by a slack adjuster of rubber belt located in the head of the
machine. The adjustment range can be changed flexibly according to the size of fish. The extracted fish meat can serves as the raw materials for fish ball, fish paste, fish sauce, fish pie, fish dumpling stuffing, etc., improving fish economic value.

Parameters:

Standard export carton packing.

3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
