P
rofessional manufacturer of graphite sheet, thermal pad, thermal gel, vapor chamber, die-cutting, graphite molds and ceramic filtration membrane.
www.thermalgraphite.com

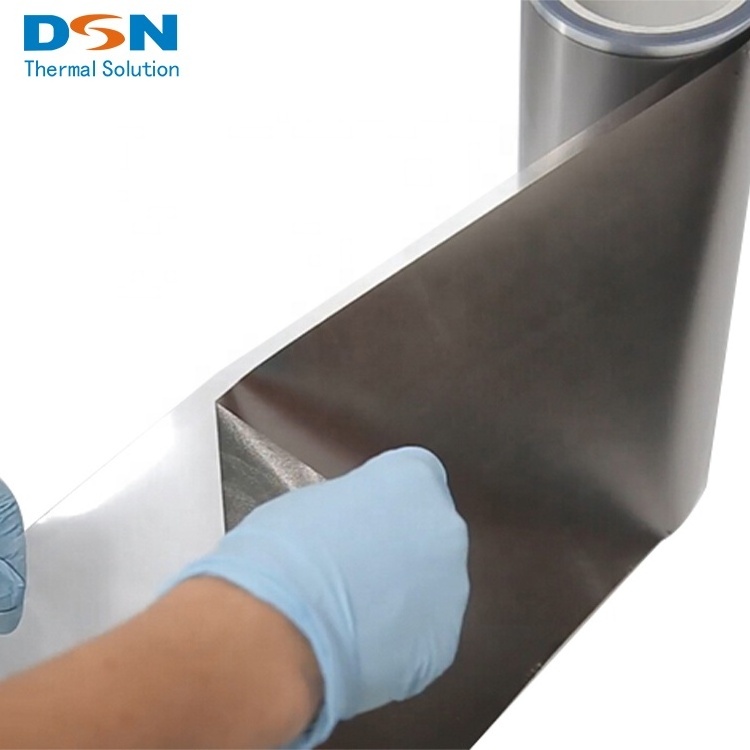

* Excellent thermal conductivity: up to 1950 W/m•K
(2 to 5 times as high as copper, 3 to 8 time as high as aluminum)
* Lightweight: Specific gravity: 1.0 to 2.1 g/cm3
* Flexible and easy to be cut. (Withstands repeated bending)
* Low thermal resistance
* Low heat resistance with flexible graphite sheet
* Low repulsion and easy to keep the product's shape after attaching
* RoHS, REACH compliant
|
Thickness (mm)
|
|
DSN5012
|
DSN5017
|
DSN5025
|
DSN5032
|
DSN5040
|
|
|
|
|
0.012±0.003
|
0.017±0.003
|
0.025±0.003
|
0.032±0.004
|
0.04±0.005
|
|
|
Thermal conductivity
|
X-Y axis
(w/m.k)
|
1700~1900
|
1500~1700
|
1400~1600
|
1300~1500
|
1200~1400
|
|
|
|
Z axis
(w/m.k)
|
10~15
|
10~15
|
12~18
|
12~18
|
18~20
|
|
|
Density (g/cm3)
|
|
2.15±0.1
|
2.12±0.1
|
2.1±0.1
|
2±0.1
|
1.9±0.1
|
|
|
Hardness(shore A)
|
|
85
|
85
|
85
|
85
|
85
|
|
|
Tensile strength (psi)
|
|
650
|
650
|
650
|
650
|
650
|
|
|
Heat resistance
temperature (℃) |
|
400
|
400
|
400
|
400
|
400
|
|
|
Thermal resistance (℃)
|
|
0.15%
|
0.15%
|
0.15%
|
0.15%
|
0.15%
|
|
|
Electric conductivity (s/cm)
|
|
50000
|
50000
|
50000
|
50000
|
50000
|
|
|
Thickness (mm)
|
|
DSN5050
|
DSN5070
|
DSN5100
|
DSN5150
|
DSN5200
|
|
|
|
|
0.05±0.005
|
0.07±0.007
|
0.1±0.01
|
0.15±0.015
|
0.2±0.02
|
|
|
Thermal conductivity
|
X-Y axis
(w/m.k)
|
1100~1300
|
1000~1200
|
800~1000
|
600~800
|
500~700
|
|
|
|
Z axis
(w/m.k)
|
15~22
|
15~22
|
15~22
|
15~22
|
15~22
|
|
|
Density (g/cm3)
|
|
1.85±0.1
|
1.8±0.1
|
1.5±0.1
|
1.1±0.5
|
1±0.1
|
|
|
Hardness(shore A)
|
|
85
|
85
|
85
|
85
|
85
|
|
|
Tensile strength (psi)
|
|
650
|
650
|
650
|
650
|
650
|
|
|
Heat resistance
temperature (℃) |
|
400
|
400
|
400
|
400
|
400
|
|
|
Thermal resistance (℃)
|
|
0.15%
|
0.15%
|
0.15%
|
0.15%
|
0.15%
|
|
|
Electric conductivity (s/cm)
|
|
50000
|
50000
|
50000
|
50000
|
50000
|
|
As electronics get faster, thinner and more powerful, the thermal challenges are more demanding than ever.
The graphite sheet with high thermal conductivity and light weight can provide the best thermal management solution. It is widely used in
smartphones, PC, ultra HD TV, LED lamp, solar energy, battery, VR, new energy vehicles, wireless charging
and other fields.
* Quality policy - The policy aims at satisfying our customer by way of initializing an updated quality management and sticking to the top requirement of "quality first" in an attempt to achieve an elite project finally.
*
Quality objective
- Provide our customer with products in full line with relevant contract and standard by way of strictly conforming to quality control procedure and intensifying avoiding common quality faults to be sure of an effective operation of the quality assurance and quality control system, achieve a zero quality accident rate and realize good project construction quality.
*
Quality Assurance System and Function
- Establish quality assurance and effective quality control system before construction in order to ensure the realization of construction quality objective.
*
Work
- Post Responsibility - Responsibility of Project Manager
Dasen has a research and development team with 2 ph. D. leading more than 20 high-end R & D technicians. Dasen also owns a sound management process and advanced development tools.
We obtained more than 30 invention patents and utility model patent and gained the honor: "scientific and technological innovation enterprises", "Jiangxi Province special new enterprises", "national high-tech enterprises".
DSN adheres to Taiji culture of respecting social and loving people, fulfilling social responsibility, publicizing the environment
and development, and realizing the common growth of society, enterprises and employees.
As Heaven’s movement is ever vigorous, so must a gentleman ceaselessly strive along. DSN will work hard to press ahead and create
new splendor.
Q1: Do you have MOQ?
A1: No MOQ for the standard products.
Q2: Do you provide samples?
A2: Yes, we do, and can delivery in 24 hours after confirmation for stock.
Q3: Are you factory or trading company
?
A3: We are a professional GRAPHITE PRODUCT manufacturer for over 10 years.
Q4: What is the lead time for mass production?
A4: The lead time of mass production is about 7- 10 working days.
Q5: What is your payment method?
A5: Accept TT, Paypal, West Union, L/C, ect.
Q6: Can you provide finished product processing service?
A6: Yes, we can provide the finished product after die-cutting. Accept OEM.
