Quick Details
-
Model Number:
-
LZJ-2010
Quick Details
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LZJ
-
Model Number:
-
LZJ-2010
Product Application

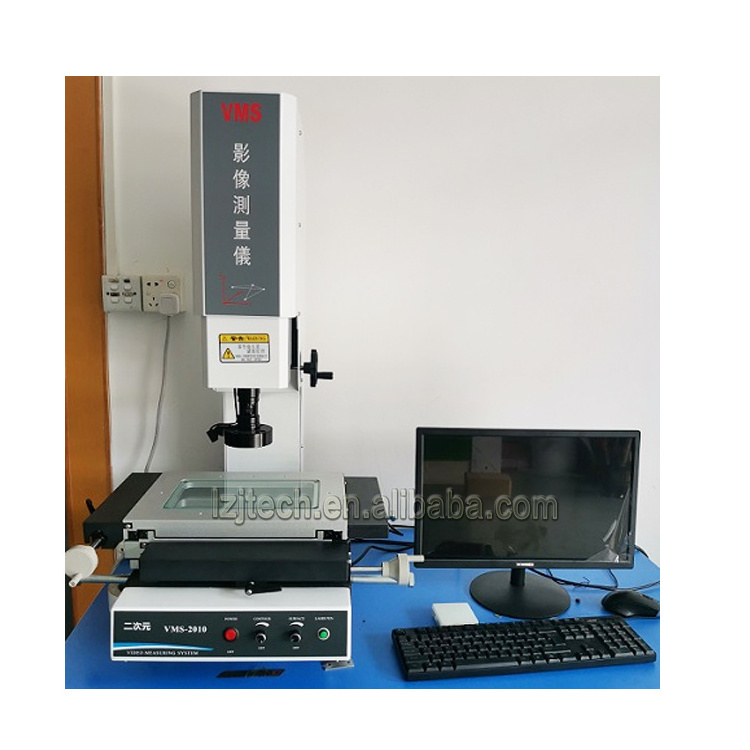

The two-dimensional image measuring instrument adopts a digital measurement method, which converts the shape of the object to be measured into the computer through image acquisition, and uses professional measurement software to measure the size of the object, while the traditional projector measures the object after enlarging it through optical projection;
Specification
|
Model |
LZJ-2010
|
LZJ-
3020
|
LZJ-
4030
|
LZJ-
5040
|
LZJ-
6
0
5
0
|
LZJ-
7
0
6
0
|
|
X/Y stroke (mm) |
200×100 |
300×200 |
400×300 |
500×400 |
600 × 500 |
700 × 600 |
|
Z-axis lift (mm) |
150 |
150 |
150 |
200 |
200 |
2 00 |
|
Glass table(mm) |
260×160 |
360×260 |
460×360 |
560×460 |
6 60 × 5 60 |
7 60 × 6 60 |
|
product structure |
The base, column and mobile table are all made of high-precision granite |
|||||
|
Lighting system |
Both surface light source and transmitted light source use LED, with adjustable brightness |
|||||
|
CCD camera |
1/3″ high-definition color CCD camera (other brands can also be selected as needed) |
|||||
|
Magnification |
Step Zoom optical magnification: 0.7 ~ 4.5X, image magnification: 30 ~ 225 X |
|||||
|
measurement accuracy |
(3+L/200)um |
|||||
|
Resolution |
0.00 1 mm |
|||||
|
Repeatability |
0.002mm |
|||||
|
Operation method |
ZB series is manual operation; ZB -A series is fully automatic operation |
|||||
|
power supply |
220V(AC) / 50HZ |
|||||
|
Recommended environment |
Temperature: 19 ~ 24 ℃ , Humidity: 45% ~ 75% |
|||||
