Quick Details
-
Number of Cells:
-
32
-
Panel Dimensions:
-
480*665*24mm
-
Panel Efficiency:
-
22%
-
No. of cells:
-
32PCS (2 * 16)
-
Cell Size:
-
210*35mm
-
Junction box:
-
IP67 Rated
-
Cable:
-
1.5 meters
-
Connector:
-
MC4 Compatible Connector
-
N.W.:
-
4.5Kgs
-
G.W.:
-
5.6kgs
-
OEM Order:
-
Acceptable
-
Application:
-
Home ,RV , Camping
-
Advantage:
-
lightweight, Easy to install
Quick Details
-
Brand Name:
-
DOKIO
-
Model Number:
-
FFSP-220M
-
Place of Origin:
-
Zhejiang, China
-
Number of Cells:
-
32
-
Panel Dimensions:
-
480*665*24mm
-
Panel Efficiency:
-
22%
-
No. of cells:
-
32PCS (2 * 16)
-
Cell Size:
-
210*35mm
-
Junction box:
-
IP67 Rated
-
Cable:
-
1.5 meters
-
Connector:
-
MC4 Compatible Connector
-
N.W.:
-
4.5Kgs
-
G.W.:
-
5.6kgs
-
OEM Order:
-
Acceptable
-
Application:
-
Home ,RV , Camping
-
Advantage:
-
lightweight, Easy to install
Most of the panels have in stock in our Europe warehouse and American warehouse, we can ship them to you within 3 working after you confirm order!!!
FREE SHIPPING FROM OVERSEA WAREHOUSE!!!
Delivery is not supported in the following areas:
*Spanish island region. The zip code starts with "35" and "38".
remote areas in France, and areas subject to transportation restrictions.
Ukraine supports offline delivery.
Delivery is not supported in the following areas:
*Spanish island region. The zip code starts with "35" and "38".
remote areas in France, and areas subject to transportation restrictions.
Ukraine supports offline delivery.
Recommend Products
All of the following Item have in Stock, Can Click the Link to Purchase, More than 10pcs, Welcome to send me message for
Discount
!
Specification
|
PV Module
|
FFSP-220M
|
|
Rated Power (Pm)
|
220W±3%
|
|
Typical Application
|
12V DC
|
|
Maximum Voltage
|
600V DC
|
|
Operating Temperature
|
45°C
|
|
Hail Diameter @ 80Km/h
|
Up to 25 mm
|
|
Continuous Wind Pressure
|
Up to 24 m/s
|
|
Weight
|
4.5KGS
|
|
Rated Current (Im)
|
11.12A
|
|
Rated Voltage(Vm)
|
18V
|
|
Short Circuit Current(Isc)
|
11.36A
|
|
Open Circuit Voltage(Voc)
|
22.5V
|
Product Description
Package List:

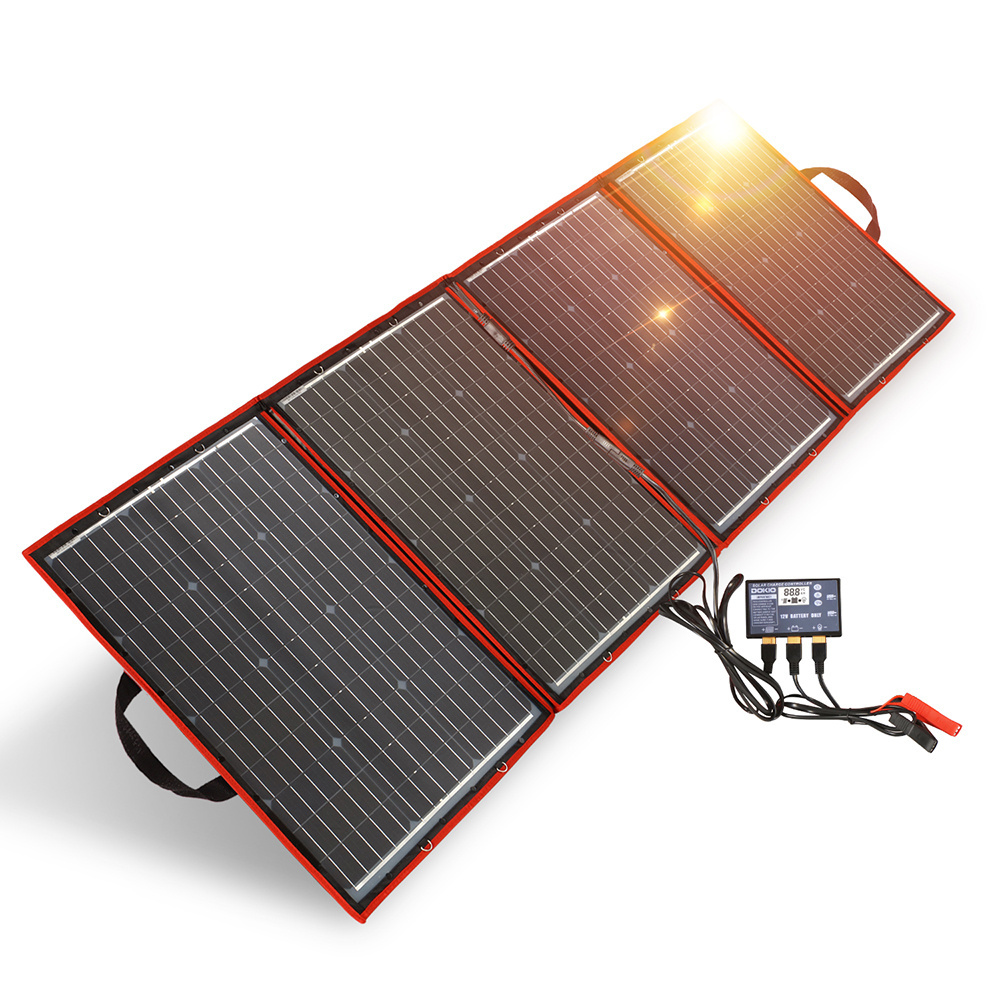

1. 220W Flexible Foldble Solar Panel *1
2. 12V 20A controller *1
2. 12V 20A controller *1
3. 3M cable (SAE to XT60) *1
4. 1M cable with crocodile clips *1
5. 0.4M Cable (JY60 to DC) *1
6. 5 Multifunctional DC adapters *1
7. User's Manual *1
2. High efficiency with quality silicon materials for long term output stability.
3. Foldable design, lightweight,portable and space saving,suitable for camping, hiking,and can be used as a backup power source for mobile phones and car batteries.
4. The controller uses USB connection, which can reduce the current consumption and guarantee the power.
5. The surface materials, which has the characteristics of corrosion resistance, high temperature resistance, high stain resistance and high light transmittance etc.
3. Foldable design, lightweight,portable and space saving,suitable for camping, hiking,and can be used as a backup power source for mobile phones and car batteries.
4. The controller uses USB connection, which can reduce the current consumption and guarantee the power.
5. The surface materials, which has the characteristics of corrosion resistance, high temperature resistance, high stain resistance and high light transmittance etc.
